Kinugawa Turbocharger 4D56T 2.5L Pajero Delica TD04-13T w/ Actuator extra 30% Tq

Mitsubishi 4D56T / 2.5L Pajero / Delica Upgrade Turbocharger

Kinugawa TD04-13T Turbo with Actuator

Item Name

 Kinugawa TD04-13T Upgrade 4D56T / 2.5L  Delica Turbocharger with actuator

P/N.

 0100-810-132 (301-02034-007)

Application

-       Upgrade Mitsubishi 4D56T / 2.5L Pajero, Delica, Shogun,L200, L300 stock TF035 TD04 turbo with smaller turbo to 13T monster turbo.

-       This turbo comes with actuator hooked on cover directly to prevent air leaking through flapper.

-       Get extra 30~50% torque and HP.

Replaced Turbo

49177-015xx turbocharger with 3 bolt turbine Outlet

Installation

Bolt-On turbo to replace stock Mitsubishi Turbocharger.

CHRA Size:

-       TD04-13T

-        Compressor wheel : 40.3/56 mm (13T / Stock SUBARU WRX wheel)

-       Turbine Wheel: 40/47.2 ( Stock TD04 )

Turbine

Housing AR

4cm / A/R .25 Turbine Housing

Bearing Type

Journal Bearing

Cooling Type

- Oil and Water-Cooled

- This turbo can still work well without

  water as some of stock oil-cooled

  turbocharger.

Actuator

Pressure

-       0.6Bar Actuator with go with box if buyer doesn’t contact us to change actuator.

-       0.5bar, 0.8Bar, 1.0Bar, and 1.2 bar actuator is available, please contact us if you need to boost higher.

Extra parts

-       1 x Oil Feed Line Kit

-       2 x Water Line Kit

-       1 x Oil Return Pipe Kit

-       2 x Turbine Outlet Gasket

-       Tee Fitting with vacuum hose

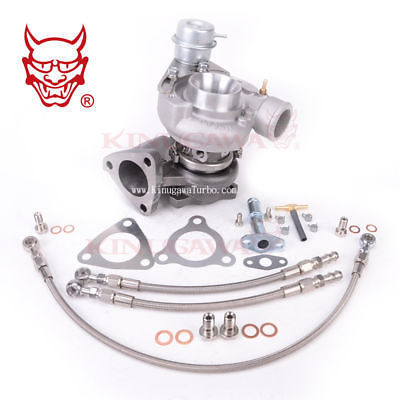

Everything on picture is included.

Made By

 Kinugawa Turbo Japan.

Warranty

-       One Year Warranty

-       Life time service
