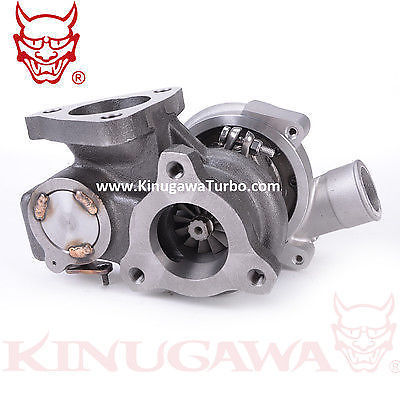

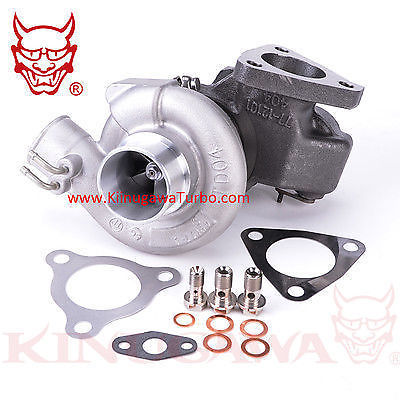

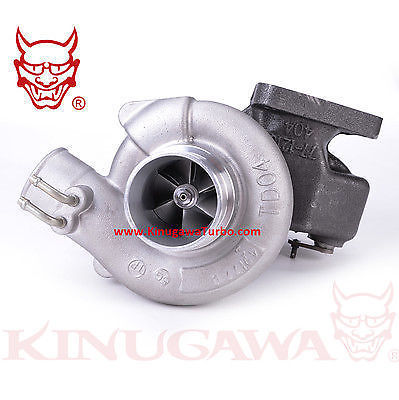

Kinugawa Turbocharger 4D56T 2.5L Pajero Delica Triton TD04-15T Oil-Cooled

Kinugawa Mitsubishi 4D56T TD04-15T Oil-Cooled Turbocharger

L200 / L300 / L400 / Pajero / Montero / Delica / Triton

PART NO.

301-02034-078

Item Name

Kinugawa Mitsubishi 4D56T L200 / L300 / L400 / Pajero / Montero / Delica / Triton TD04-15T Oil-Cooled Turbocharger with 3 bolt outlet Flange

Application

This oil-cooled turbocharger can replace 49177-

01500, 49177-01501, 49177-01510, 49177-01511

TD04-9B oil-cooled turbocharger.

Product Situation

      Brand New.

      Complete core was test and balanced on Schecnk MBRS 110 to make sure it works well and ready to boost.

CHRA

-  Compressor wheel : 41.9/55.7 mm ( 15T )

-  Turbine Wheel : 40/47.1 mm (TD04)

Bearing system

Cooling System

Oil-Cooled

Turbine Housing

4cm

Made by

Kinugawa Turbo

Warranty

One Year
