Kinugawa Turbocharger 4" Inlet TD06H-20G T3 / 10cm / V-Band / Non Anti Surge

Kinugawa TD06H-20G Turbocharger

(4” Non Anti-Surge Cover / 8cm T3 Turbine Housing)

Item Name

Kinugawa TD06H-20G Turbocharger with 4” Non Anti Surge Cover and T3 / 10cm / V-Band Turbine Housing

P/N.

301-02001-387

Application

-       Universal Type

-       1800~3000cc

Wheel spec

-       Compressor wheel: 52.5 / 68mm (20G Wheel)

-       Turbine wheel: 58.8/67 mm (TD06H / 11 Blades)

Turbine Housing

AR

10cm / AR73 T3 Flanged V-Band turbine housing

Bearing Type

-       Journal Bearing

-       KAMAK Performance Thrust Bearing Kit

Cooling Type

-       Water-Cooled

Max Hp

400~600 BHP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

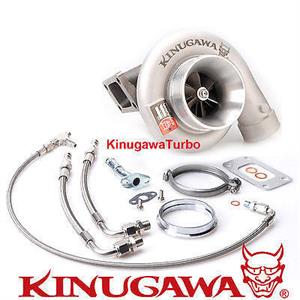

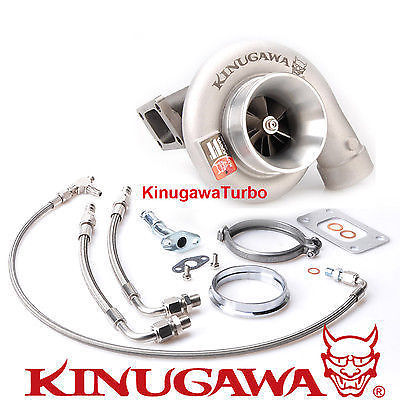

Kit Includes

1 x Oil feed line kit ( 100cm Braided Line )

1 x Oil Return Pipe Kit

1 x Turbine Gasket Inlet Gasket

1 x V-Band Flange Kit

2 x 24cm 6AN Water Line Kit

Made By

Kinugawa Turbo

Warranty

One Year
