Kinugawa Turbocharger 4M40T Pajero Triton TF035HM-12T / 49135-03110
|
* Whole number only
|
|
|
Product Information
|
|
Item Name
|

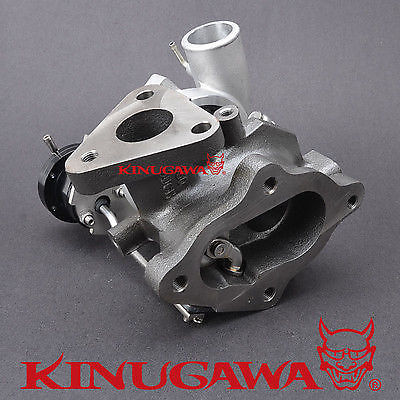

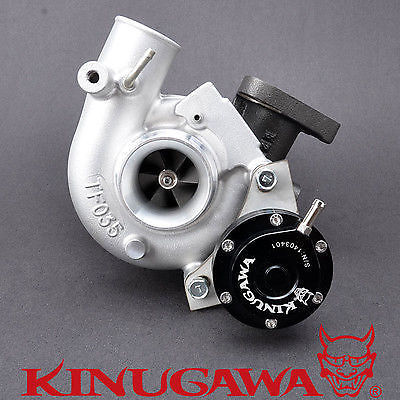

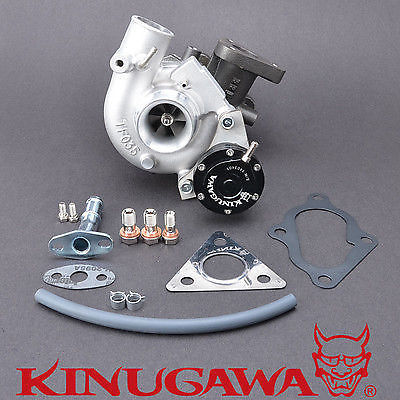

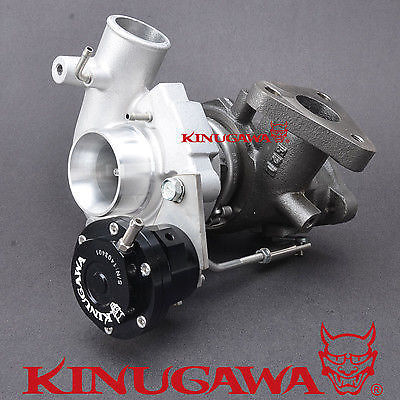

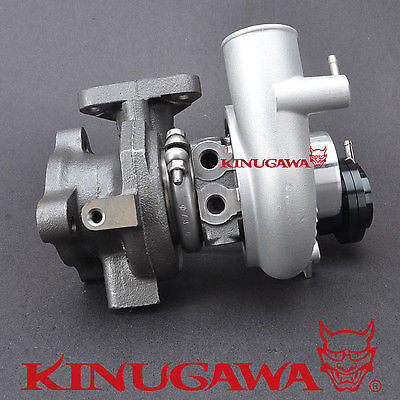

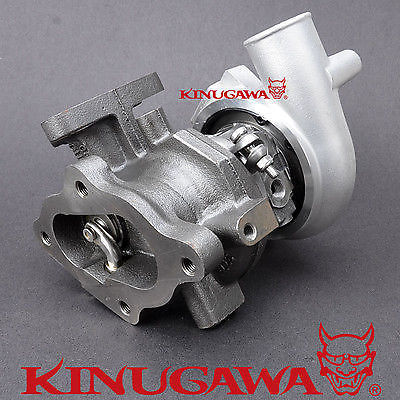

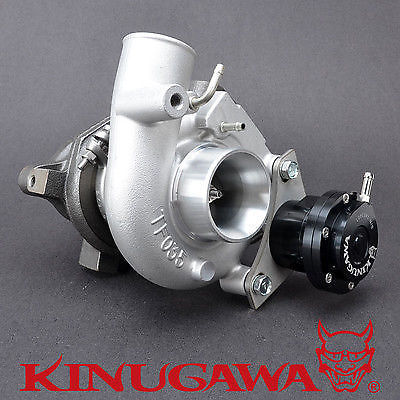

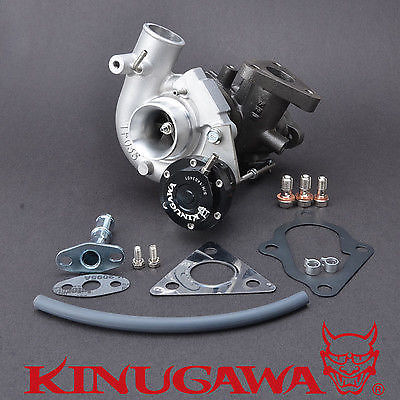

Kinugawa 4M40T 2.8L Triton Turbo TF035HM-12T Turbocharger
|
|
P/N.
|
|
|
Application
|
Mitsubishi 4M40T / 2.8L Pajero, Delica, Shogun
|
|
Replace Turbo
|
49135-03010, 49135-03110, 49135-03112, 49135-03120, 49135-03130.
|
|
Installation
|
Bolt-On Turbo
|
|
CHRA Size:
|
- TF035HM-12T
- Compressor Wheel : 37.8 / 49 mm
- Turbine Wheel : 42.5 / 35 mm
|
|
Turbine
Housing AR
|
Mitsubishi 5cm Turbine Housing
|
|
Bearing Type
|
Journal Bearing
|
|
Cooling Type
|
Oil and Water-Cooled
|
|
Actuator
Pressure
|
1Bar / 14~15 psi
|
|
Product
Situation
|
Brand New In Box
|
|
Made By
|
Kinugawa Turbo
|
|
Warranty
|
One Year
|
|
|
|
|
