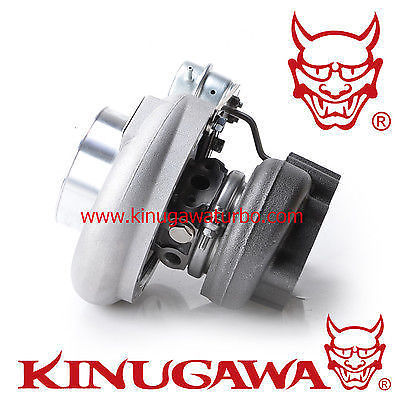

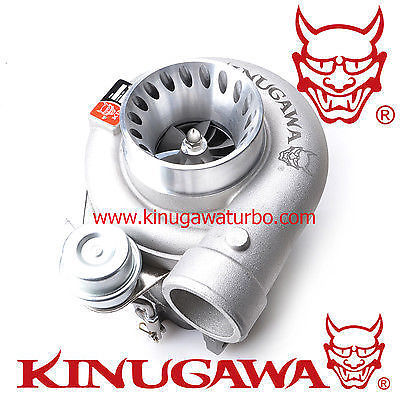

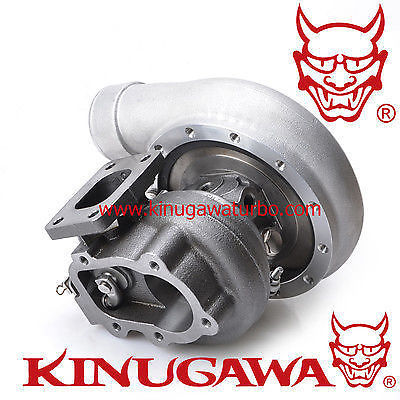

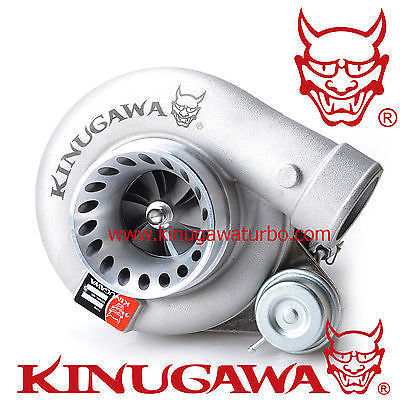

Kinugawa Turbocharger 4" TD06H-25G T25/8cm/ 5 bolt Internal w/ Billet Actuator

Kinugawa TD06H-25G Turbocharger with

4” Anti-Surge Cover / T25 Flanged 8cm Turbine Housing / Billet Adjustable Actuator

Item Name

Kinugawa TD06H-25G Turbocharger with 4” Anti-surge Cover and 8cm/V-Band/T25 Internal Gate Turbine Housing

P/N.

301-02001-104

Application

-       Universal Type

-       1800~2500cc

CHRA Size:

-       TD06H-25G

Wheel spec

Compressor wheel: 60.5 / 78 mm (25G)

Turbine wheel: 58.8 / 67.2 mm (TD06H4 / 11 Blades Inconel Wheel)

Compressor

Housing

AR70 / 4” Inlet

Turbine Housing

AR

8cm / T25 Internal Gate External Gated Turbine Housing

Bearing Type

-       Journal Bearing

-       -KAMAK Performance Thrust Bearing Kit

Cooling Type

-       Oil and Water-Cooled

Max Hp

350~500HP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Actuator Pressure

-       1.0bar spring will go with this actuator.

-       We sell 0.5bar, 0.8bar, 1.0bar, 1.3bar, 1.5bar, 1.8bar and 2.0bar spring if you need it. Please contact us or purchase it on our ebay shop.

Product

Situation

Brand New

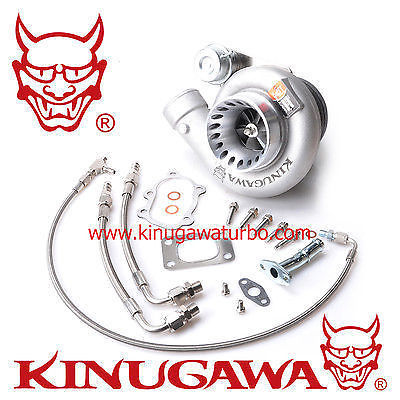

Kit Includes

1 x Oil feed line kit ( 70cm Braided Line )

2 x 24cm / 6AN Water Line Kit

1 x Oil drain pipe kit

1 x T25 Turbine Inlet Gasket

1 x T25 Turbine Outlet Gasket

2 x 20cm 6AN Water Line Kit

(Everything shown on picture included)

Upgraded By

Kinugawa Turbo

Warranty

One Year
