Kinugawa Turbocharger 92-00 Greddys Honda Civic TD04HL-19T w/ Billet Actuator

 Kinugawa Mitubishi TD04HL-19T Turbocharger

with 6 cm^2 Turbine Housing

P/N

 0100-814-096 (301-02001-014)

Item Name

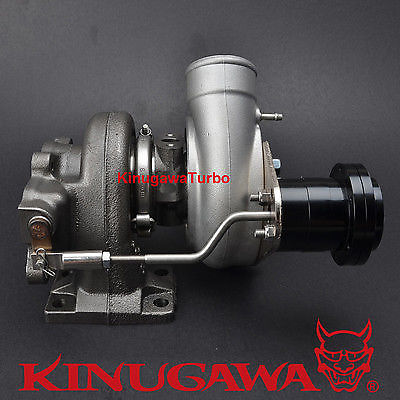

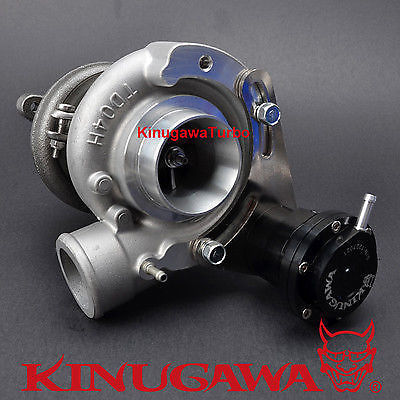

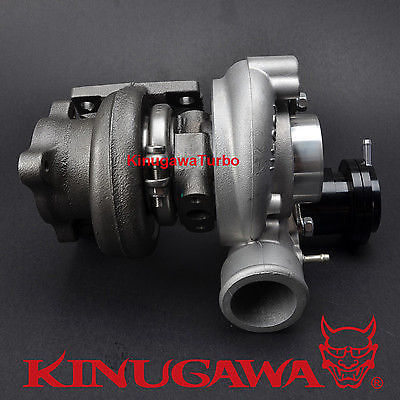

Kinugawa TD04HL-19T Turbocharger with 6cm T25 Turbine housing and Adjustable Billet Actuator.

Product Situation

Brand New

Wheel Spec

- Compressor wheel : 46 / 58

  mm (TD04-19T)

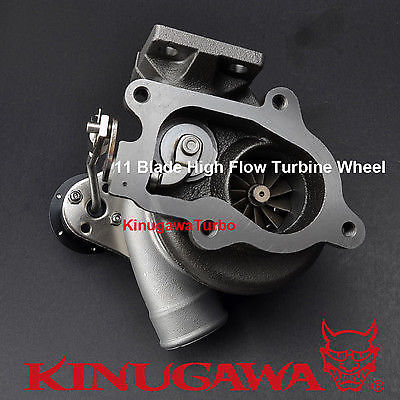

-Turbine Wheel: 45.6 / 52 mm ( TD04HL / 11 Blade High Flow Type)

Turbine

Housing

-  Nozzle Area : 6 cm^2

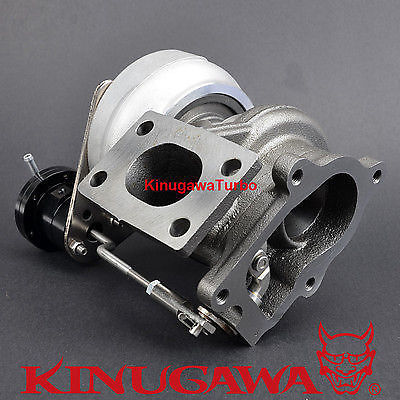

- Turbine Inlet : T25

Application

- 1.5~2L engine / 250~ 300 BHP

- 92~95 Greddy Honda Civic 1.6L

  VTEC Turbo Kit ( Replace TD04H-15G-8.5 turbo directly)

- 96~00 EX Greddy Honda Civic TD04HL-19T Turbo Kit

Bearing/Cooling

system

Journal Bearing / Performance Thrust Bearing Kit / oil-cooled Type

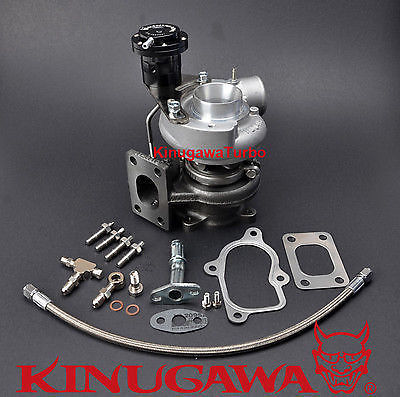

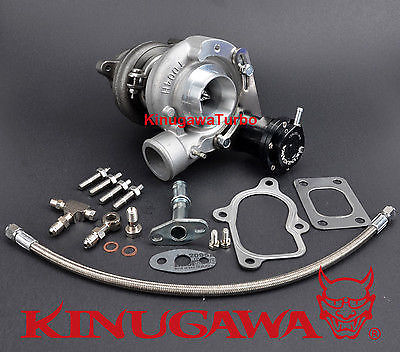

Kit Includes

- Kinugawa TD04HL-19T-6

  Turbocharger with 0.5bar adjustable

  actuator.

- 1 x 70cm 4AN Turbo Oil Feed Line Kit

- 1 x Turbo Oil Return Pipe Kit

- 4 x Stud Kit

- 2 x Stainless Steel Turbine Gasket

Warranty

One Year
