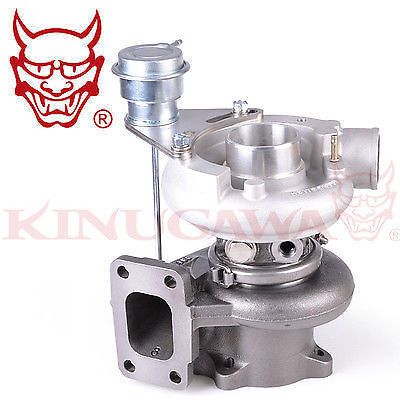

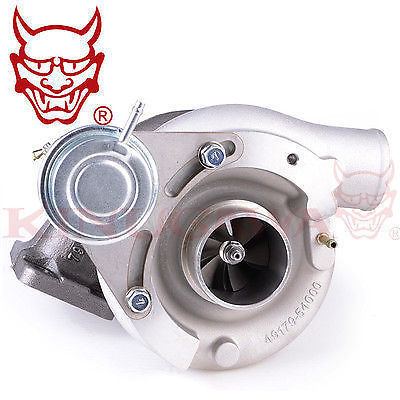

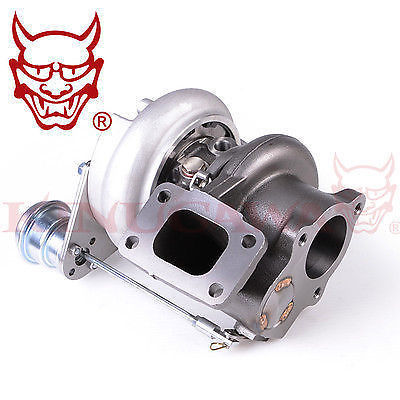

Kinugawa Turbocharger GMC Syclone Typhoon 4.3L TD06-17C 8cm Stock

Kinugawa GMC Syclone / Typhoon 4.3L Turbocharger

TD06-17C with 8cm Turbine Housing

Item Name

Kinugaw GMC Syclone / Typhoon TD06-17C Turbocharger

P/N.

 301-02055-005

Application

-       GMC Syclone / Typhoon 4.3L LB4 V6

CHRA Size:

-       TD06-17C

Wheel spec

Compressor wheel: 48.5 / 68 mm (Stock Size)

Turbine wheel: 55 / 65 mm (STD TD06 / 12 Blades of Inconel Wheel)

Turbine Housing

-       8cm / AR 57

-       T3 Inlet Flange

-       Internal Gate

Bearing Type

-       Journal Bearing

-       KAMAK Performance Thrust Bearing Kit

Cooling Type

-       Water-Cooled

Watergate Actuator

-       1.0 Bar / 15 psi

-       0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available, please contact us if you need it.

-       Actuator position can be 360 Deg moved easily.

Max Hp

300~450HP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

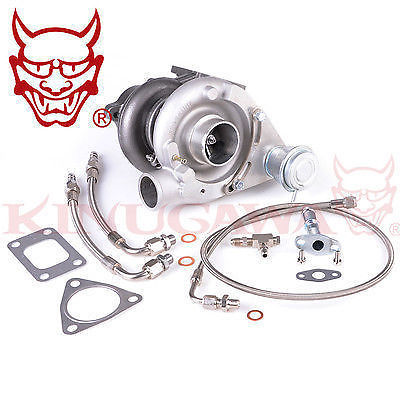

Kit Includes

1 x Oil feed line kit

1 x Oil drain pipe kit

2 x Coolant line Kit

2 x Turbine Gasket ( Inlet + Outlet )

Upgraded By

Kinugawa Turbo, Japan

Warranty

One Year
