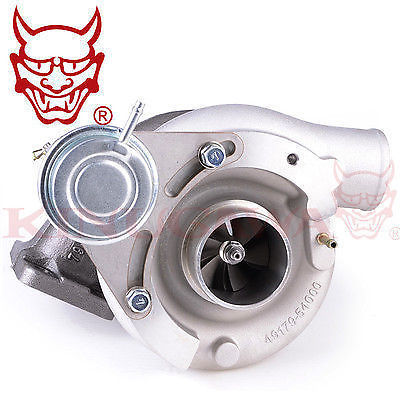

Kinugawa Turbocharger GMC Syclone Typhoon 4.3L TD06H-20G 8cm w/ good Top End

Kinugawa Upgraded GMC Syclone / Typhoon 4.3L Turbocharger

TD06H-20G / 8cm Turbine Housing

Item Name

Kinugawa Upgraded GMC Syclone / Typhoon TD06H-20G Turbocharger

P/N.

 301-02055-010

Application

GMC Syclone / Typhoon 4.3L LB4 V4

CHRA Size:

-       TD06H-20G

Wheel spec

Compressor wheel: 52.5 / 68 mm (20G Wheel)

Turbine wheel: 58.8 / 67.2 mm (TD06H / 11 Blades of Inconel Wheel)

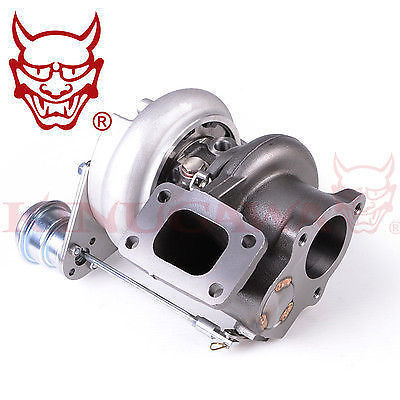

Turbine Housing

-       8cm / AR 57

-       T3 Inlet Flange

-       Internal Gate

Bearing Type

-       Journal Bearing

-       KAMAK Performance Thrust Bearing Kit

Cooling Type

-       Water-Cooled

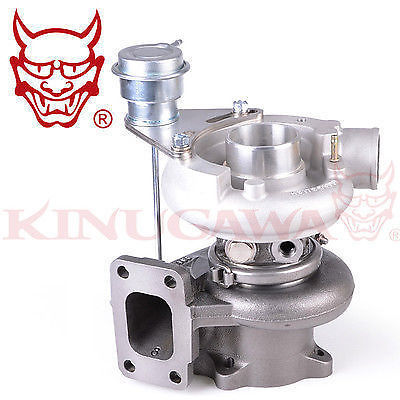

Watergate Actuator

-       1.0 Bar / 15 psi

-       0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available, please contact us if you need it.

-       Actuator position can be 360 Deg moved easily.

Max Hp

300~450HP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

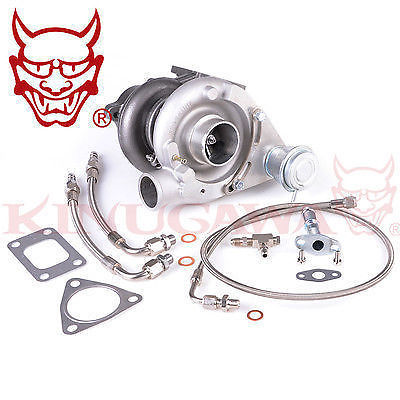

Kit Includes

1 x Oil feed line kit ( 104cm Braided Line )

1 x Oil drain pipe kit

2 x Coolant line Kit

2 x Turbine Gasket ( Inlet + Outlet )

1 x V-Band Adapter

Upgraded By

Kinugawa Turbo, Japan

Warranty

One Year
