Kinugawa Turbocharger KUBOTA V3800 A47G-T TD04HL-13GK 49189-00910 / 49189-00920

Kinugawa KUBOTA A47G-T TD04HL-13GK

49189-00910 / 49189-00920 Turbocharger

Item Name

Kinugawa Mitsubishi 49189-00910 / 49189-00920 TD04H Turbocharger

Kando_Dynamic P/N.

301-02057-001

MHI P/N

49189-00910/49189-00920

Kubota P/N

1G544-17012 / 1G574-17012

Application

Kubota V3800 DI-T A47G-T

CHRA Size:

Compressor wheel : 42/56 ( 15T)

Turbine Wheel: 45.6/52

Bearing Type

Journal Bearing

Cooling

Type

Oil-Cooled

Actuator

0.7bar

Detail

-       1 x Turbocharger

-       1 x turbine inlet gasket

-       1 x turbine outlet gasket

-       1 x oil feed washer

-       1 x oil return gasket

-       1 x vacuum hose with two clamp

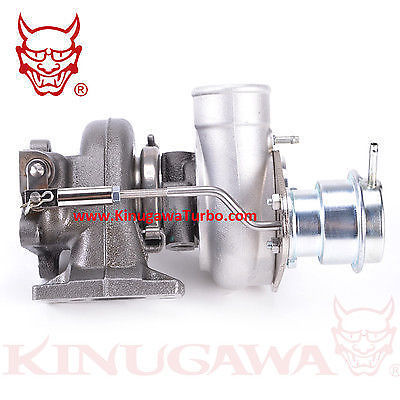

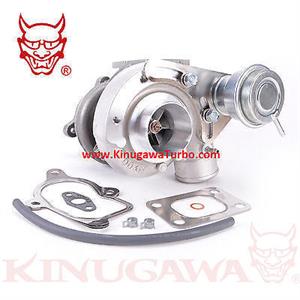

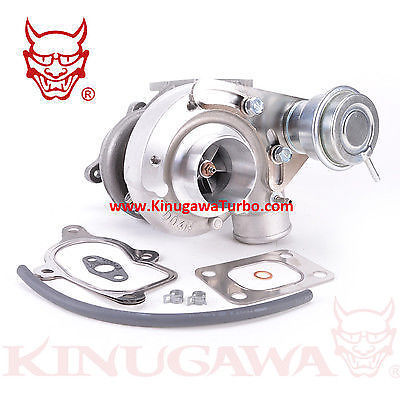

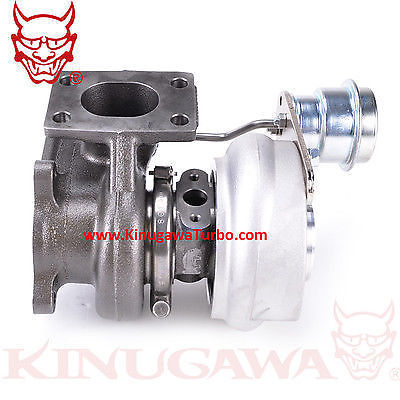

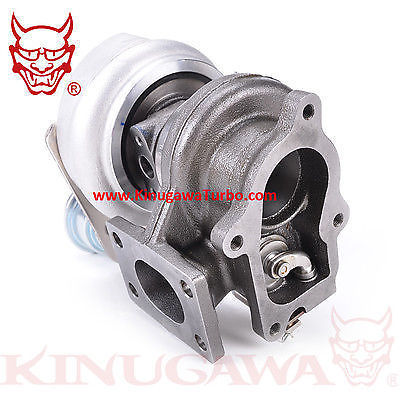

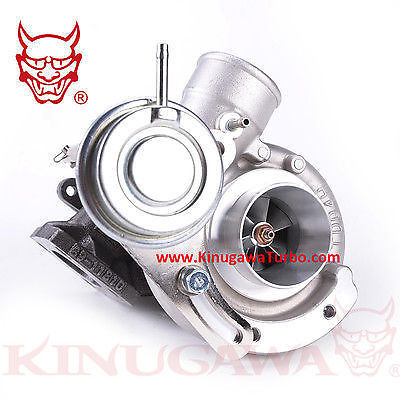

(Everything shown on picture is included)

Made By

Kinugawa Turbo

Warranty

One Year
