Kinugawa Turbocharger KUBOTA V4702 / M105D V3800 Upgrade TD05H-17C / 8cm T3 Hsg
|
* Whole number only
|
|
|
Kinugawa Upgrade KUBOTA V4702 / M105D V3800 Turbocharger
( TD05H-17C / EXTRA 30% Torque and HP)
|
|
PART NO.
|
|
|
Item Name
|

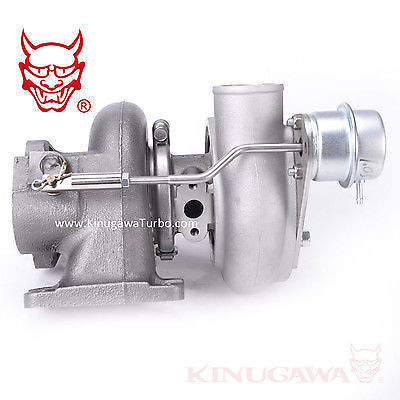

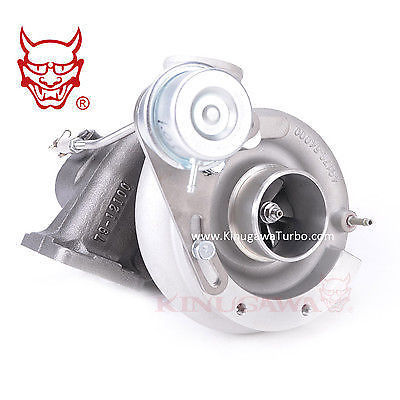

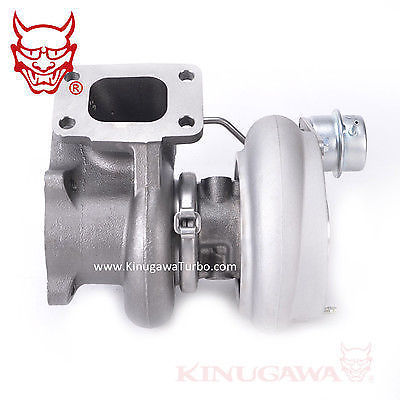

Kinugawa KUBOTA V4702 / M105D V3800 Upgrade TD05H-17C Turbocharger
|
|
Product
Situation
|
- Brand New
|
|
Application
|
- KUBOTA V4702 Engine with 49178-03200 TD05H-12G turbocharger.
- KUBOTA M105D V3800 with 49178-03210 TD05H-16G turbocharger..
|
|
CHRA Spec
|
- Compressor wheel : 48.5 / 68 mm (TD06-17C)
- Turbine wheel : 49.2 / 56 mm (TD05H)
|
|
Compressor
Housing
|
- A/R 60
- Cover Inlet Dia. : 60mm / 2.4”
- Cover Outlet Dia : 50mm / 2”
|
|

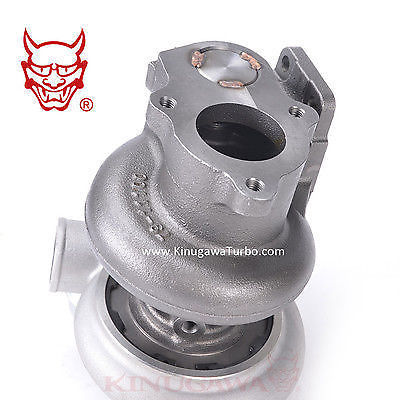

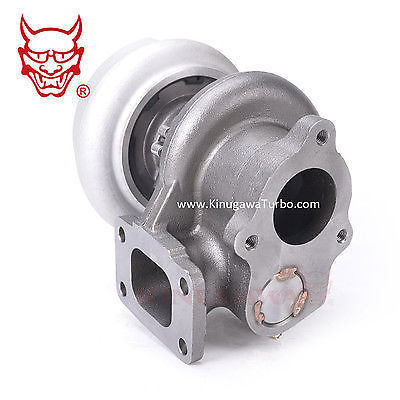

Turbine Housing
|
- 8cm ( A/R 61 )
|
|
Bearing system
|
- Journal Bearing
- Performance Thrust Bearing Kit installed.
|
|
Balance
|
- Complete core balanced on SCHENCK MBRS 110 to make sure it would work well.
|
|
Cooling System
|
- Oil-Cooled system
|
|
Actuator
|
- 0.5 bar / 8 Psi actuator will go with turbo if buyer doesn’t contact us to change it.
- 0.5bar, 0.8bar, 1.0bar, 1.2 bar, 1.5 bar actuator is available in Kando_Dynamic warehouse. Please contact us if you need to change it.
|
|
Install Kit
|

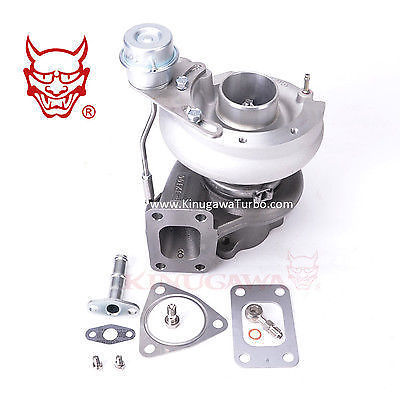

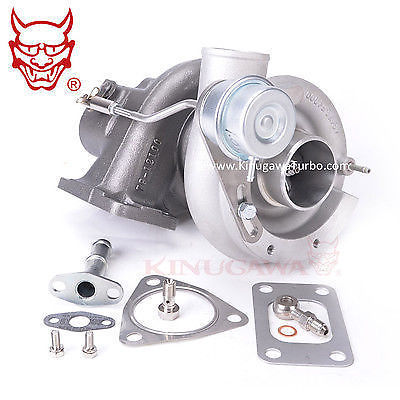

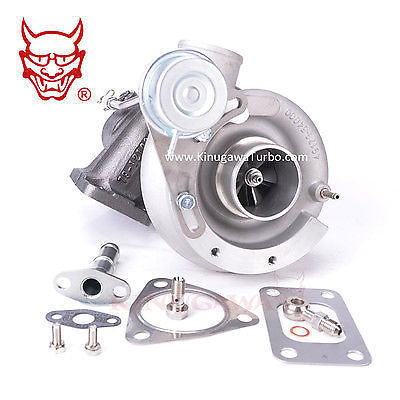

Everything on picture is included.
|
|
Made By
|
Kinugawa Turbo
|
|
Warranty
|
- One Year Warranty
- Life time service
|
|
|
|
|
