Kinugawa Turbocharger Misubishi 4D56T 2.5 TD04-13T + 30% Tq Oil & Water-Cooled

Kinugawa Mitsubishi 4D56T 2.5L Diesel TD04-13T Upgrade Turbocharger ( 5 bolt Turbine Outlet )

P/N

 0100-810-131 (301-02034-008)

Item Name

Kinugawa 4D56T / 2.5L Diesel Upgrade TD04-13T Turbocharger

Application

l   4D56T 2.5L diesel Colt, Delica, L200, L300, L400, Pajero, Montero, Space Gear.

l   Upgrade all 4D56T turbocharger with 5 bolt turbine outlet turbo to TD04-13T size with extra 30% torque and HP.

l   This upgrade turbo comes with 1 bar actuator.

Wheel Spec

l   Comp. wheel : 40.3/56 mm ( SUBARU 13T WRX Wheel)

l   Turbine Wheel: 40/47mm ( STD TD04 )

Turbo Situation

l   Complete CHRA was balanced on Schenck 110.

l   1 Bar/15Psi actuator.

l   Bolt-On Turbo.

l   Turbo is ready to work.

Bearing/Cooling

system

Journal Bearing / Oil & Water cooled

Turbine Housing

4cm

Maximum Boost

-       2.5 Bar

Suggest Boost

-       1.5 bar

Wastegate

Actuator

-       1 bar / 14.7 Psi Spring is installed on this actuator.

-       0.3bar, 0.5bar, 0.8bar, 1.0bar, 1.2bar, 1.5 bar and 1.8bar spring is abailable on our ebay shop.

Kit includes

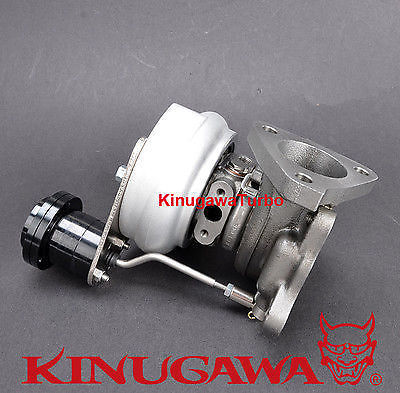

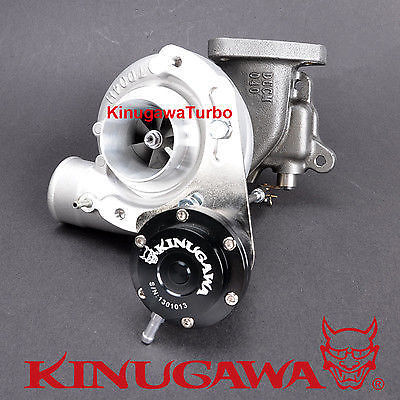

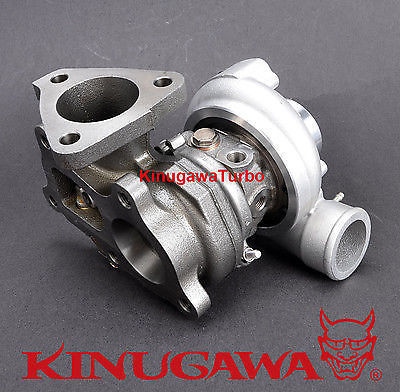

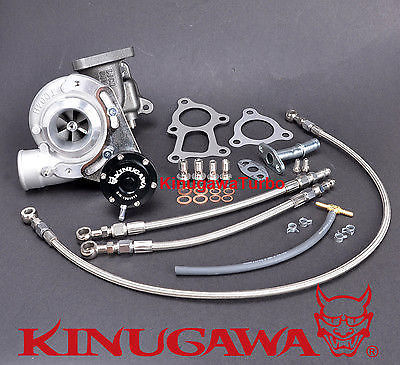

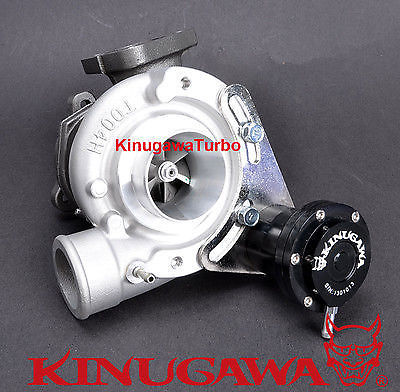

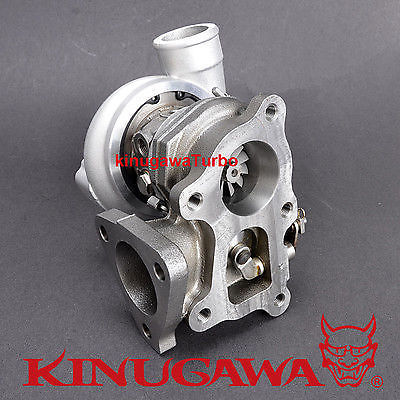

Everything shown on picture is included.

Upgrader

Kinugawa Turbo

Warranty

One Year
