Kinugawa Turbocharger Mitsubishi 4D56T Pajero L200 Oil-Cool 49177-02510 11G 12T

Product Information

PART NO.

 301-02034-006

Item Name

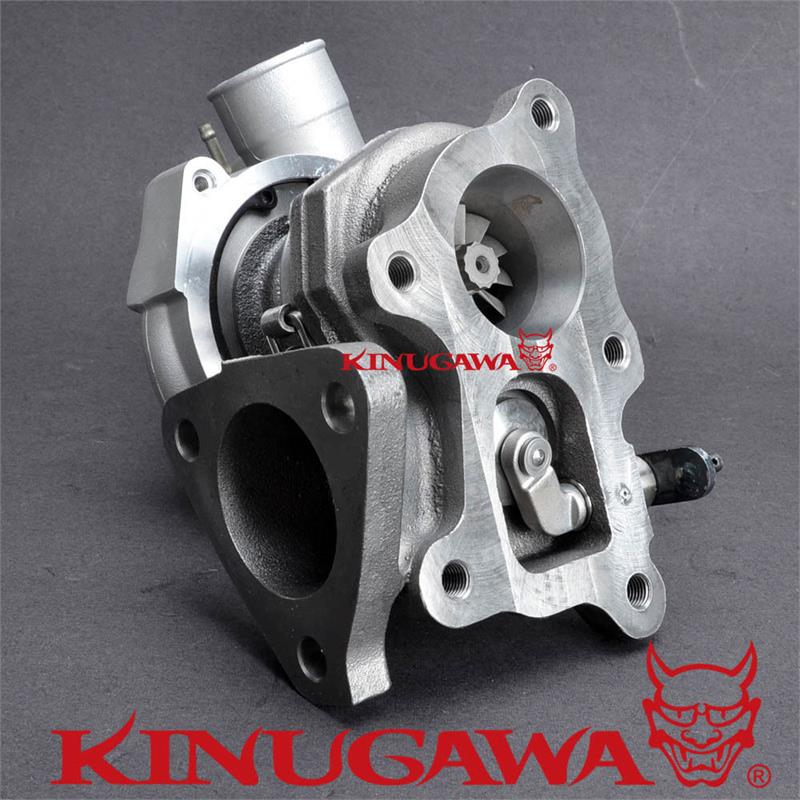

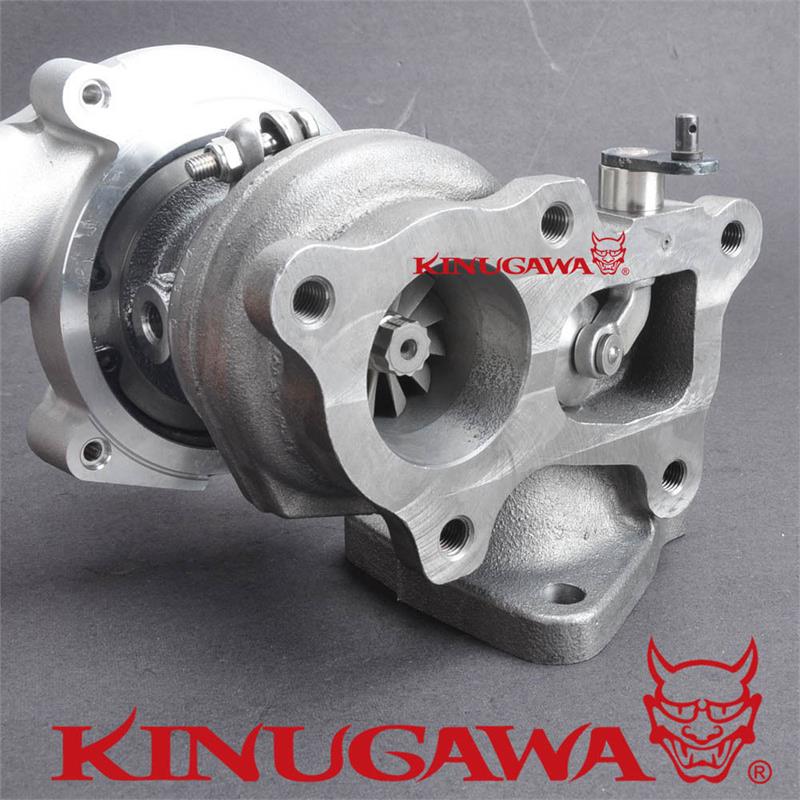

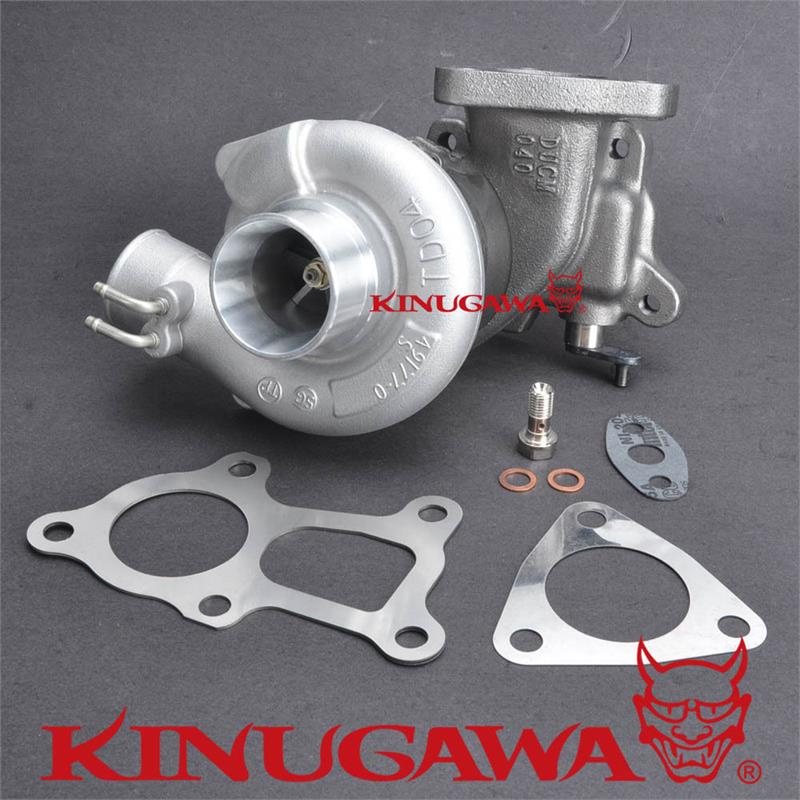

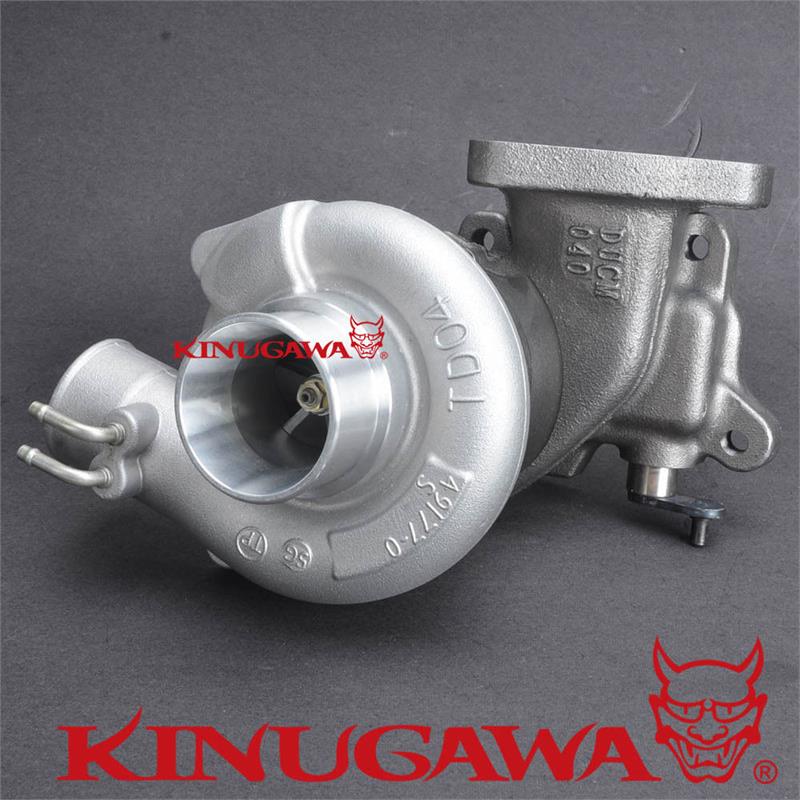

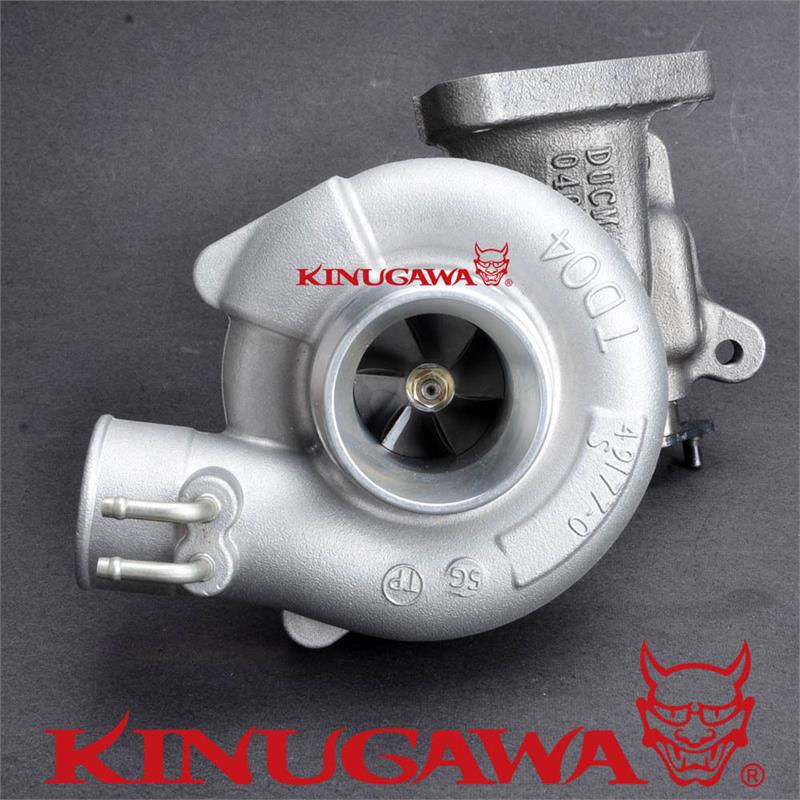

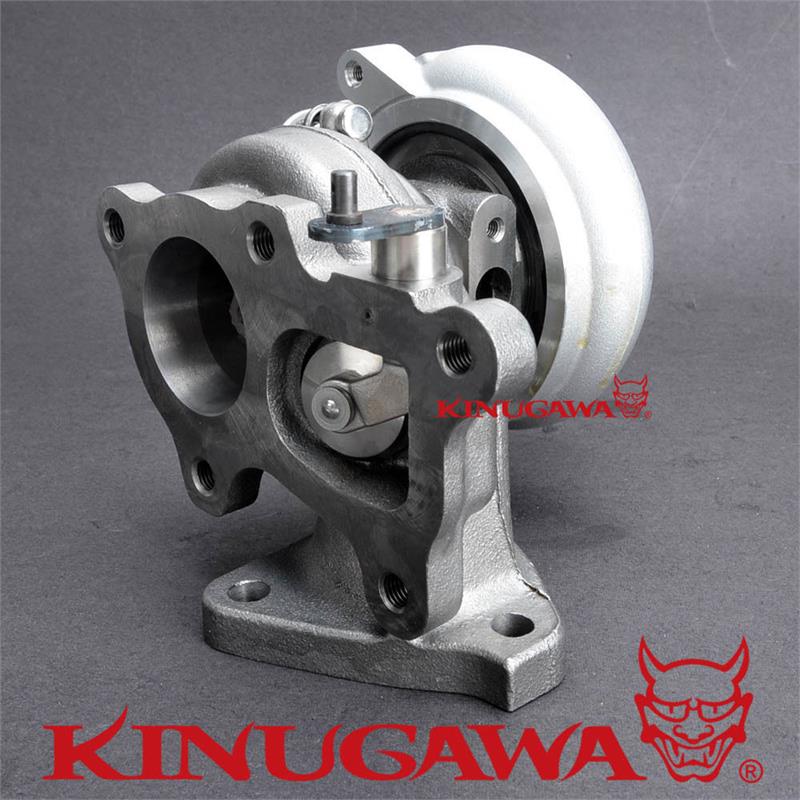

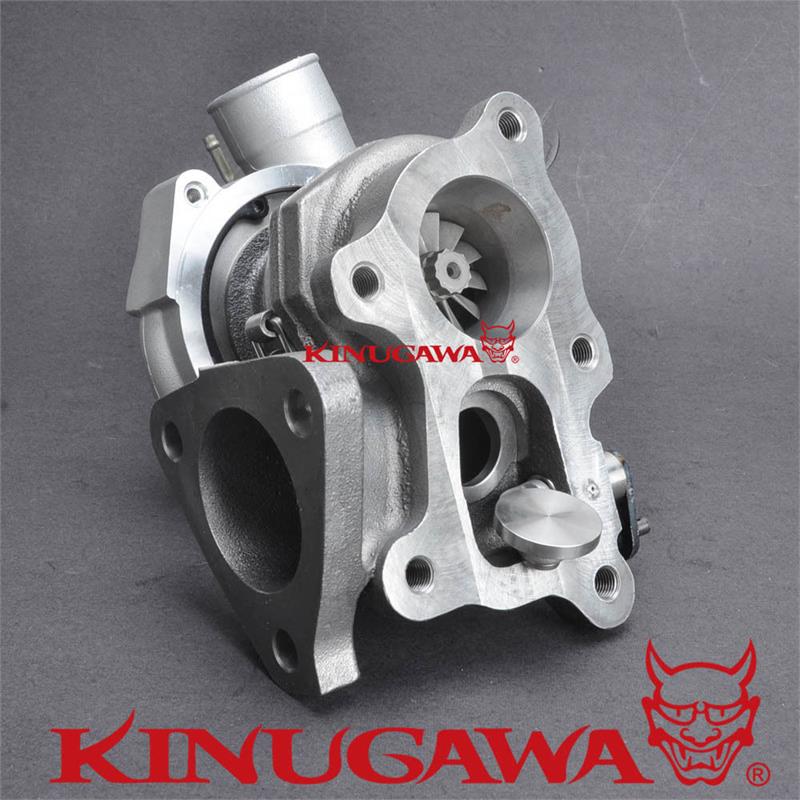

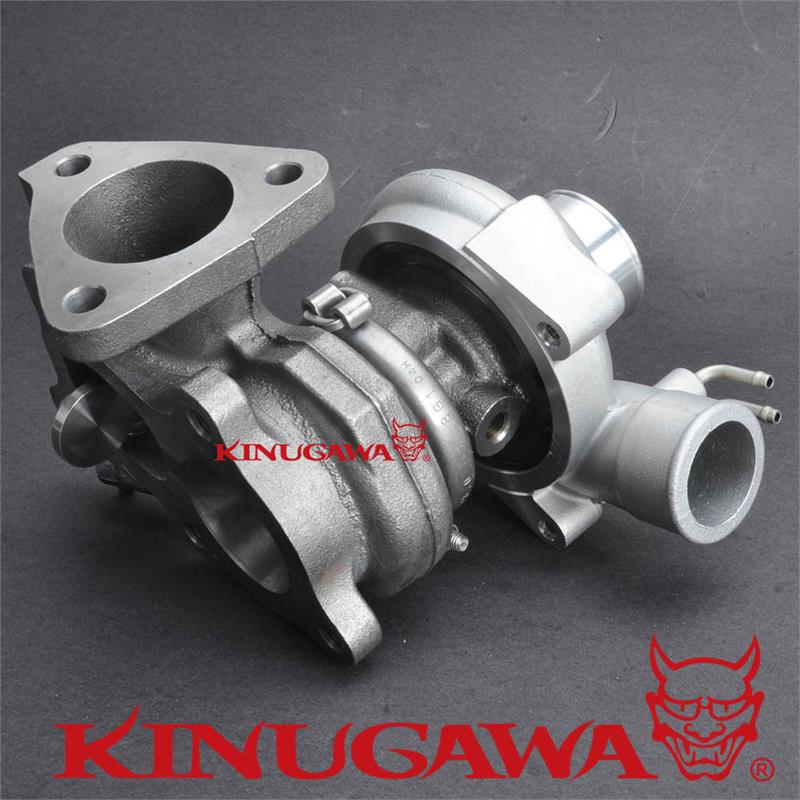

Kinugawa Mitsubishi 4D56T L200 / L300 / L400 / Pajero / Montero TD04 Oil-Cooled Turbocharger with 5 bolt outlet Flange

Application

-  Replace L200, L300, L400, Pajero, Montero, Delica stock TD04

oil-Cooled turbocharger with P/N: 49177-02500, 49177-02501,

49177-02510, 49177-02511.

Product

Situation

-  Brand New.

-  Complete core was test and balanced on Schecnk MBRS 110 to make sure it works well and ready to boost.

CHRA

- Compressor wheel : 37.8/49 mm ( 12T )

- Turbine Wheel : 40/47.1 mm (TD04)

Bearing

system

- Journal Bearing

Cooling

System

- Oil-Cooled

Turbine

 Housing

4cm

Made by

Kinugawa Turbo

Warranty

One Year
