Kinugawa Turbocharger Mitsubishi 4D56T Pajero L200 Oil-Cool TD04-15T Extra 50%

Product Information

PART NO.

 0100-810-151 (301-02034-010)

Item Name

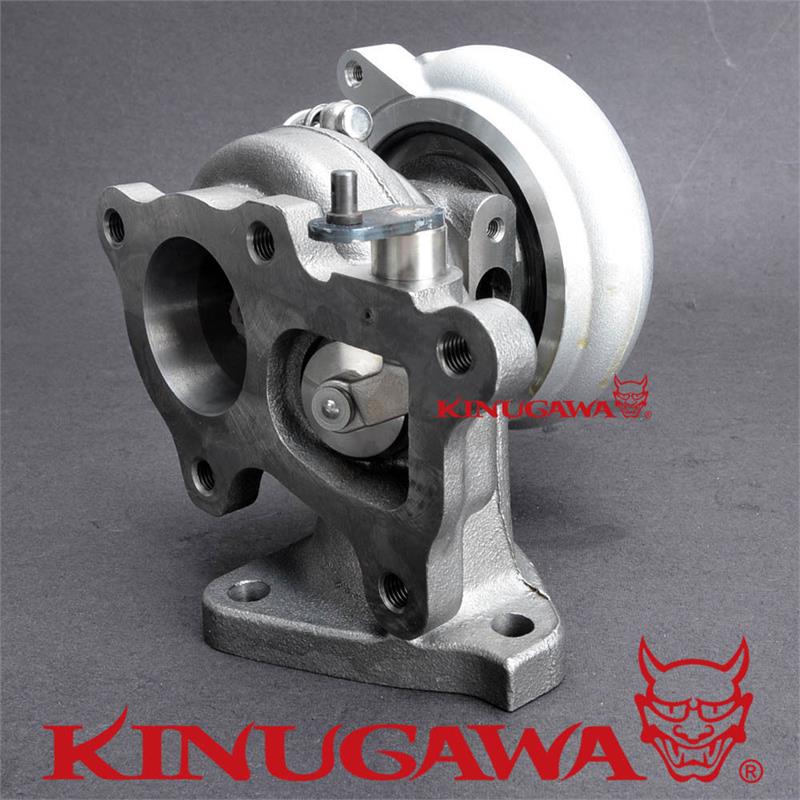

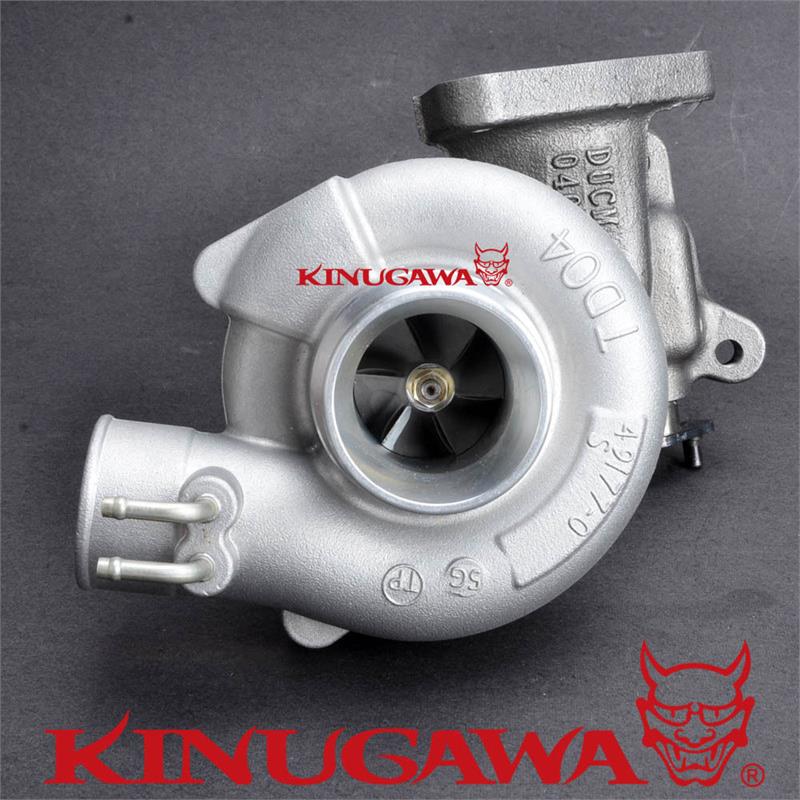

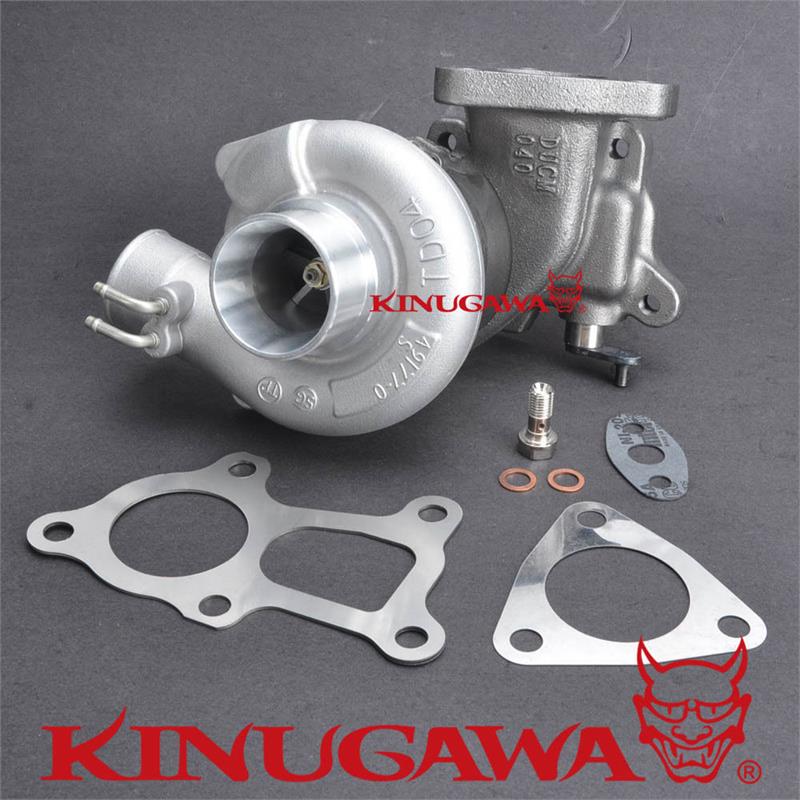

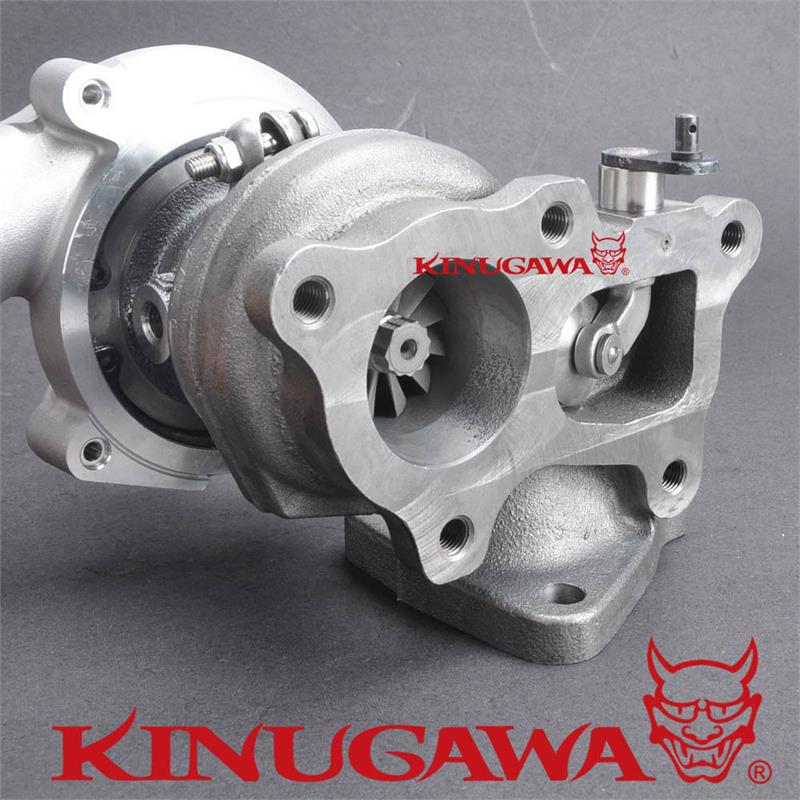

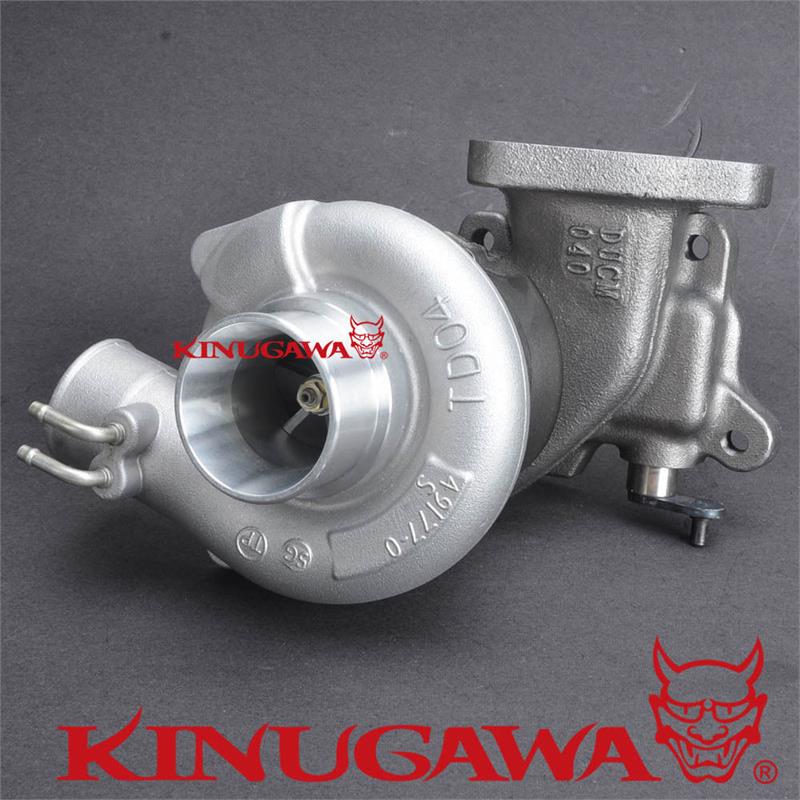

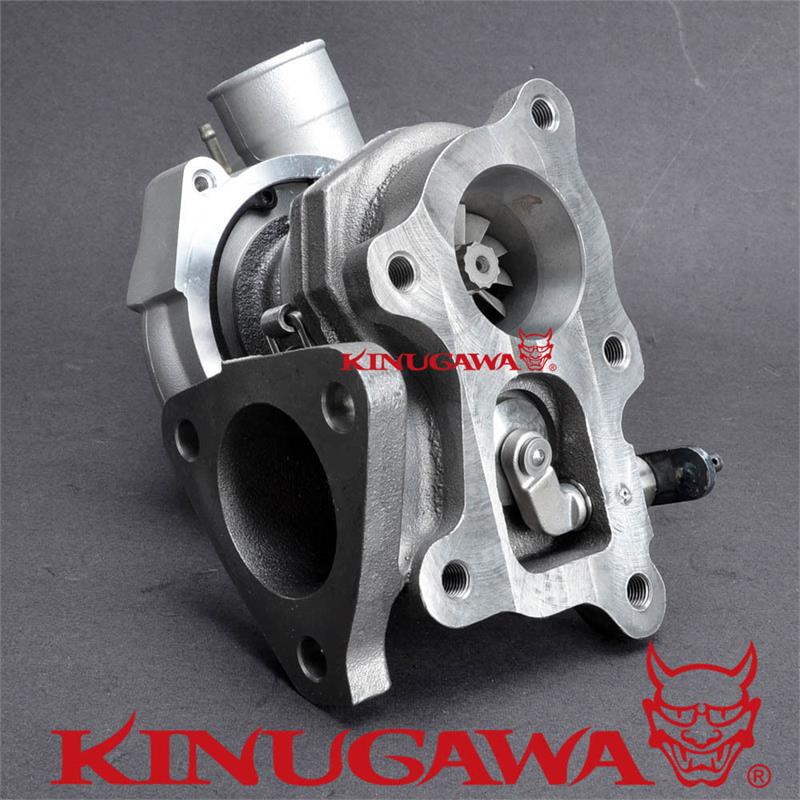

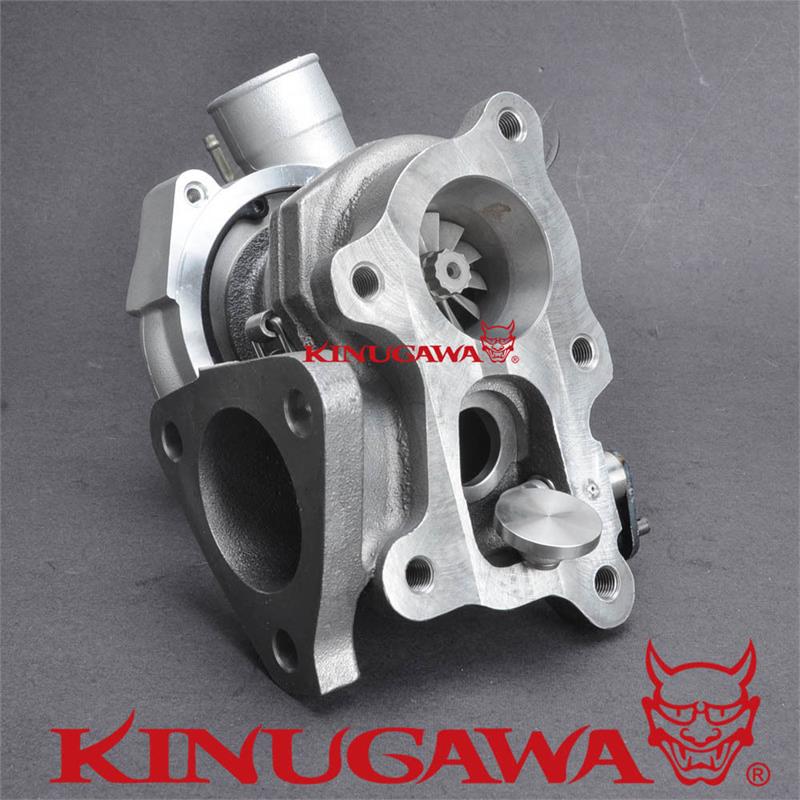

Kinugawa Mitsubishi 4D56T L200 / L300 / L400 / Pajero / Montero TD04-15T Oil-Cooled Upgrade Turbocharger with 5 bolt outlet Flange

Application

-    Replace L200, L300, L400, Pajero, Montero, Delica stock TD04 oil-Cooled turbocharger with P/N: 49177-02500, 49177-02501, 49177-02510, 49177-02511.

Product

Situation

-    Brand New.

-    This upgrade turbo comes with 15T compressor wheel that offer extra 50% airflow than stock 11G compressor wheel.

-    Complete core was test and balanced on Schecnk MBRS 110 to make sure it works well and ready to boost.

CHRA

-  Compressor wheel : 42/56 mm (15T )

-  Turbine Wheel : 40/47.1 mm (TD04)

Bearing

system

-   Journal Bearing

Cooling

System

-   Oil-Cooled

Turbine

Housing

4cm

Made by

Kinugawa Turbo

Warranty

One Year
