Kinugawa Turbocharger Mitsubishi 4G63T Eclipse EVO 1-3 Galant VR-4 TD05H-18G

Product Information

Item Name

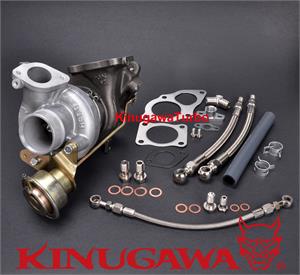

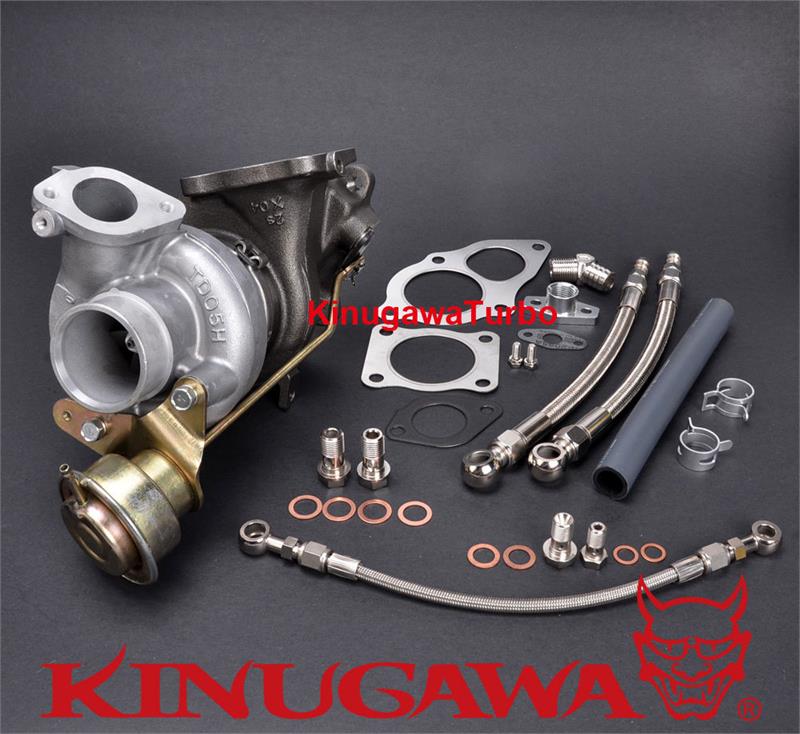

Kinugawa Mitsubishi EVO1~3 / DSM 1G 2G / Galant VR-4 TD05H -18GUpgraded turbocharger with Install Kit

Kando_Dynamic P/N.

 0100-821-318 (301-02034-031)

Situation

Brand New in Box

Application

4G63T Mitsubishi Lancer EVO 1~3, Galant VR-4 , DSM Eclipse 1G 2G

CHRA Size:

TD05H-18G with 12 blades turbine wheel

Turbine HousingAR

7 cm^2 Ported Turbine Housing

Flapper

34mm Larger Turbine Flapper

Bearing Type

Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger

Maximum Boost

2.8 Bar / 40 Psi

Suggest Boost

1.5 Bar /  22 Psi

Cooling System

Oil and Water-Cooled

Actuator

Pressure

1.2 Bar / 17 psi

Made By / Warranty

- Made By Kinugawa Turbo

- One Year Warranty
