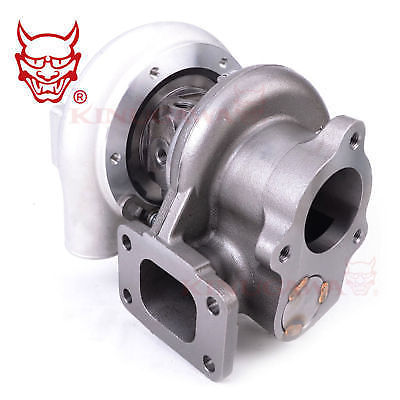

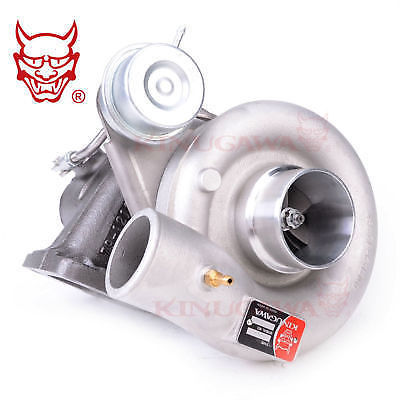

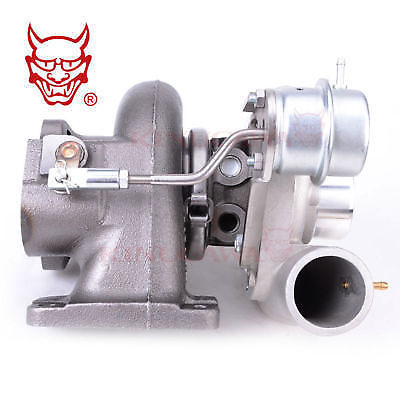

Kinugawa Turbocharger RB20DET RB25DET 2.4" Cover & 8cm/T3/V-Band TD06 w/ GT 60-1
|
Out of stock
Item Number: 301-02001-196
* Whole number only
|
|
|
Kinugawa 2.4” Cover / Internal Gated RB20DET / RB25DET Turbocharger
TD06 Core with Garrett 60-1 wheel & 8cm Turbine Housing
|
|
Item Name
|
Kinugawa 2.4” RB20DET RB25DET TD06 Turbocharger with Garrett 60-1 wheel and 8cm Turbine Housing
|
|
P/N.
|
301-02001-196
|
|
Application
|
l Nissan RB20DET, RB25DET
l Bolt on to stock exhaust manifold and intake pipe.
l Cover outlet needs to be modified with silicon hose.

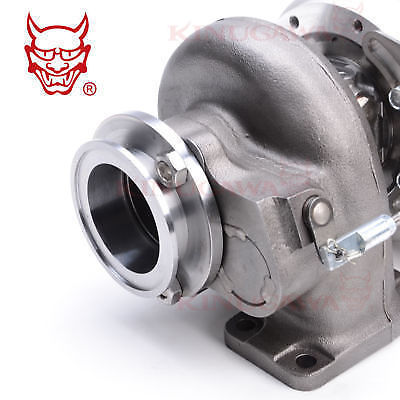

l Dump pipe needs to be connected by V-Band adapter.
|
|
CHRA Size:
|
l TD06-601
|
|
Wheel spec
|
l Compressor wheel: 60 / 76 mm (Garrett 60-1 Wheel)
l Turbine wheel: 55 / 65 mm (STD TD06 / 12 Blades of Inconel Wheel)
|
|
Compressor Housing
|
l A/R 60
l Inlet Dia. 60mm / 2.4”
l Outlet Dia. 51mm / 2”
|
|
Turbine Housing
|
l 8cm / AR 57
l T3 Inlet Flange
l Internal Gate
|
|
Bearing Type
|
l Journal Bearing
l KAMAK Performance Thrust Bearing Kit
|
|
Cooling Type
|
l Water-Cooled
|
|
Watergate Actuator
|
l 1 Bar / 15 psi
l 0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available, please contact us if you need it.
l Actuator position can be 360 Deg moved easily.
|
|
Max Hp
|
l 300~450HP
|
|
Turbo Boost
Limit
|
l 2.8 Bar (Based on Performance bearing kit with larger thrust bearing )
|
|
Suggested
Boost
|
l 1.5 bar / 22 Psi
|
|
Product
Situation
|
l Brand New
|
|

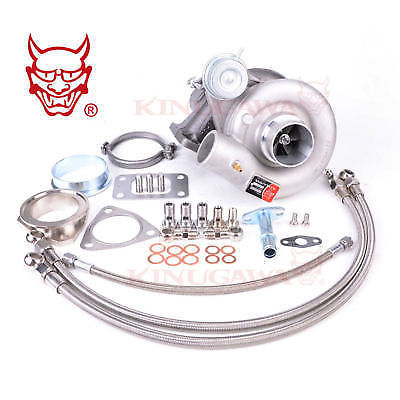

Kit Includes
|
l 1 x Oil feed line kit ( 60 cm Braided Line )
l 1 x Oil drain pipe kit
l 2 x Coolant line Kit
l 2 x Turbine Gasket ( Inlet + Outlet )

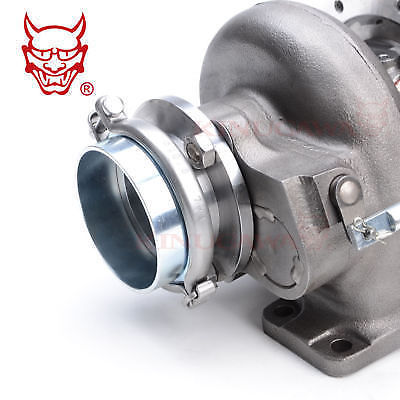

l 1 x V-Band Adapter
|
|
Upgraded By
|
l Kinugawa Turbo, Japan
|
|
Warranty
|
l One Year Warranty
l Life Time Service
|
|
|
|
|
|
