Kinugawa Turbocharger SR20DET SILVIA S14 S15 TD06SL2-20G 8cm / 5 Bolt / T25
|
Item Number: 0100-828-220 (301-02035-006)
* Whole number only
|
|
|
NISSAN SILVIA SR20DET S14 S15

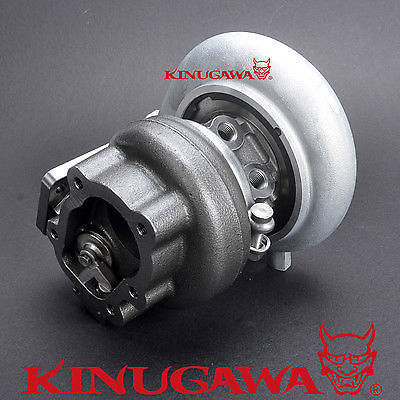

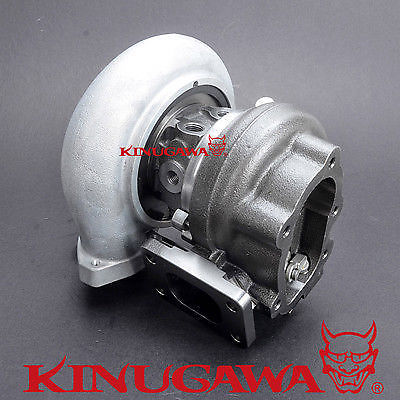

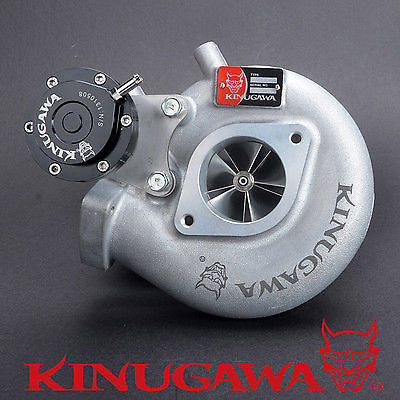

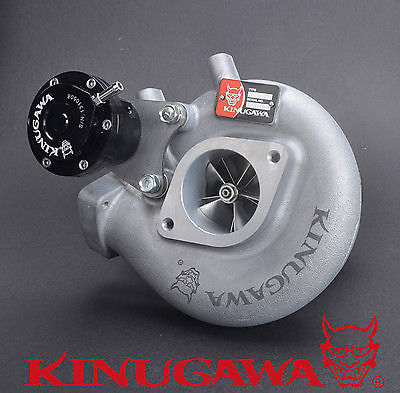

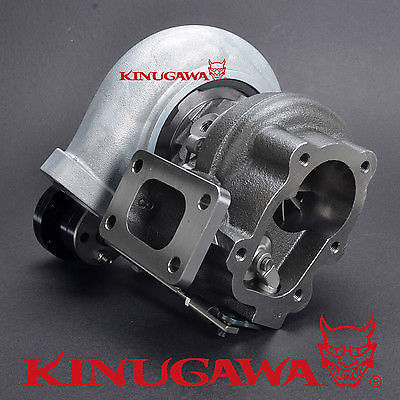

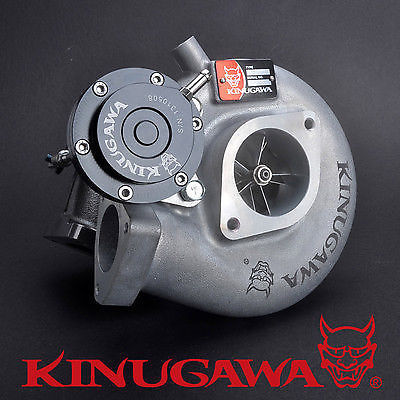

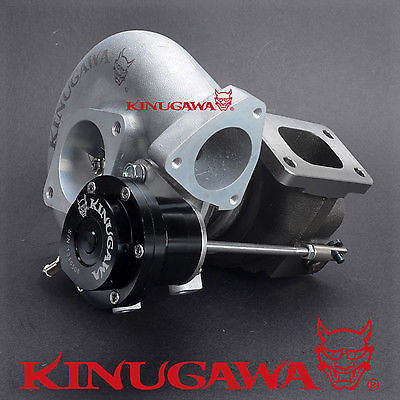

TD06SL2-20G Turbocharger
|
|
Item Name
|
Kinugawa NISSAN SILVIA TD06SL2- 20G Turbo
|
|
Kando_Dynamic P/N.
|
0100-828-220 (301-02035-006)
|
|
Application
|
NISSAN SR20DET SILVIA S14 S15
|
|
Replace Turbo
|
Replace and upgrade stock Garrett T28 turbo directly.
|
|
CHRA Size:
|
TD06SL2-20G
|
|
Turbine Housing
A/R
|
8 cm^2 Ported Turbine Housing
|
|
Flapper
|
28mm Larger Turbine Flapper
|
|
Bearing
Type
|
Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger
|
|
Cooling
Type
|
Water-Cooled
|
|
Actuator
Pressure
|
- 1bar / 14~15 psi spring will go with this adjustable actuator.
- We sell springs for different boost on our ebay shop and will combine shipping without additional shipping fee.
|
|
Max Hp
|
350~420HP
|
|
Turbo Boost
Limit
|
2.8 Bar ( Performance bearing kit with larger thrust bearing )
|
|
Suggested
Boost
|
1.5 Bar
|
|

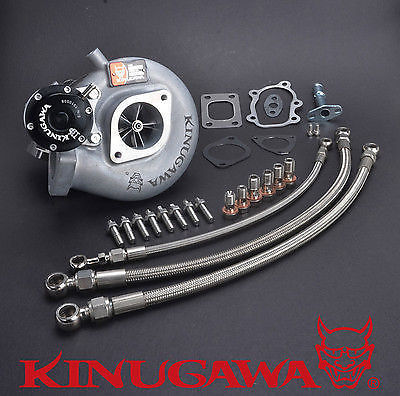

Extra parts
Includes
|
- Two Stainless Turbine Gasket
- Oil feed line kit, Oil Drain Pipe kit, water coolant Pipe kit… as pictures on my ebay shop
|
|
Product
Situation
|
Brand New in Box
|
|
Balance
|
Complete cartridge was balanced by SCHENCK MBRS 110
|
|
Supplier
|
Kinugawa Turbo
|
|
Warranty
|
One year
|
|
|
|
|
