Kinugawa Turbocharger SUBARU Impreza WRX STI TD05H-16G 7cm 98-08

Product Information

Item Name

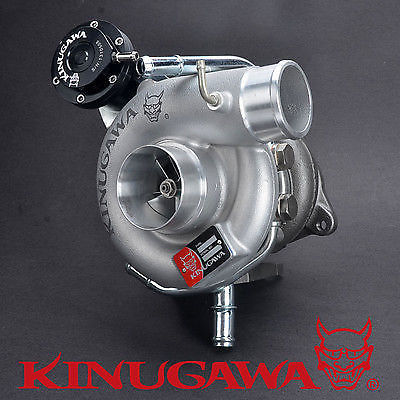

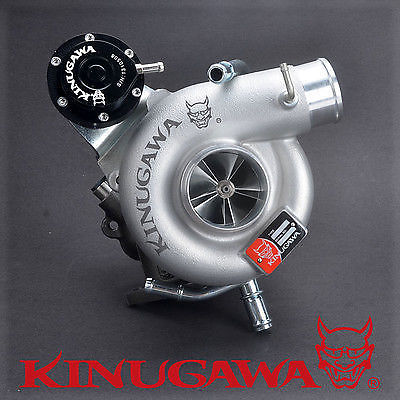

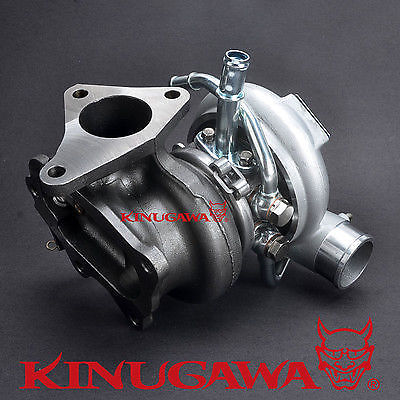

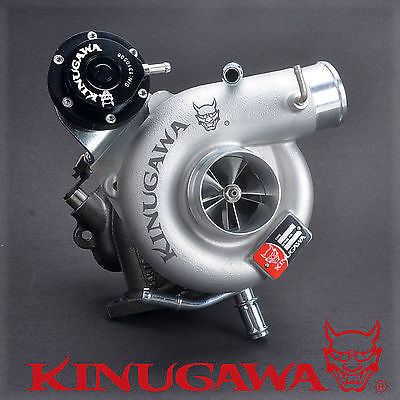

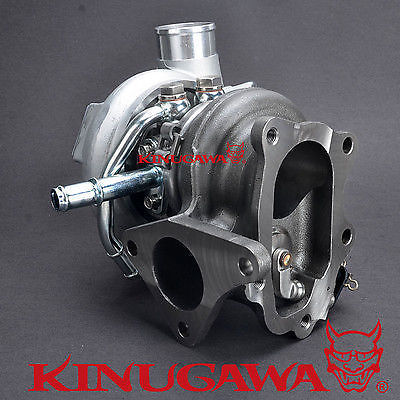

Kinugawa SUBARU TD05H-16G Turbocharger with 7cm turbine housing and Adjustable Actuator

Kando_Dynamic P/N.

301-02049-016

Application

- 98~08 EJ20 EJ25 SUBARU WRX TD04L Turbocharger.

- ~ Now EJ20 EJ25 Subaru STI IHI RHF55 RHF5HB Turbocharger.

Replace

 Turbo

It can replace TD04L WRX turbo, IHI VF30, VF35...turbo directly without modification

Wheel Size:

Comp. Wheel: 48.3 / 68mm ( EVO3-16G)

Turbine Wheel: 49.1 / 56mm (TD05H)

Turbine

Housing A/R

7 cm^2 Ported Turbine Housing

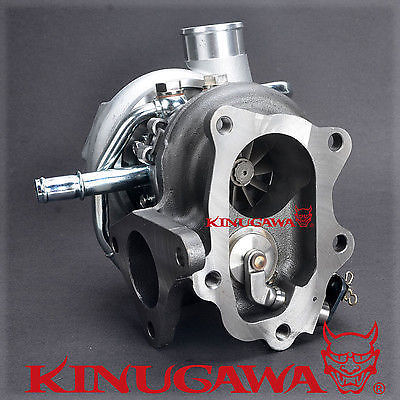

Flapper

34mm Larger Turbine Flapper

Bearing Type

Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger

Cooling Type

Oil & Water-Cooled

Actuator

Pressure

- 1.0 Bar / 15 psi spring is installed on this actuator.

- We can offer 0.3bar, 0.5bar, 0.8bar, 1.0bar, 1.2bar, 1.5bar, 1.8bar and 2.0bar spring on our ebay shop.

Max Hp

 330~380HP

Boost Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Extra

parts Includes

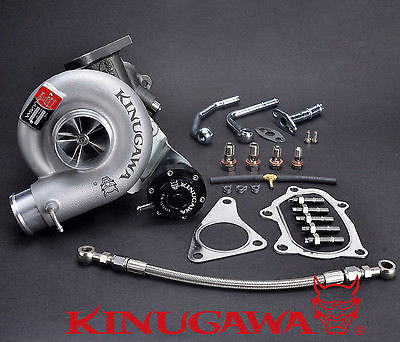

Everything shown on picture is included.

Made By

Kinugawa

Warranty

One year
