Kinugawa Billet Turbocharger 4" Cover TD06SL2-25G w/ T3 10cm V-Band Hsg / 500HP

Kinugawa TD06SL2-25G Turbocharger

(4” Anti-Surge Cover / 10cm T3 Turbine Housing)

Item Name

Kinugawa TD06SL2-25G Turbocharger with 4” Cover and T3 / 10cm / V-Band Turbine Housing

P/N.

321-02001-076

Application

-       Universal Type

-       1800~3000cc

Wheel spec

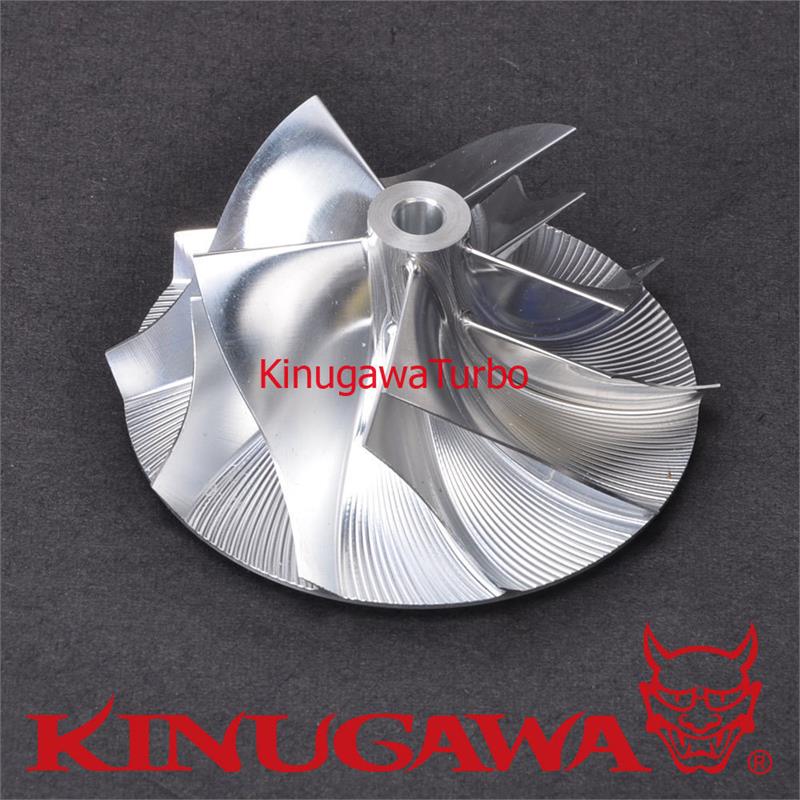

-       Compressor wheel: 60.5/78 mm (25G Billet Wheel)

-       Turbine wheel: 54.1/61 mm (TD06SL2 / 11 Blades)

Turbine Housing AR

10cm / AR73 T3 Flanged V-Band turbine housing

Bearing Type

-       Journal Bearing

-       KAMAK Performance Thrust Bearing Kit

Cooling Type

-       Oil and Water-Cooled

Max Hp

400~650 BHP

Turbo Boost Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested Boost

1.5 bar / 22 Psi

Product Situation

Brand New

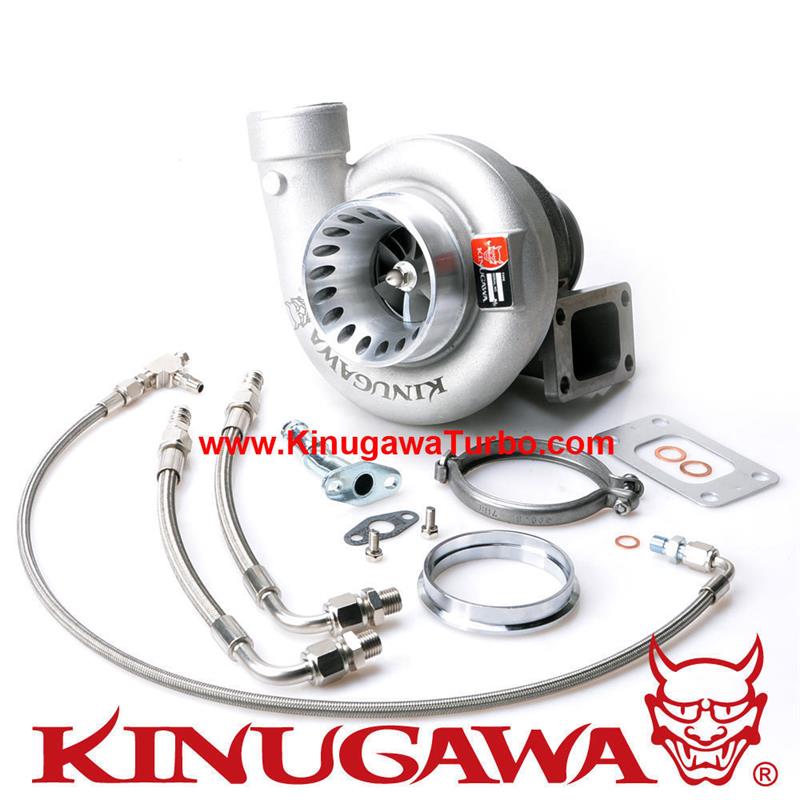

Kit Includes

1 x Oil feed line kit ( 100cm Braided Line )

1 x Oil Return Pipe Kit

1 x Turbine Gasket Inlet Gasket

1 x V-Band Flange Kit

2 x 24cm 6AN Water Line Kit

Made By

Kinugawa Turbo

Warranty

One Year
