Kinugawa Turbocharger SUBARU Legacy Forester Liberty GT WRX 08- TD05H-16G 8cm

Kinugawa TD05H-16G6 SUBARU 05~09 Legacy GT / 08~11 GH8

WRX / Legacy / Outback / Forester

Item Name

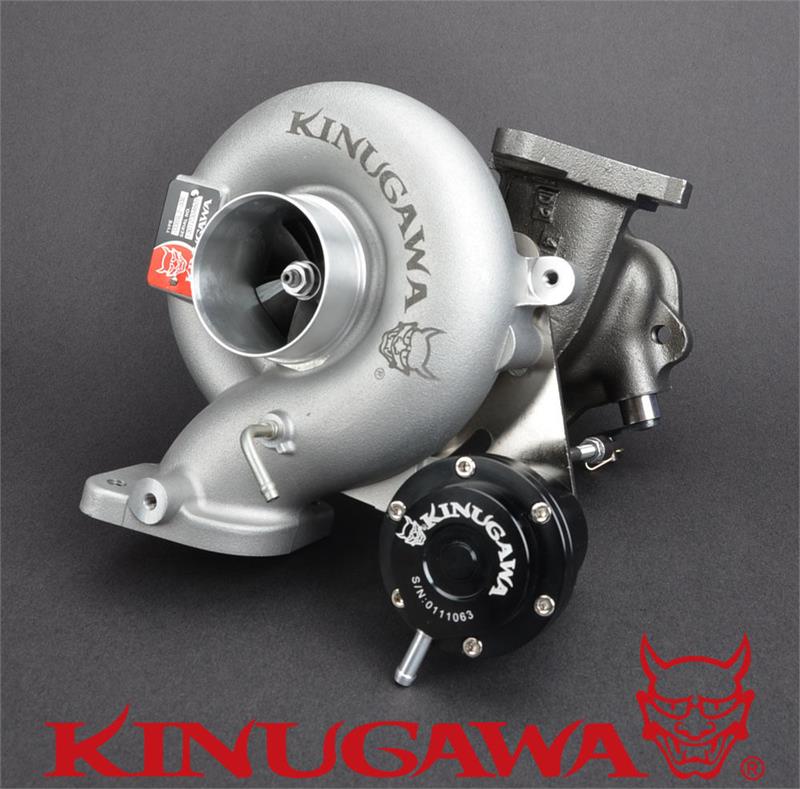

Kinugawa SUBARU 05~09 Legacy GT / 08~11 WRX / Forester TD05H-16G6 Turbocharger

 P/N

 301-02049-021

Application

-       05~09 Legacy GT / Outback

-       08~11 WRX / Forester

Replace Turbo

It can replace VF40, VF46, VF52 without modification

CHRA Size:

TD05H-16G6

wheel SIze

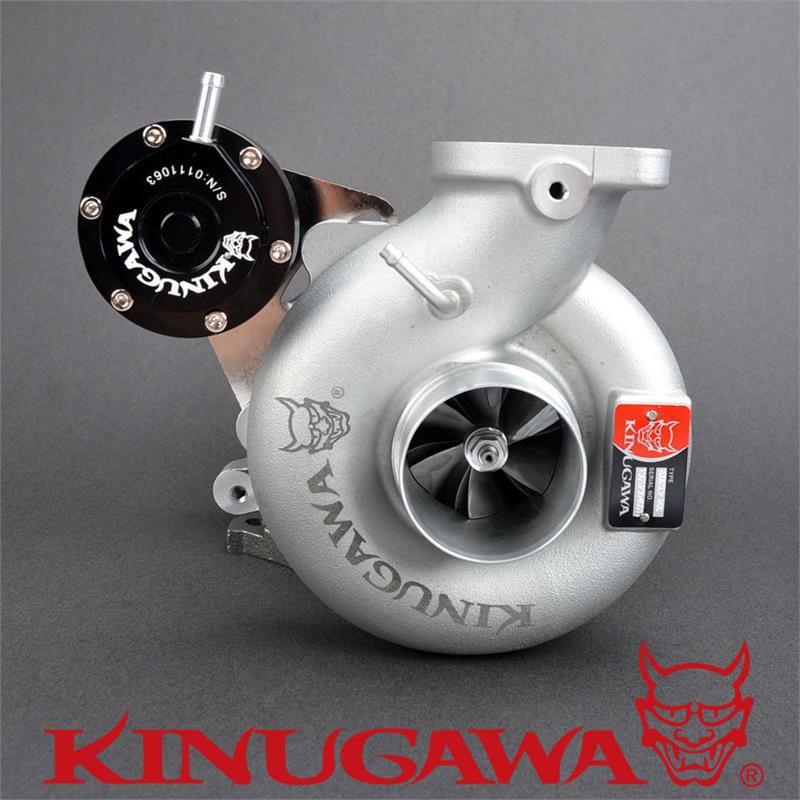

 Compressor Wheel: 48.3 / 68mm ( EVO3-big 16G wheel)

 Turbine Wheel: 49.1 / 56mm ( TD05H Turbine wheel)

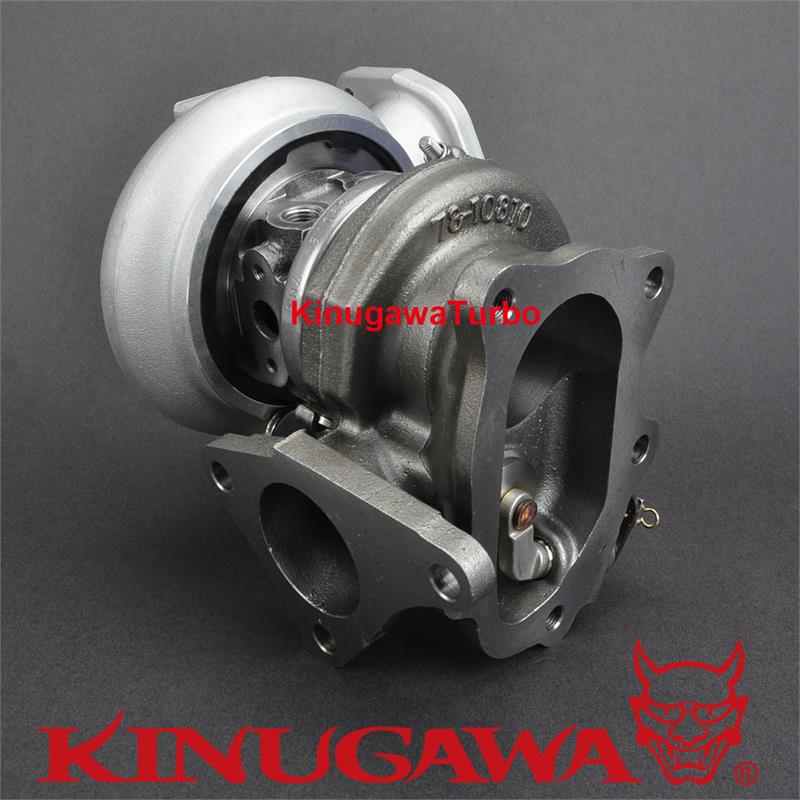

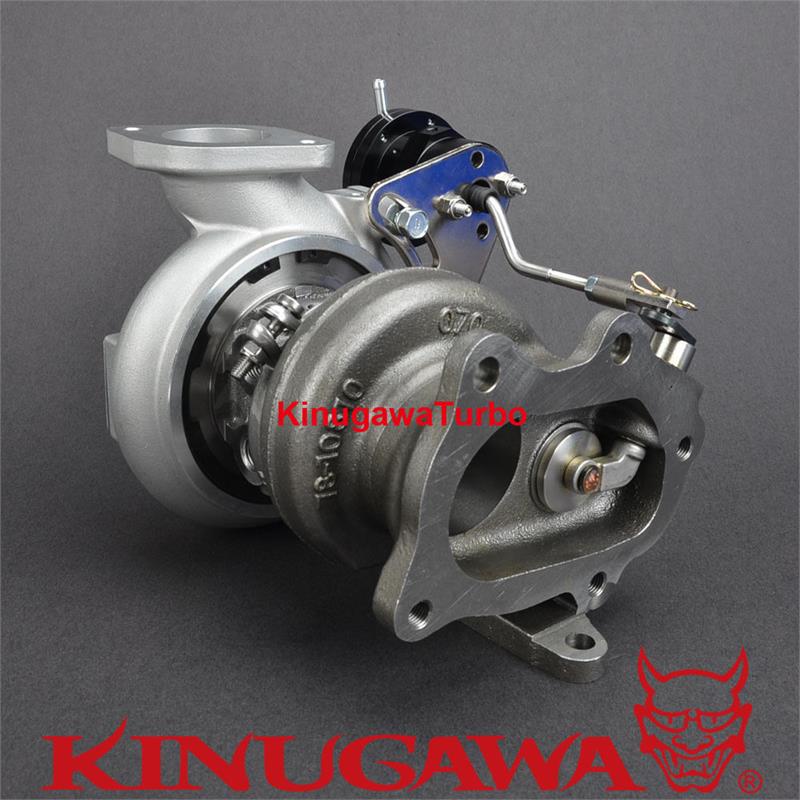

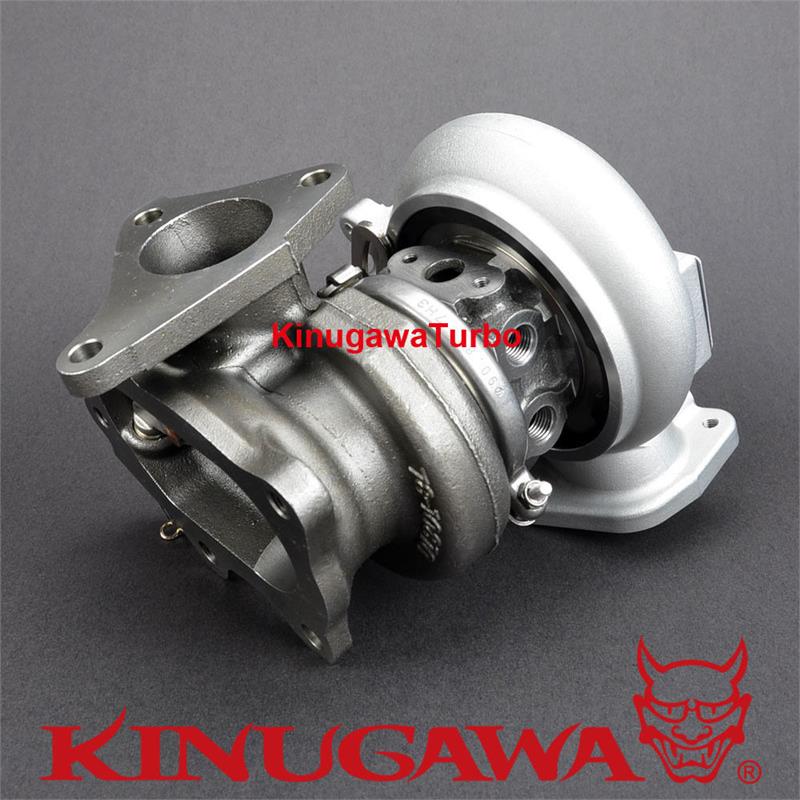

Turbine Housing

AR

8cm^2 Single Scroll Turbine Housing

Bearing Type

Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger made by KAMAK Dynamics.

Cooling Type

Water-Cooled

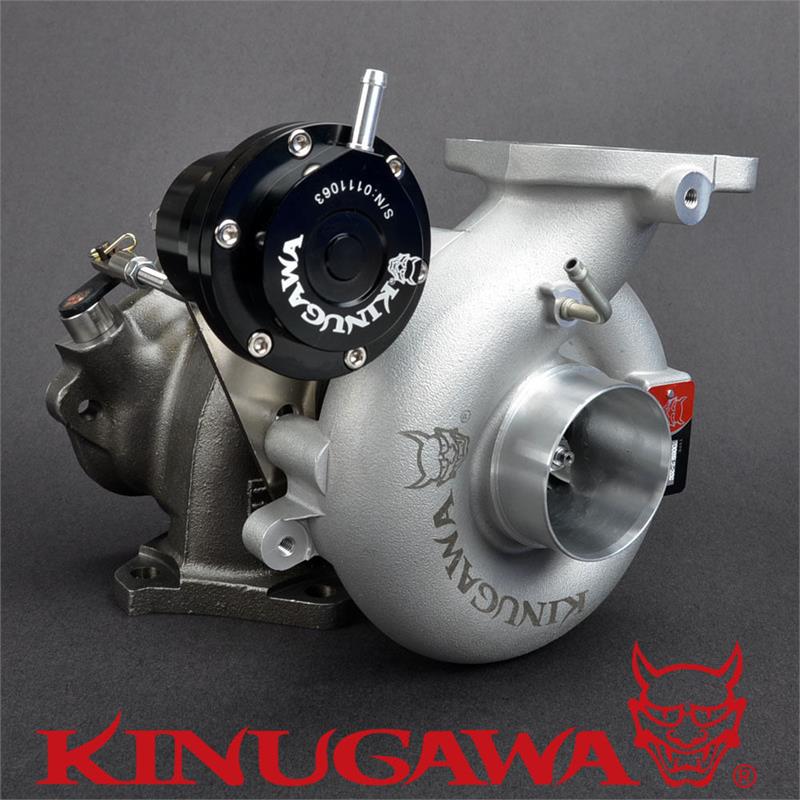

Actuator Pressure

-       1 Bar / 15 Psi

Max Hp

280 ~ 350 HP

Turbo Boost Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

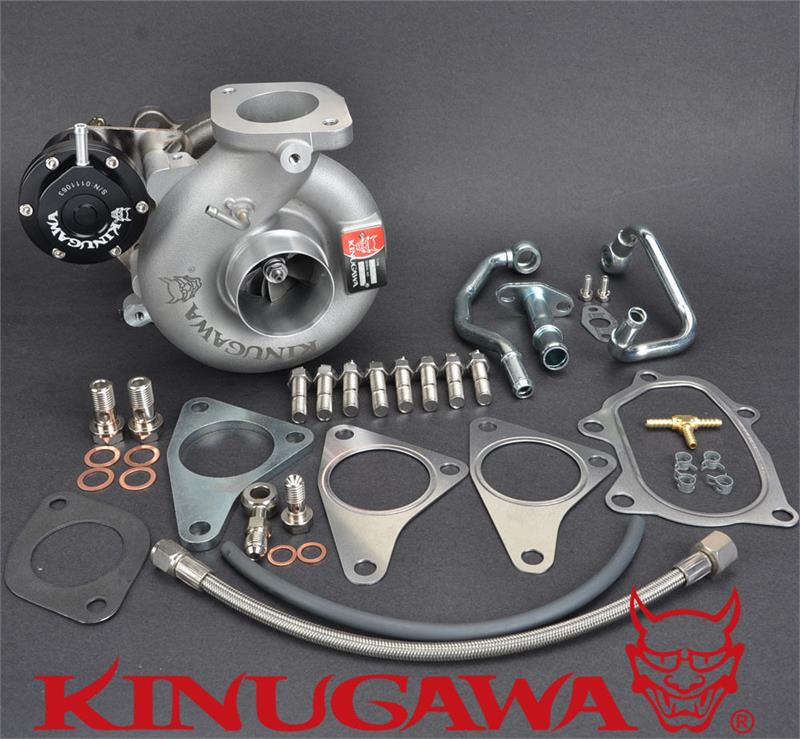

Extra parts

Included

l   Oil feed line kit,

l   Oil Return Pipe kit,

l   Braided Steel Water coolant line kit

l   Stainless Stud Kit

l   Two Stainless Gasket.

l   1 x compressor Outlet Gasket.

l   1 x Turbine Inlet Flange Spacer.

Product Situation

Brand New

Supplier

 Kinugawa Turbo, JAPAN

Warranty

One year
