Kinugawa Turbocharger TD04L-14T 6cm w/ BOV T25 Flange / Spool Fatser / 250HP

Kinugawa TD04L-14T Turbocharger with BOV Cover,  6cm Internal Gate Turbine Housing with T25 Inlet

Item Name

Kinugawa TD04L-14T Turbocharger with BOV Cover and 6cm T25 Inlet Turbine Housing.

P/N.

301-02001-352

Application

- Universal Type

- 1600~2300cc

CHRA Size:

- TD04L-14T

Wheel spec

Compressor wheel: 39.5 / 51 mm (14T Wheel)

Turbine wheel: 41.3 / 47 mm (TD04L)

Compressor

Housing

Included BOV

we can use an aliminum plate to blocks the opening,If

you don't need BOV,

Turbine Housing

- 6cm / AR .43

-T25 Inlet Flange

- Internal Gate

Bearing Type

- Journal Bearing

   (Genuine Mitsubishi TD04L-14T Cartridge Kit)

Cooling Type

- Oil and Water-Cooled

Watergate Actuator

- 0.8 bar actuator will go with this turbocharger.

- 0.3Bar, 0.5 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available, please contact us if you need it.

Max Hp

160~250 HP

Turbo Boost

Limit

2.0 Bar

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

Kit Includes

1 x Oil feed line kit

1 x Oil drain pipe kit

2 x Coolant line Kit

2 x Turbine Gasket ( Inlet + Outlet )

5 x Stud and Nut Set

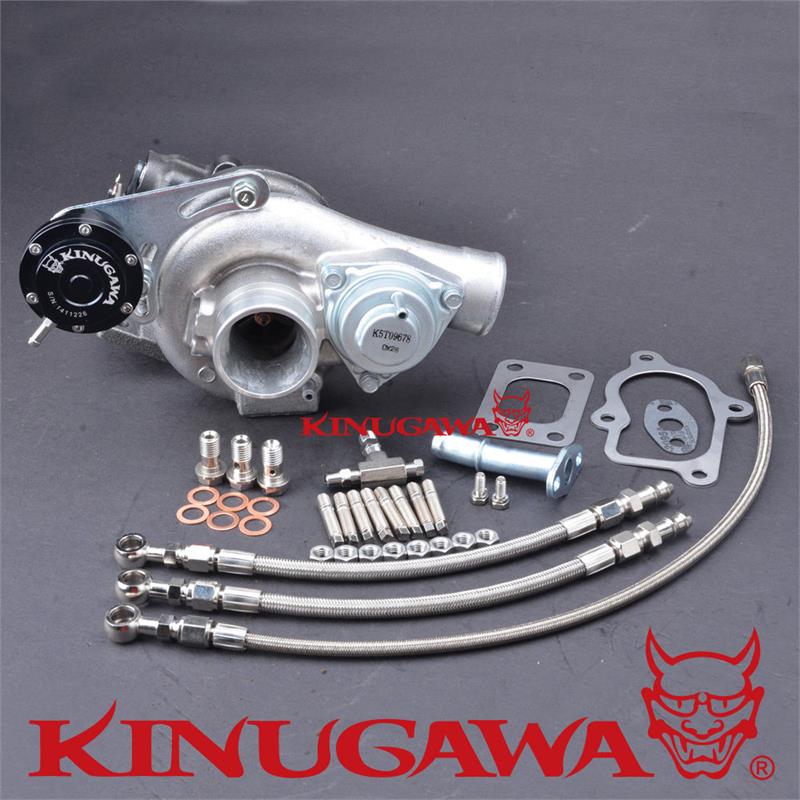

Everything shown on picture is included.

Upgraded By

Kinugawa Turbo, Japan

Warranty

One Year
