Kinugawa Turbocharger Upgrade TOYOTA DYNA 13BT / 14BT CT26 w/ Garrett 60-1

KINUGAWA TOYOTA 13BT / 14BT Upgrade CT26 Turbocharger

with Garrett 60-1 Compressor Wheel

Item Name

Kinugawa TOYOTA 13BT 3.4L / 14BT 3.7L Diesel DYNA Upgrade Turbocharger with Garrett 60-1 Compressor wheel

P/N.

301-02052-004

Application

-      1984~1994 13BT 3.4L / 14BT 3.7L diesel DYNA.

-      60-1 wheel will offer extra 50% airflow than stock CT26 compressor wheel.

-      This upgrade turbo will get extra 50% torque and hp than stock CT26 turbocharger.

-      Replace stock 17201-58020 DYNA turbocharger.

CHRA Size:

Compressor wheel: 60 / 76 mm (Garrett 60-1 Wheel)

Turbine Wheel: 51.9 / 67.9 mm ( Stock Turbine Wheel)

Bearing Type

Journal Bearing

Cooling Type

-      Oil and Water-Cooled

Actuator

Pressure

- 0.5bar, 0.8bar 1.0bar, 1.2 bar, 1.5bar actuator are available,

contact us if you need different actuator.

-       0.8ar actuator will go with turbo if buyer doesn’t contact us before we send the turbo.

Product

Situation

Brand New

Kit Includes

-      1 x Oil Feed and oil return gasket.

-      1 x Water feed and water return gasket.

-      1 x Turbine Inlet Gasket

-      1 x Turbine Outlet gasket

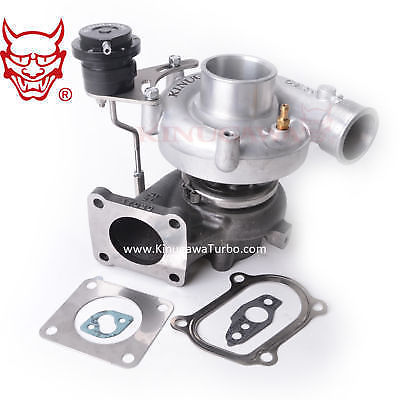

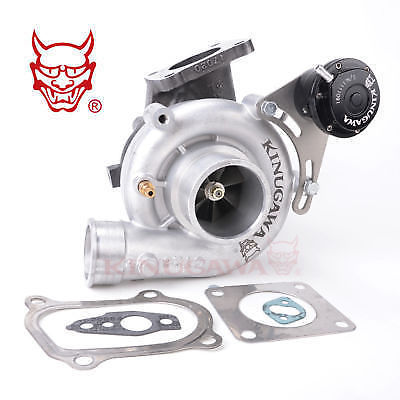

(Everything shown on picture is included).

Brand

-      Kinugawa Turbo

Warranty

-      One Year
