Kinugawa Turbocharger Upgrade VOLVO 850 T5 TD04HL-16T Replace TD04HL-15G B5234FT

Kinugawa VOLVO 850 T5 TD04HL-16T-7 / Replace TD04HL-15G-7

( Upgrade 49189-01300 / 49189-01301 / 300HP Turbo)

P/N

Item Name

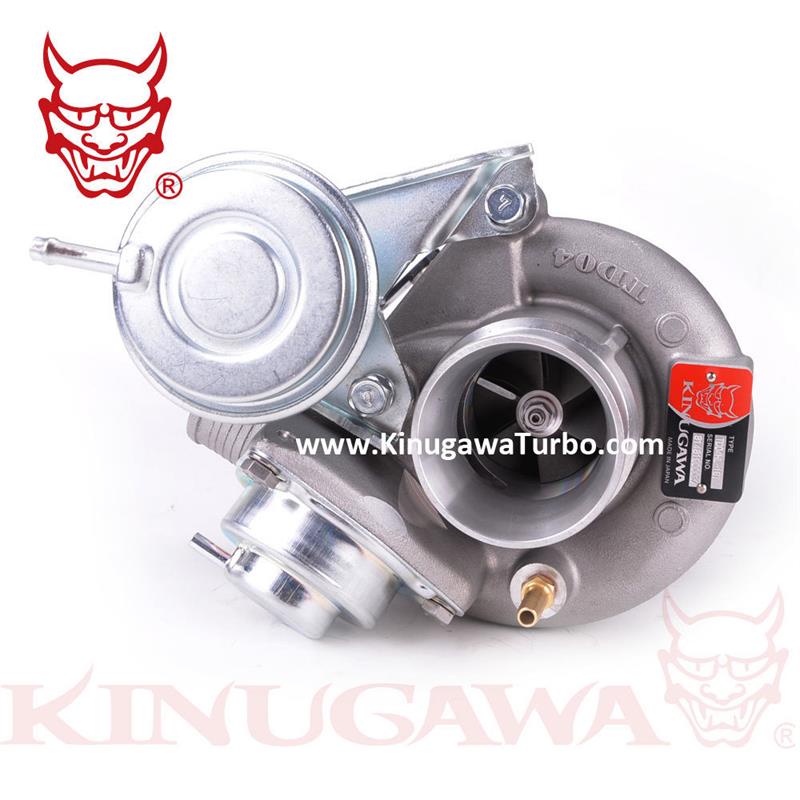

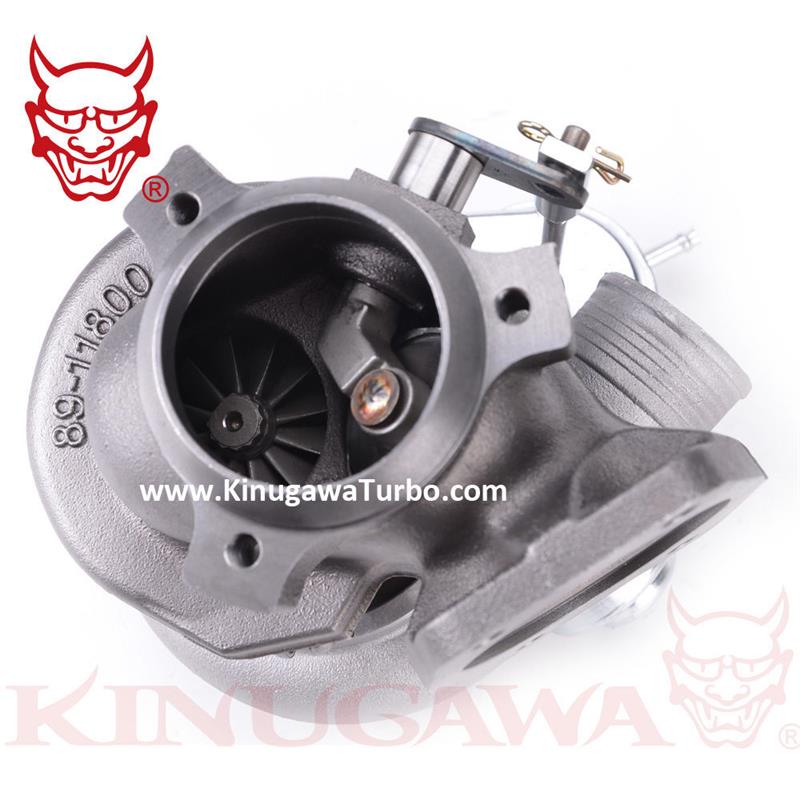

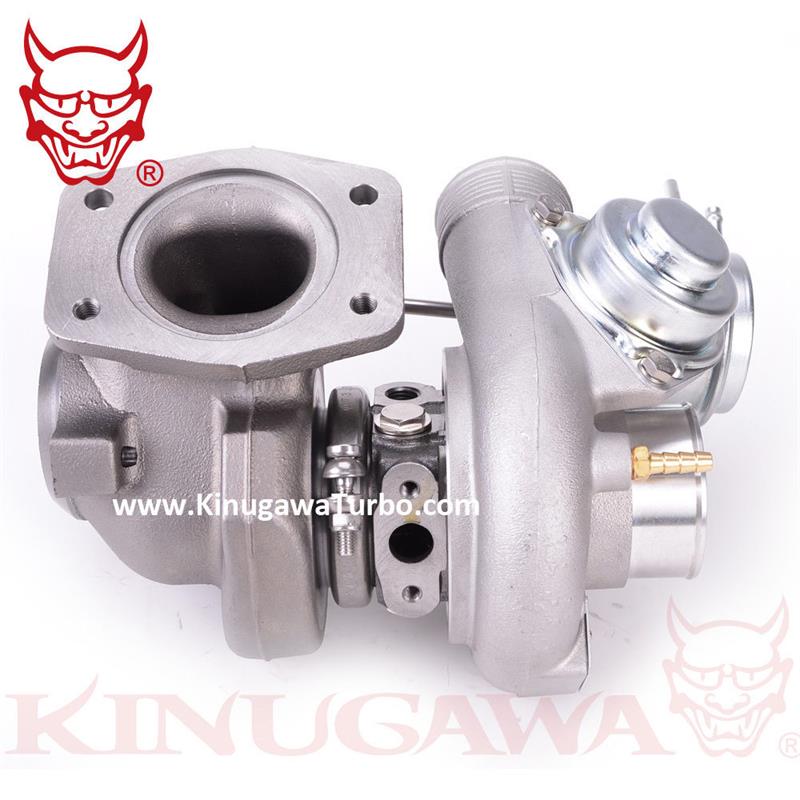

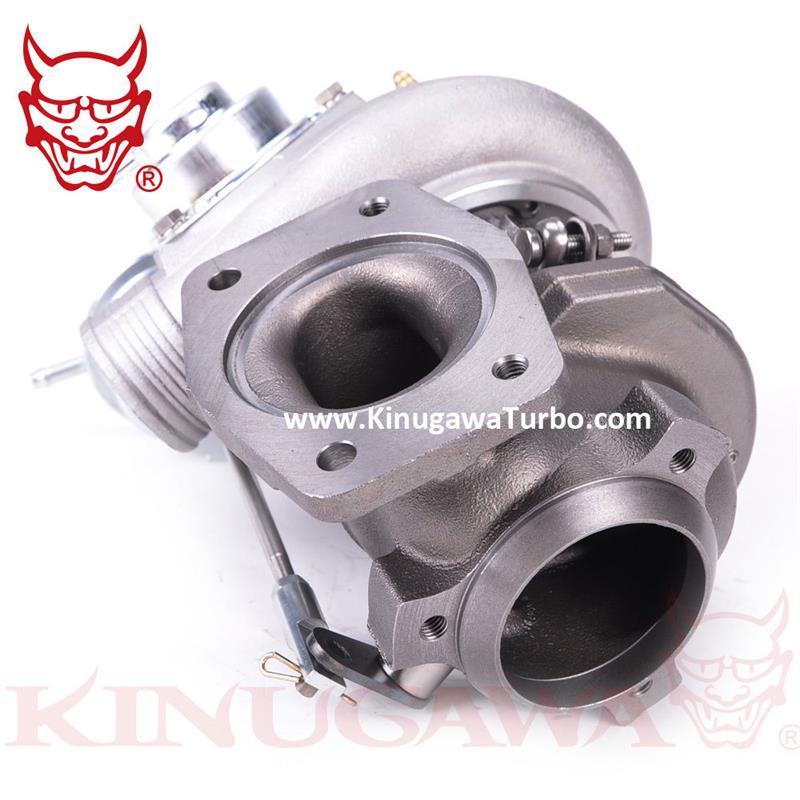

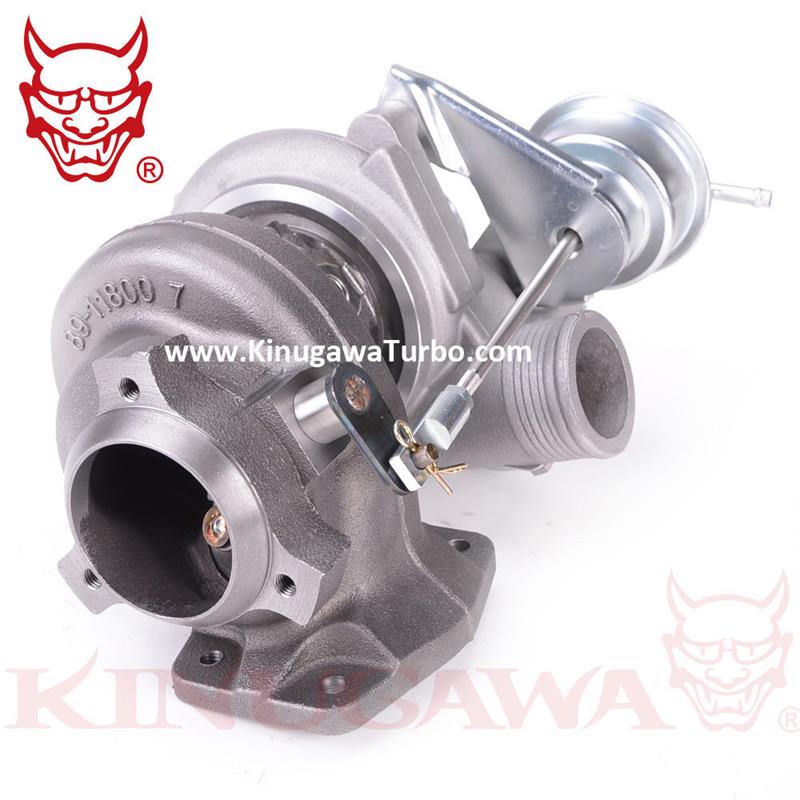

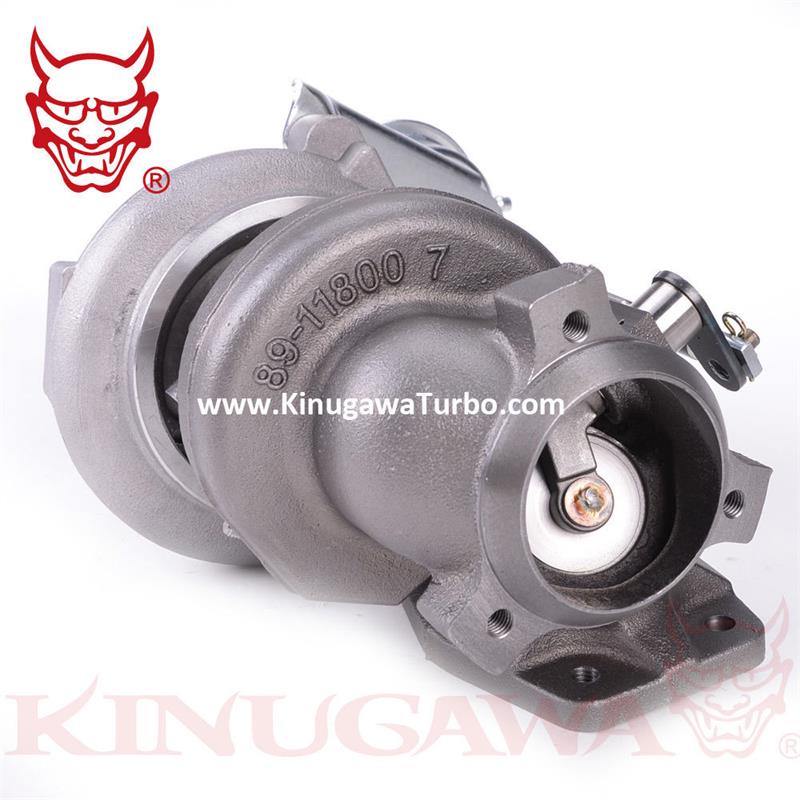

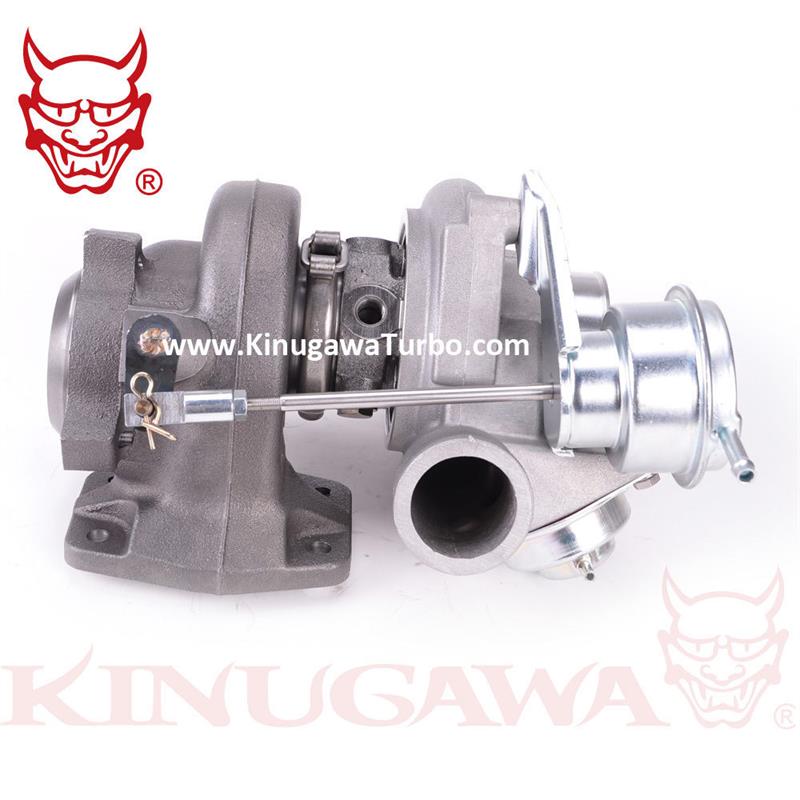

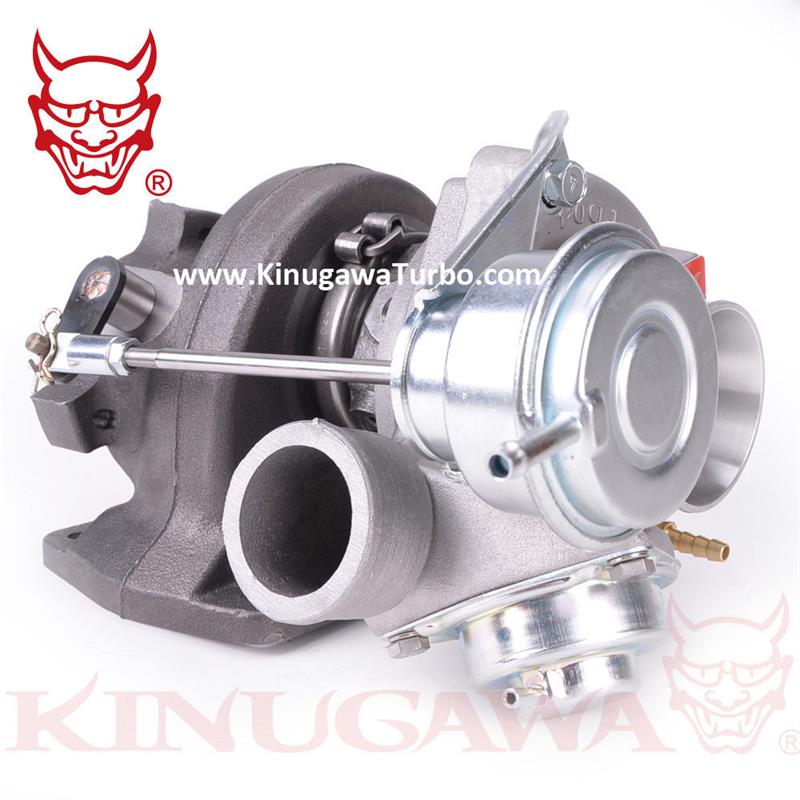

Kinugawa VOLVO 850 T5 TD04HL-16T-7 Turbocharger ( Replace TD04HL-15G)

MFD NO.

49189-01300 / 49189-01301

Wheel Spec

l   Compressor wheel : 43.4 / 56 mm ( TD04-16T)

l   Turbine Wheel: 45.6 / 52 ( TD04HL )

Turbine Housing

l   Nozzle Area : 7 cm^2

l   Turbine Inlet : T3

Turbo Situation

l   Complete CHRA was balanced on Schenck MBRS 110 the best machine in the world to make sure it is ready to offer higher top end.

l   Brand New

Bearing/Cooling

system

l   Journal Bearing / Water-cooled

Wastegate

Actuator

-       1.0 bar / 14.7 Psi actuator will go with this turbo if buyer doesn’t contact us to change it.

-       0.5bar, 0.8 bar, 1.0bar, 1.2 bar actuator are available in our warehouse, please contact us if you need to change it.

Net weight

6.5 kg

Made By

Kinugawa Turbo

Warranty

l   One Year
