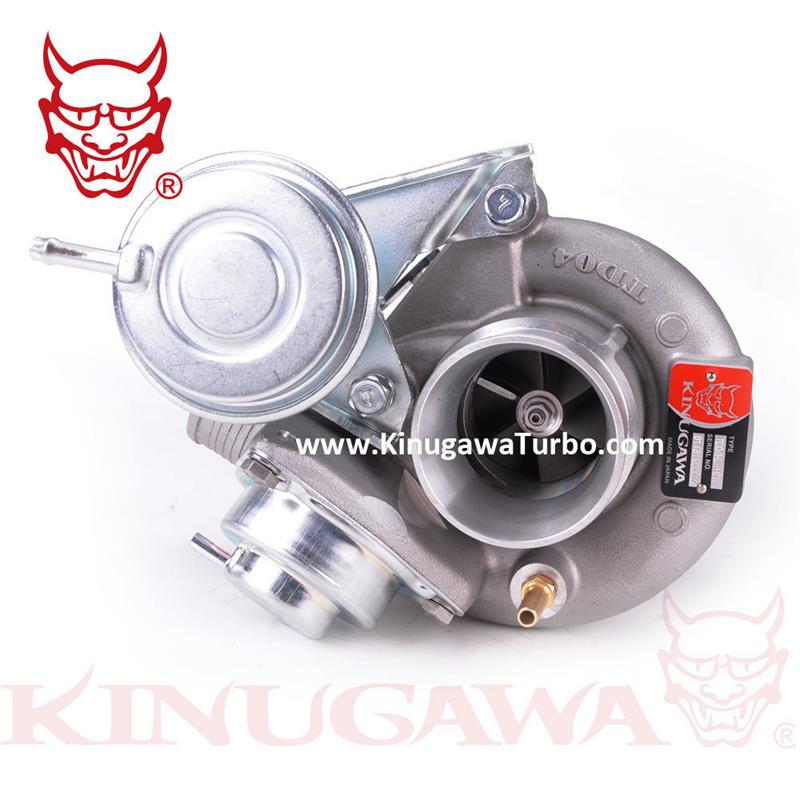

Kinugawa Turbocharger Upgrade VOLVO 850 T5 TD04HL-19T 300HP Monster B5234FT
|
Item Number: 301-02054-014
* Whole number only
|
|
|
Kinugawa VOLVO 850 T5 TD04HL-19T-7
( Upgrade 49189-01300 / 49189-01301 / 300HP Turbo)
|
|
P/N
|
301-02054-014
|
|
Item Name
|
Kinugawa VOLVO 850 T5 TD04HL-19T-7 Turbocharger
|
|
MFD NO.
|
49189-01300 / 49189-01301
|
|
Wheel Spec
|
l Compressor wheel : 46 / 58 mm ( TD04-19T)
l Turbine Wheel: 45.6 / 52 ( TD04HL )
|
|
Turbine Housing
|
l Nozzle Area : 7 cm^2
l Turbine Inlet : T3
|
|
Turbo Situation
|
l This turbo comes with larger 19T compressor wheel that will offer extra 30% airflow than stock 15G compressor wheel to get more top end.
l Complete CHRA was balanced on Schenck MBRS 110 the best machine in the world to make sure it is ready to offer higher top end.
l Brand New
|
|
Bearing/Cooling
system
|
l Journal Bearing / Water-cooled
|
|
Wastegate
Actuator
|
- 0.8 bar / 12 Psi actuator will go with this turbo if buyer doesn’t contact us to change it.
- 0.5bar, 0.8 bar, 1.0bar, 1.2 bar actuator are available in our warehouse, please contact us if you need to change it.
|
|
Net weight
|
6.5 kg
|
|
Made By
|
Kinugawa Turbo, Japan
|
|
Warranty
|
l One Year
|
|
|
|
|
