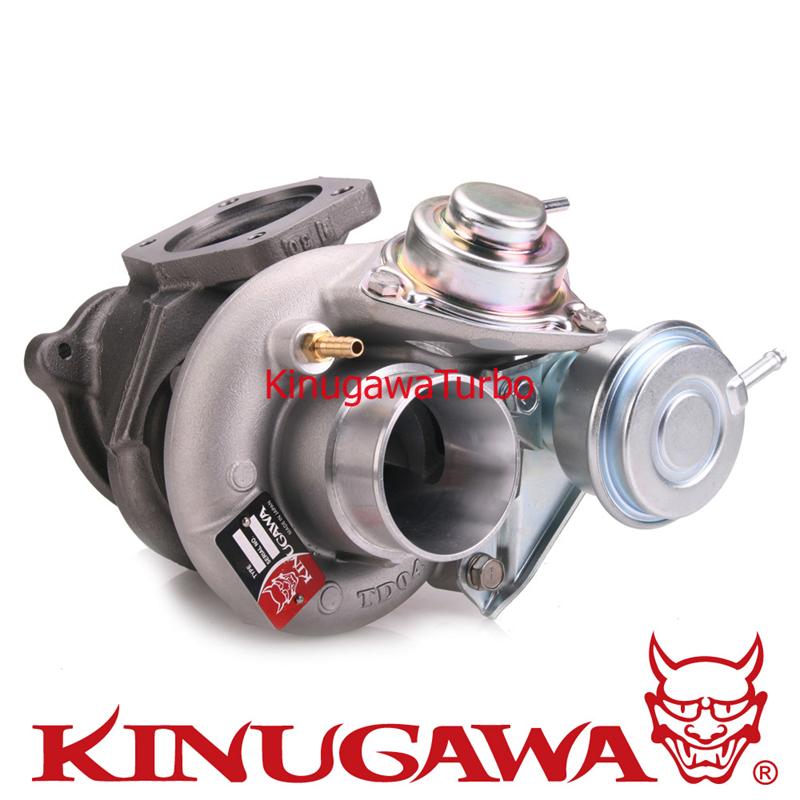

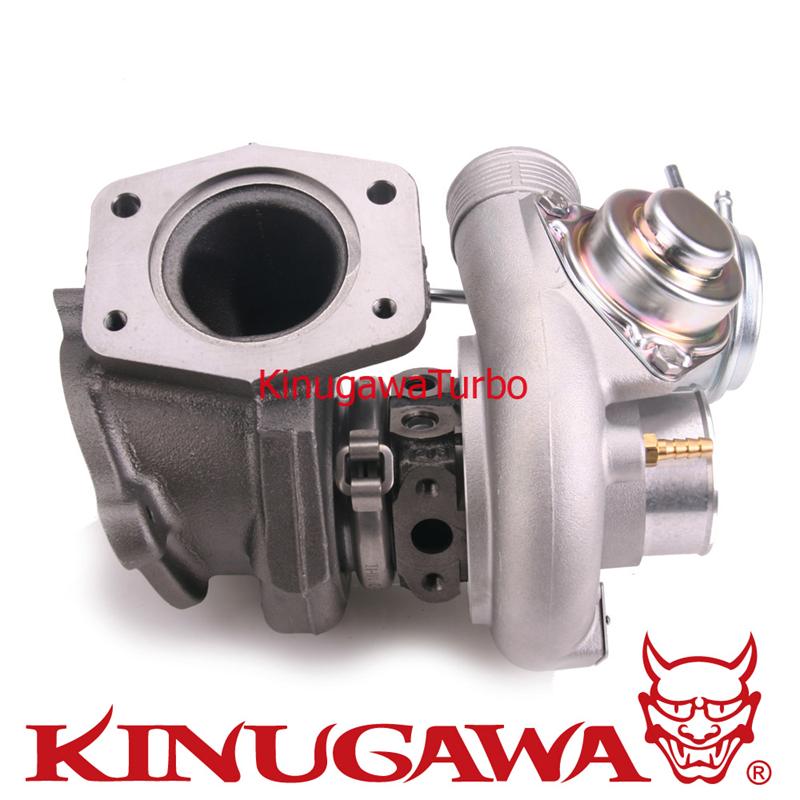

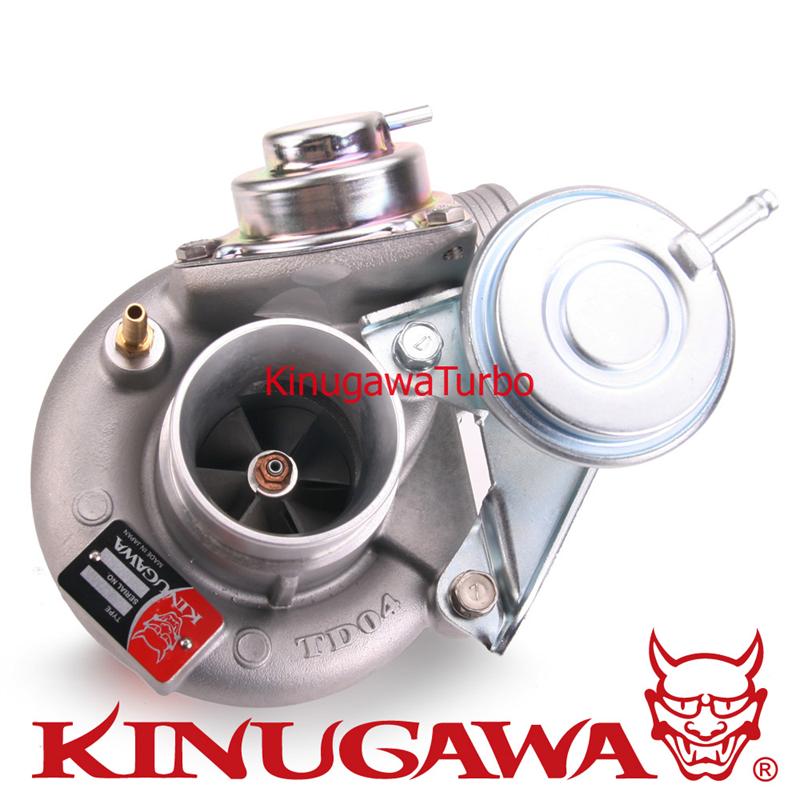

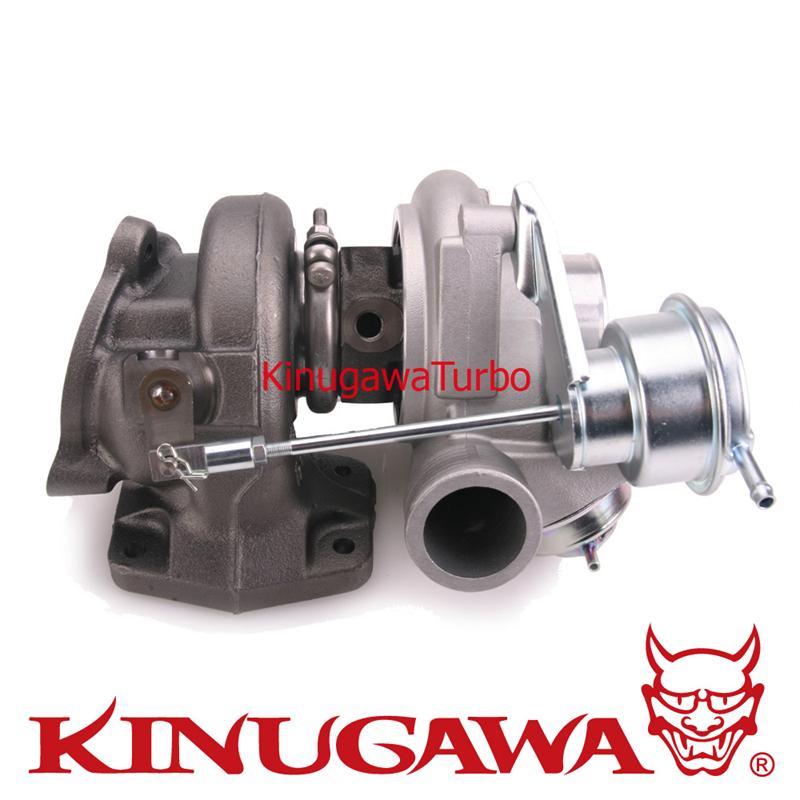

Kinugawa Turbocharger VOLVO S70 V70 TD04HL-16T w/ 7cm angle Turbine Housing Replace 49189-05211 49189-05212

Price: From $699.00 to $769.00

Manufacturer: Kinugawa

Compressor Wheel:
Turbine Wheel:

Quantity:

Application	Replace 49189-05200 49189-05210 49189-05211 49189-05212
Bearing Type	Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger.
Cooling System	Water cooled
Compressor Wheel	43.4 / 56 mm ( TD04-16T)
Turbine Wheel	45.6 / 52 ( TD04HL 11 blades)
Turbine Housing	- 7 cm^2 Angle Turbine Outlet - T3 Inlet Flange - Internal Gate
Wastegate Actuator	- 0.5Bar - 0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available, please contact us if you need it.
Condition	Brand New
Warranty	1 year
