Kinugawa Turbo GTX Billet Cartridge TOYOTA 1HD-FTE CT12B LandCruiser 17201-17040
MSRP: $699.00
Price: $599.00
You Save: $100.00
Item Number: 333-02107-006
Manufacturer Part No: 333-02107-006
* Whole number only
|
|
|
New TOYOTA Land Cruiser 1HD-FTE 17201-17040

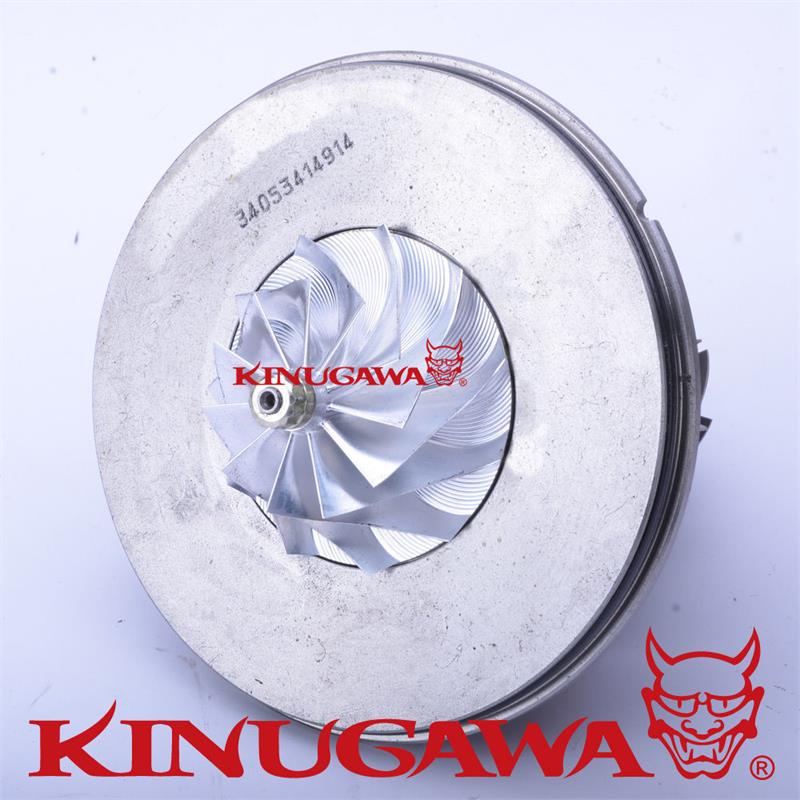

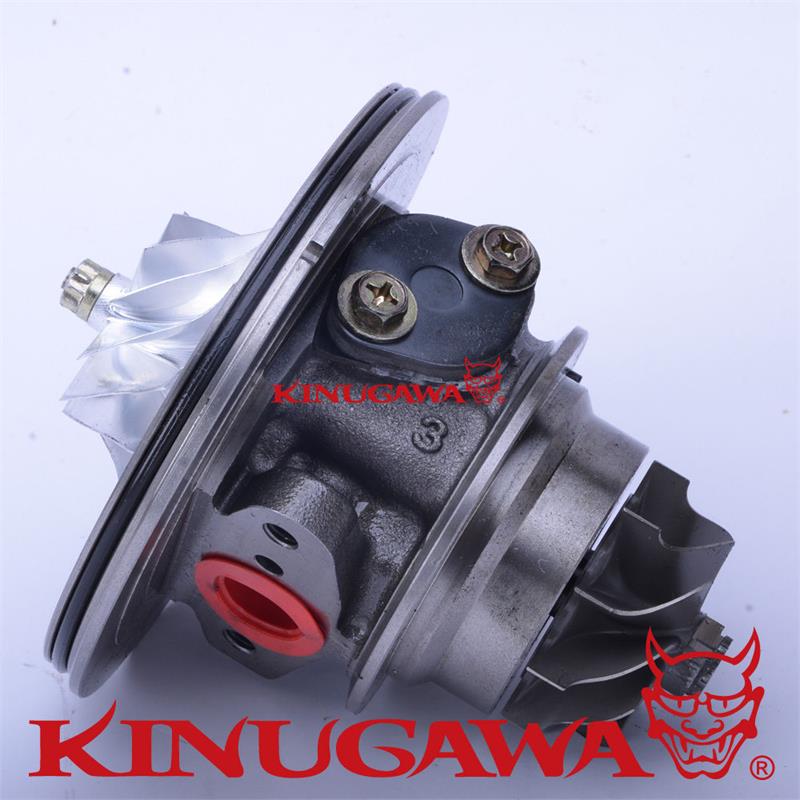

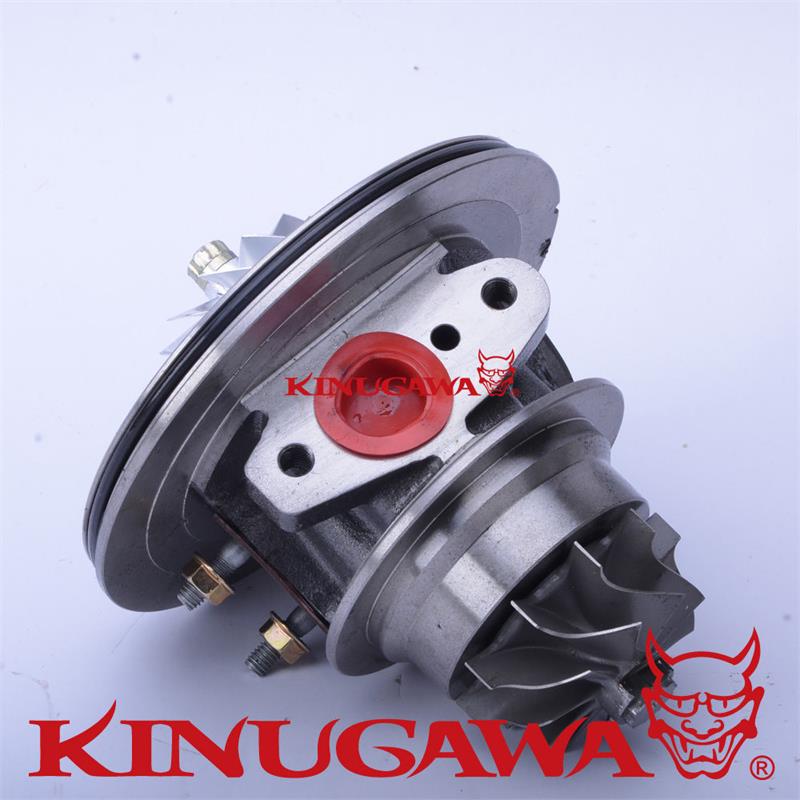

CT12B Turbo GTX Billet Cartridge(11+0 billet wheel)
|
|
Kando_Dynamic
P/N
|
333-02107-006
|
|
Item Name
|
TOYOTA CT12B / 17201-17040 Land Cruiser 4.2L Diesel Turbo GTX Billet Cartridge
|
|
Application
|
TOYOTA Land Cruiser 1HD-FTD 4.2L 17201-17040 Turbo
|
|
Product
Situation
|
Complete CHRA was test on Schenck MBRS 110 balance Machine to make sure it could work well.
Ready to work.
|
|

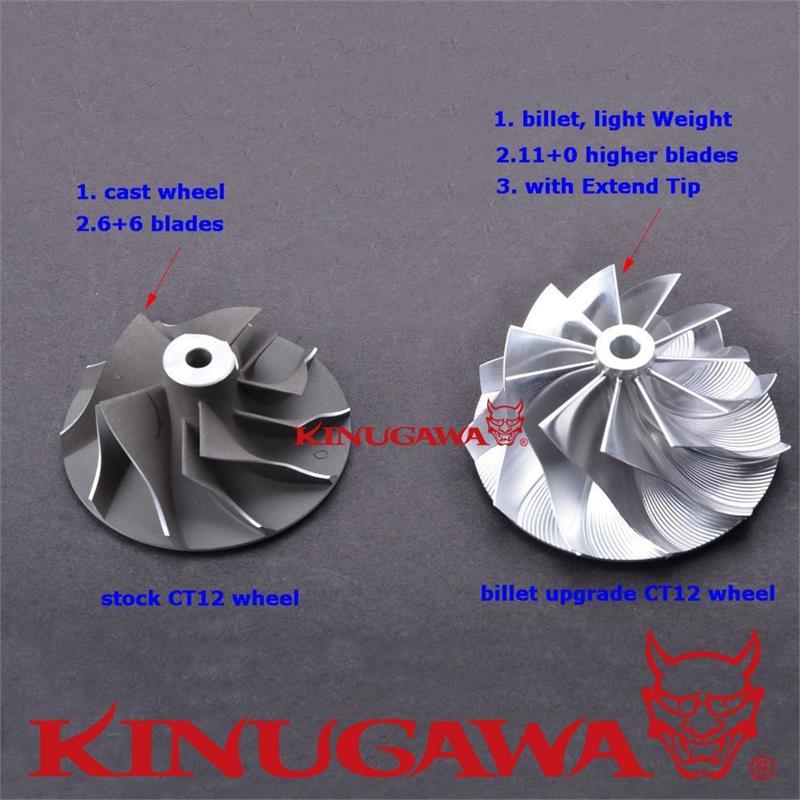

Comp. wheel
Dimension
|
Inducer Dia.: 46 mm
Exducer Dia. 65 mm (Billet GTX 11+0 Blades)
Extend Tip Exducer : 68.74 mm
Tip Height : 4.78 mm
Overall height : 30.13 mm
|
|
Turbine Wheel
Dimension
|
Inducer Dia.: 59.8 mm
Exducer Dia. 48 mm
|
|
Thrust Bearing
System
|
Journal Bearing System
|
|
Cooling
System
|
Water-Cooled system
|
|
Instruction
|
Instruction will be emailed to those who request it
|
|
Made By
|
Kinugawa Turbo, Japan
|
|
Warranty
|
One Year
|
|
|
|
|
|
|
