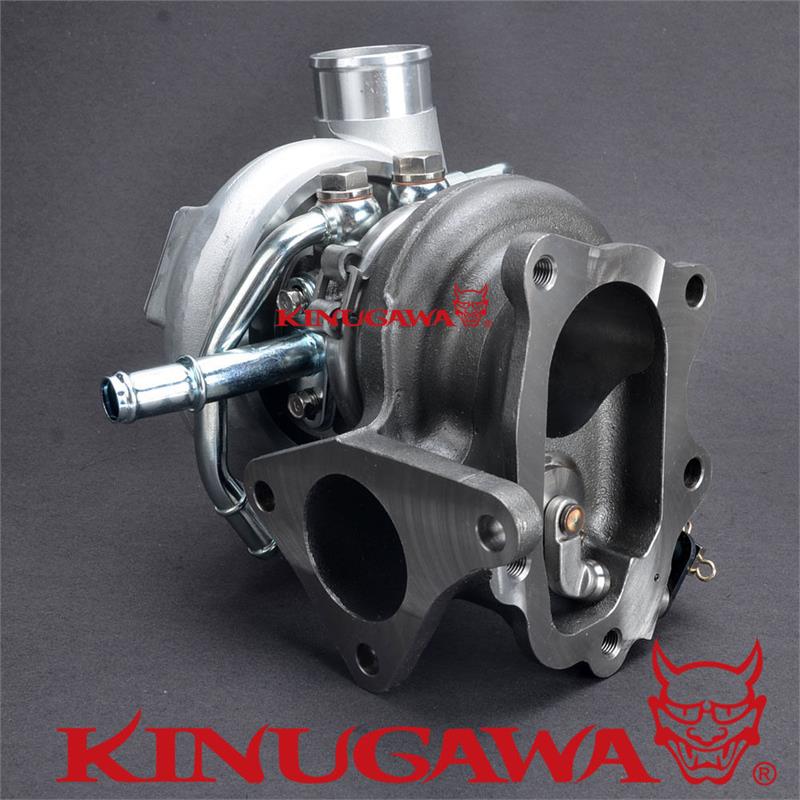

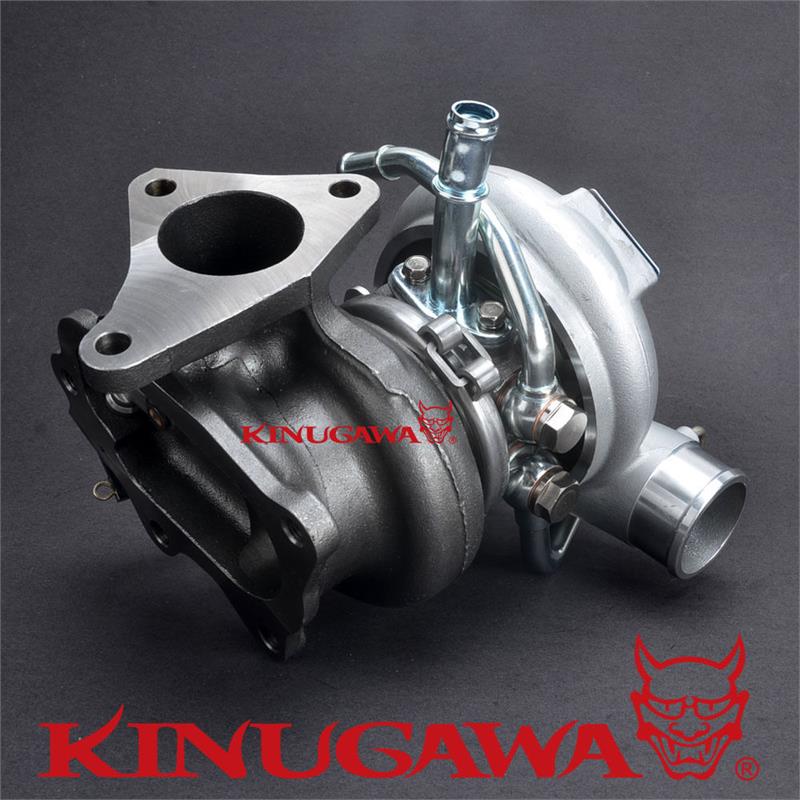

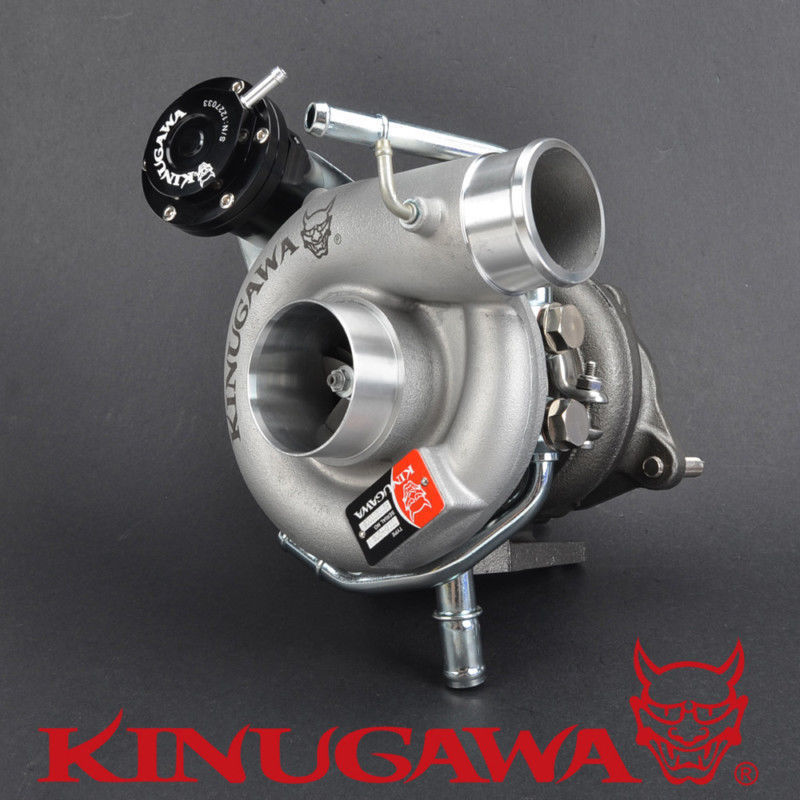

Ball Bearing Turbocharger SUBARU Impreza WRX STI TD05H 20G

Product Information

Item Name

Kinugawa Ball Bearing SUBARU WRX STI Impreza Forrester TD05H-20G Turbo

Kando_Dynamic P/N.

301-02049-030

Application

EJ20 EJ25 SUBARU IMPREZA GC8 / GDA/GDB Single Scroll Turbo

Replace Turbo

It can replace TD04L WRX directly without modification (Bolt-On Turbo)

CHRA Size:

TD05H-20G

Wheel Spec

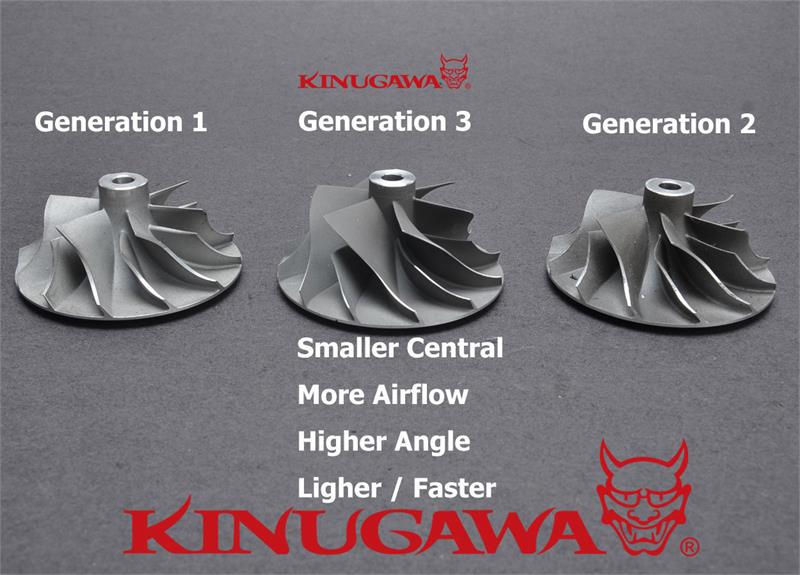

- Compressor Wheel :  52.3 / 68.0 mm

- Turbine Wheel :  49.2 / 56.0 mm (9 Blades)

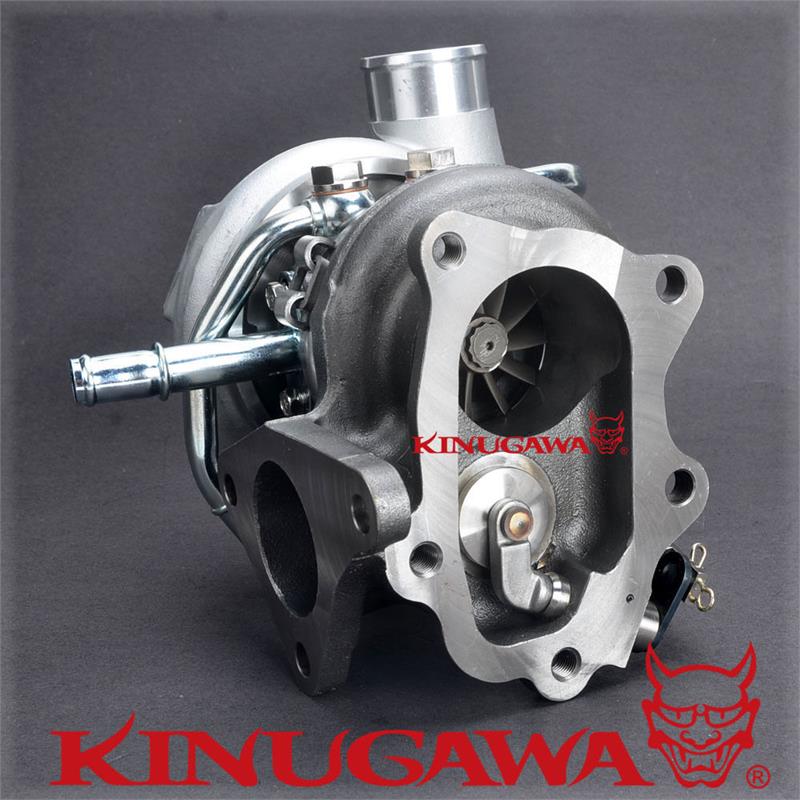

Flapper

34mm Larger Turbine Flapper

Bearing Type

Ball Bearing

Cooling  Type

Oil and Water-Cooled

Actuator Pressure

- 1 Bar / 14.7 psi spring is pre-installed on the this adjustable actuator.

Max Hp

380~420HP

Max Boost

2.8 Bar

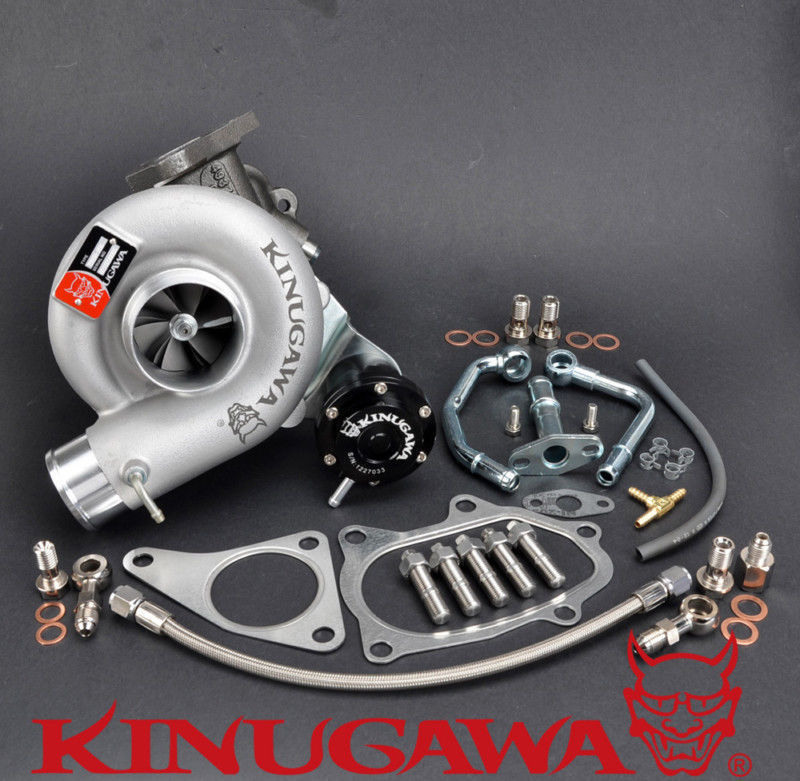

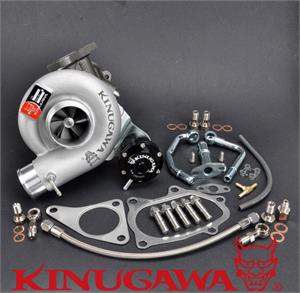

Extra parts Includes

-  1 x Oil Feed Line Kit

-  1 x Water Coolant Pipe Kit

-  1 x Turbine Inlet / Outlet Gasket Set

-   1 x Oil Return Pipe Kit

-  5 x Stud and Nut Set

Everything shown on picture is included.

Product

Situation

Brand New

Supplier

Kinugawa Turbo

Warranty

One year
