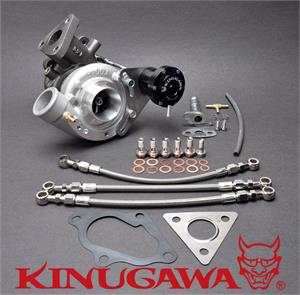

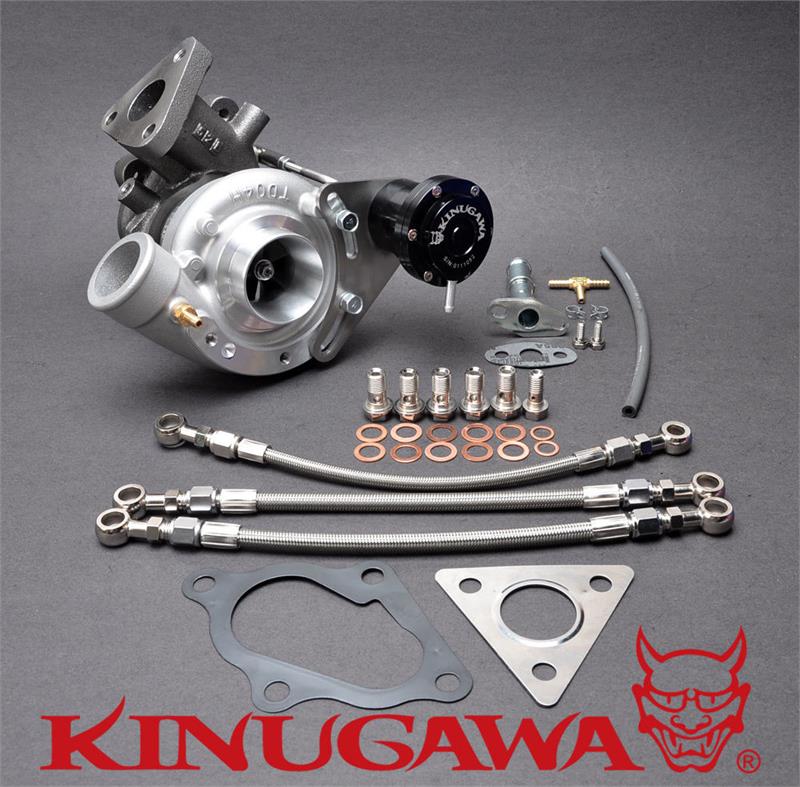

Kinugawa Turbo Kit Turbocharger TF035HM-13T w/ 4cm Hsg Fit 1.3-1.6L Patrol Engin
|
* Whole number only
|
|
|
Product Information
|
|
Item Name
|

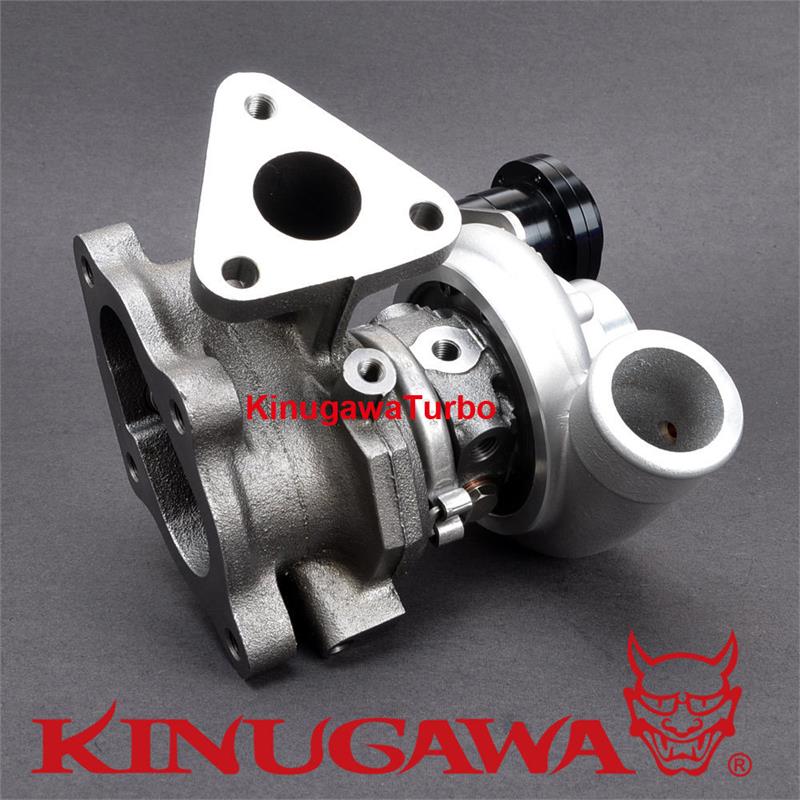

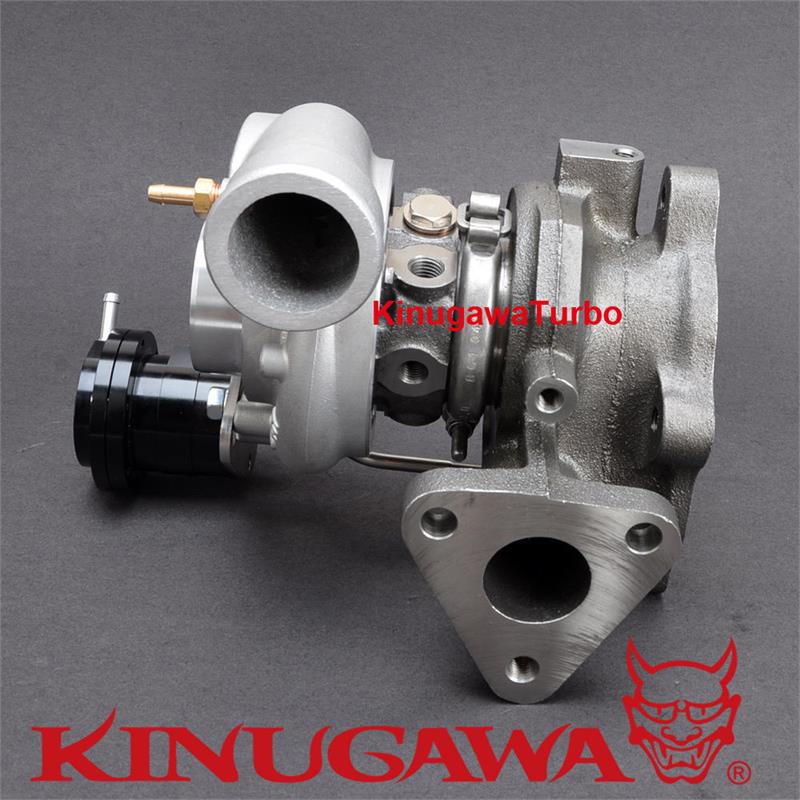

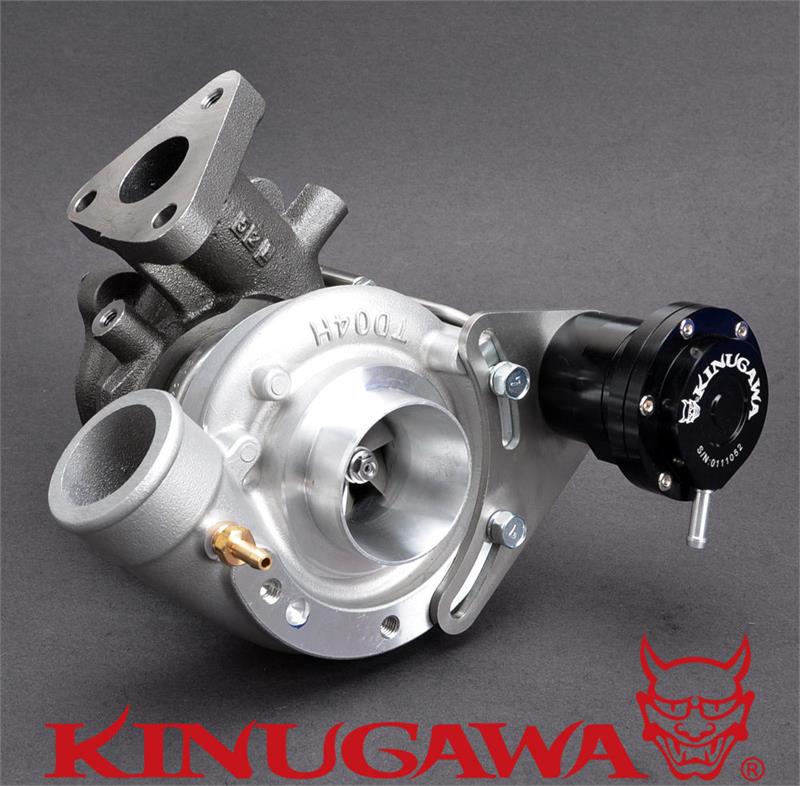

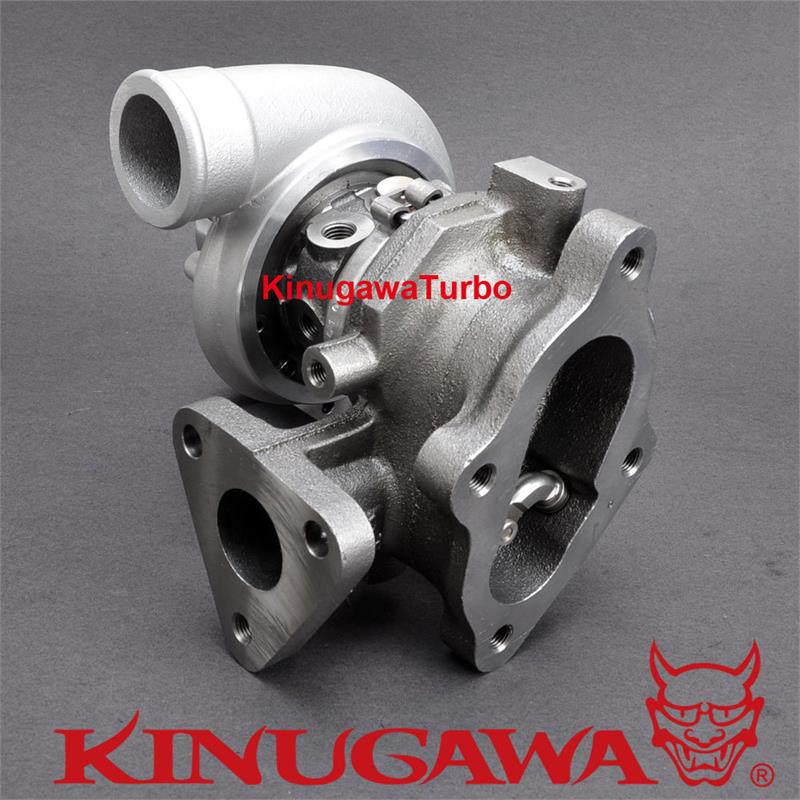

Kinugawa TF035HM-13T Oil & Water-Cooled Turbocharger with 4cm Turbine Housing
|
|
P/N.
|
|
|
Application
|
- 2.5~3.2L diesel engine
- 1.2~1.6L Patrol Engine (Red Line 4500~6500 rpm)
- 0.6~0.8L Patrol Engine (Red Line 9,000~15,000)
|
|
CHRA Size:
|
- TF035HM-13T
- Compressor wheel : 40.7 / 56 mm ( TD04-13T )
- Turbine wheel : 35 / 42.5 (TF035HM / 11 Blade Turbine wheel)
|
|
Turbine
Housing AR
|
4cm Turbine Housing
|
|
Bearing Type
|
Journal Bearing
|
|
Cooling Type
|
Oil and Water-Cooled
|
|
Actuator
Pressure
|
0.3Bar / 4~5 psi spring will be installed on this adjustable actuator.
0.5bar, 0.8bar, 1.0bar, 1.2bar, 1.5bar, 1.8bar spring is available on our ebay shop.
|
|
Made By
|
Kinugawa Turbo
|
|
Warranty
|
One Year
|
|
|
|
|
