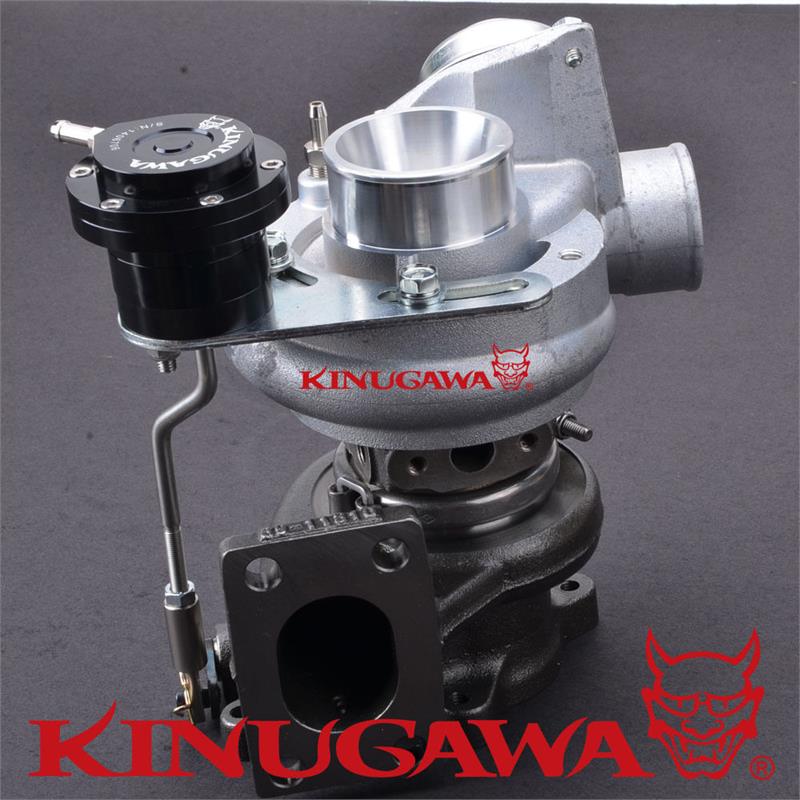

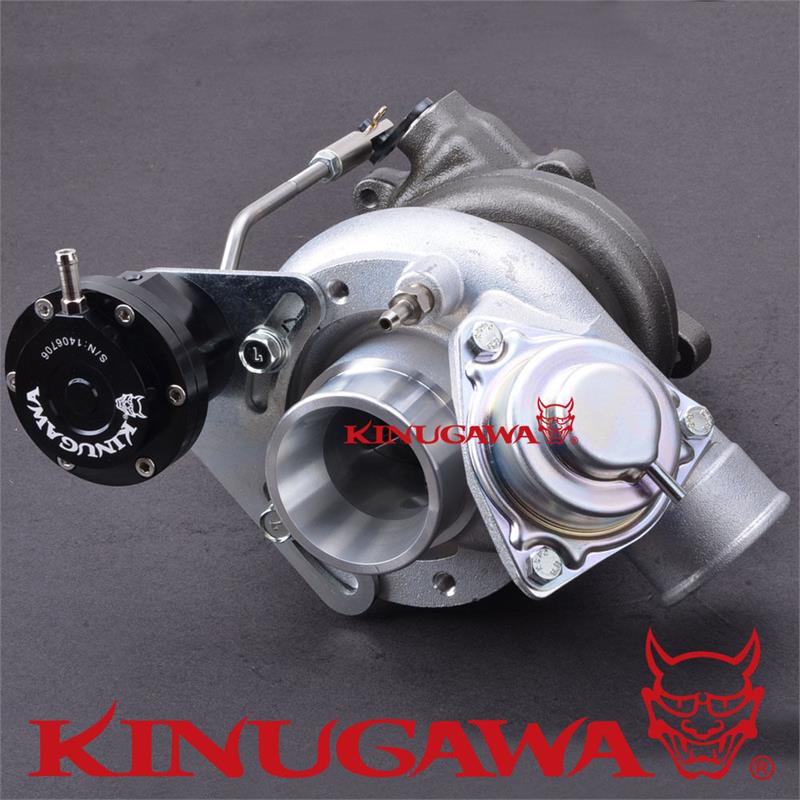

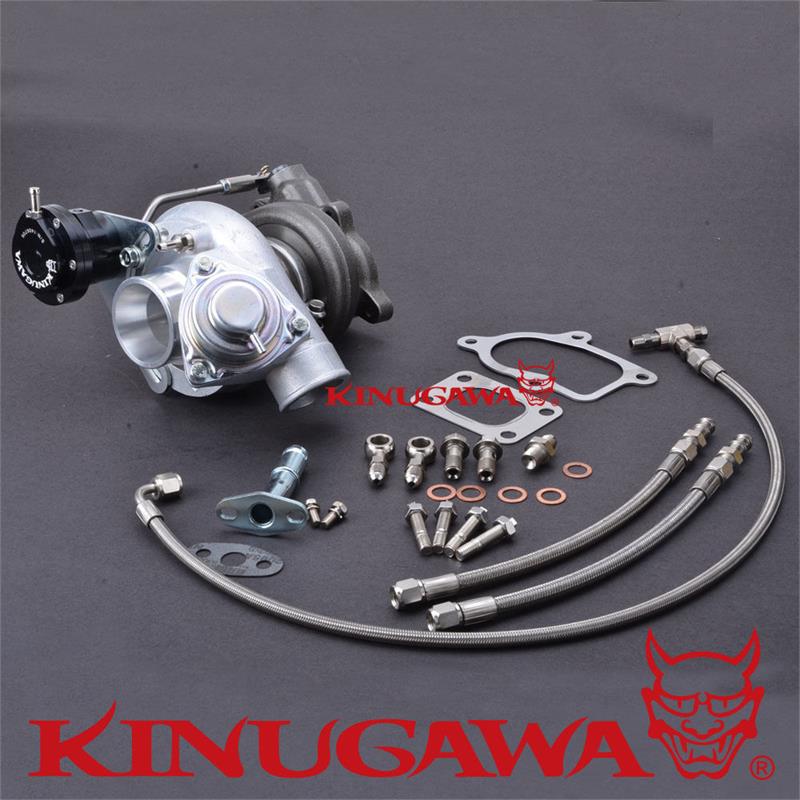

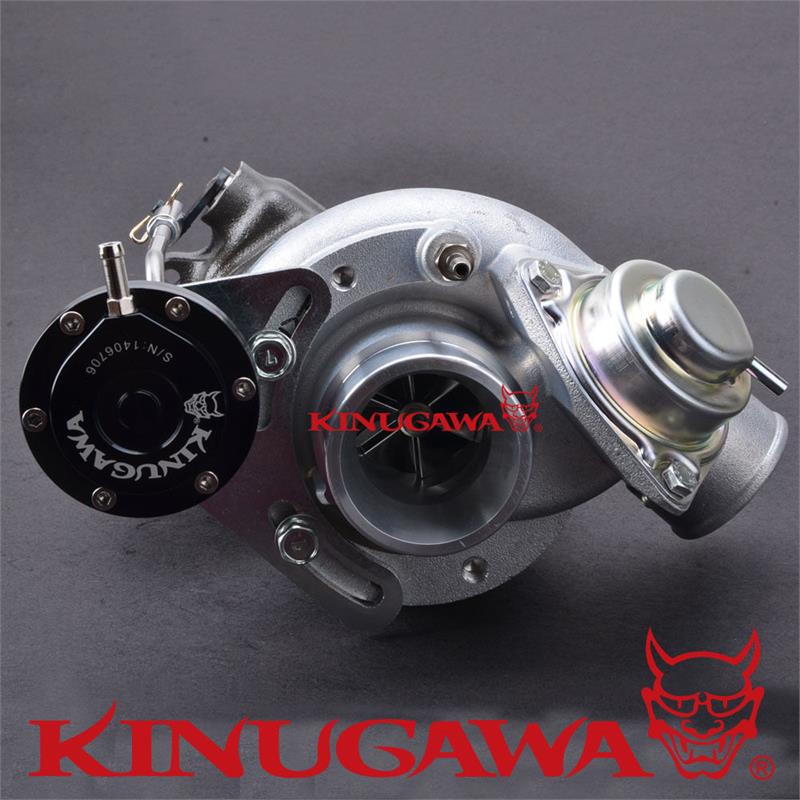

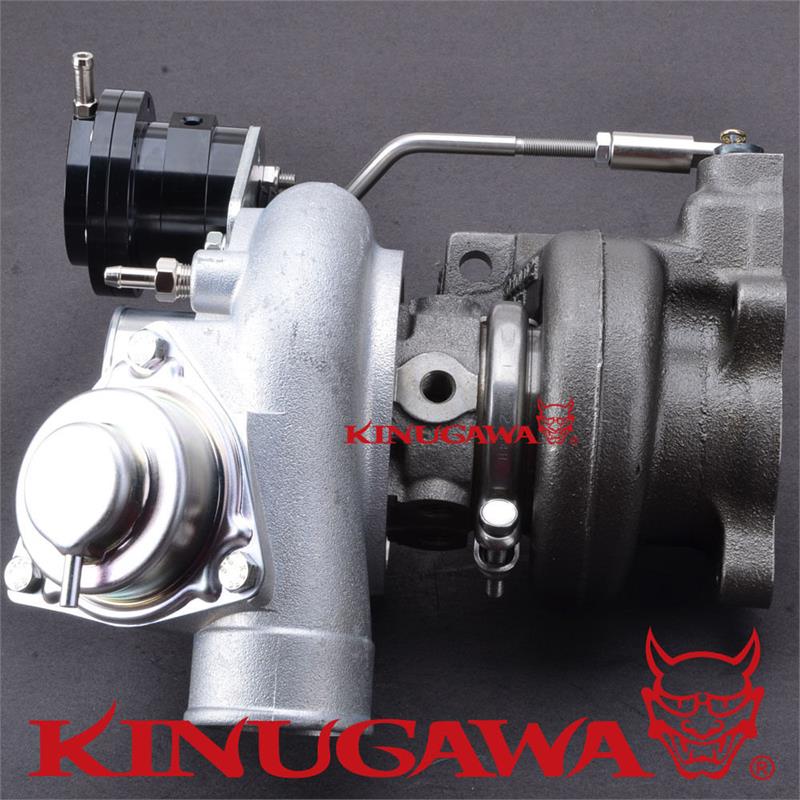

Kinugawa Turbo TD04L-19T-6cm T25 Flange w/ BOV & Billet Adjustable Actuator

Kinugawa TD04l-19T-6 T25 Flange Internal Wastegate Turbocharger with BOV

PART NO.

301-02001-378

Item Name

Kinugawa TD04l-19T Water-Cooled 6cm T25 Flange Turbocharger

Product Situation

Brand New

Application

-       1.5~2L Gasolin engine

-       3L~4L Diesel engine.

CHRA

-     TD04L-19T

-     Compressor wheel : 46.0/56 mm ( 19T )

-     Turbine Wheel : 41.3/47 mm ( TD04L)

Bearing system

-     Journal Bearing

      (Performance Thrust Bearing Kit)

-     Water-cooled system

Actuator

-     0.8 bar actuator

-     0.3 Bar, 0.5 Bar, 1 Bar, 1.2 Bar, 1.5 bar

      actuators are available, please contact us if you

      need it.

-    Actuator position can be moved easily.

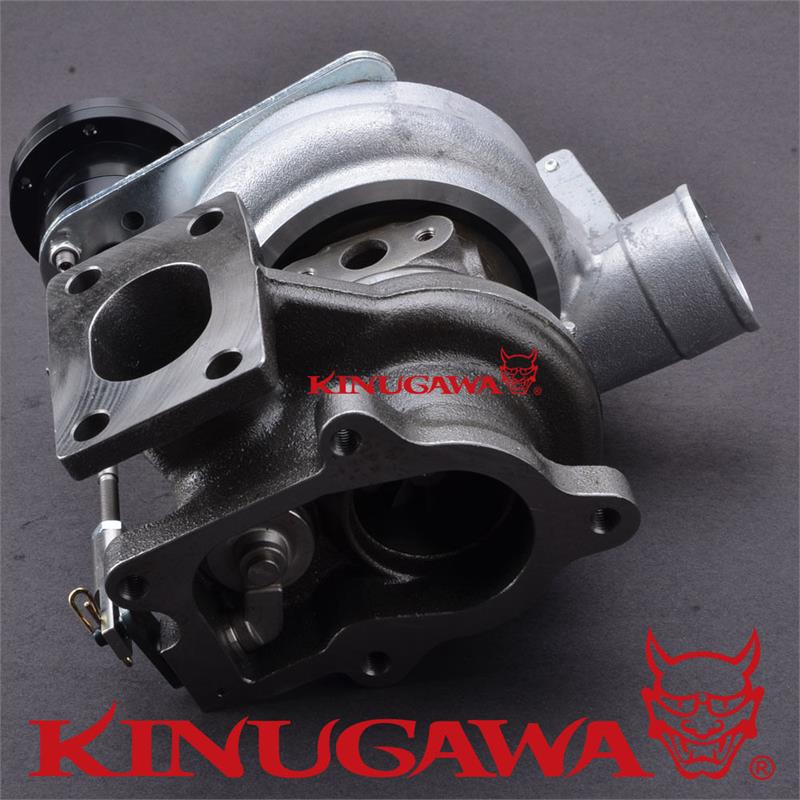

Turbine Housing

-       6cm

-       T25 Flange

Supplier

Kinugawa Turbo, Japan

Warranty

One Year
