Kinugawa Turbo Upgrade Cartridge Kit TOYOTA 1JZ-GTE CT15B w/ Garrett 60-1 400HP

Product Information

P/N

0311-840-017 (303-02307-001)

Item Name

TOYOTA 1JZ-GTE Upgrade CT15B CHRA Kit with Garrett 60-1 compressor wheel and Compressor Housing

Product

Situation

- Brand New

- Complete cartridge was balanced on Schenck MRBS 110 to make sure it can work very well.

- Ready to work.

- This CHRA kit can offer 400~450 HP easily.

Compressor

Wheel Size

60 / 76mm (Garrett 60-1 Wheel)

Turbine

Wheel

Turbine Wheel: 48 / 59.8 mm ( Stock Turbine Wheel)

Application

- Upgrade TOYOTA 1JZ-GTE single CT15B turbo to Garrett 60-1 spec and get extra double air flow to gain HP

- Bolt on and fit stock turbine housing and actuator directly without modification.

Parts Includes

- 1 x CT15B Compressor Housing machined to fit Garrett 60-1 compressor wheel.

- 1 x CT15B Cartridge with Garrett 60-1 wheel.

- 1 x Circlip between cover and Core.

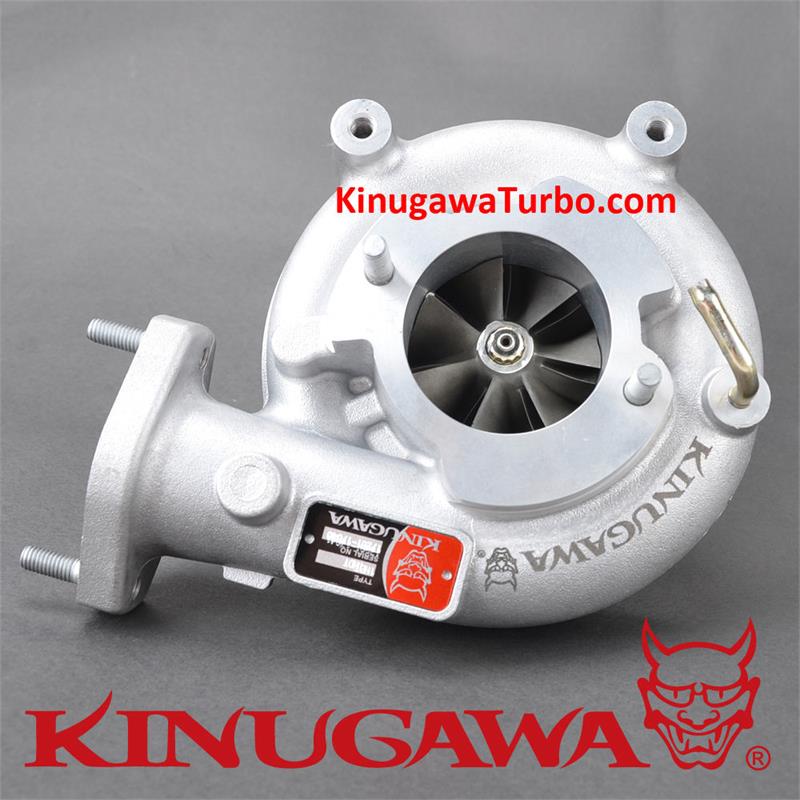

( Everything shown pic # 1 is included)

Supplier

Kinugawa Turbo

Warranty

One year
