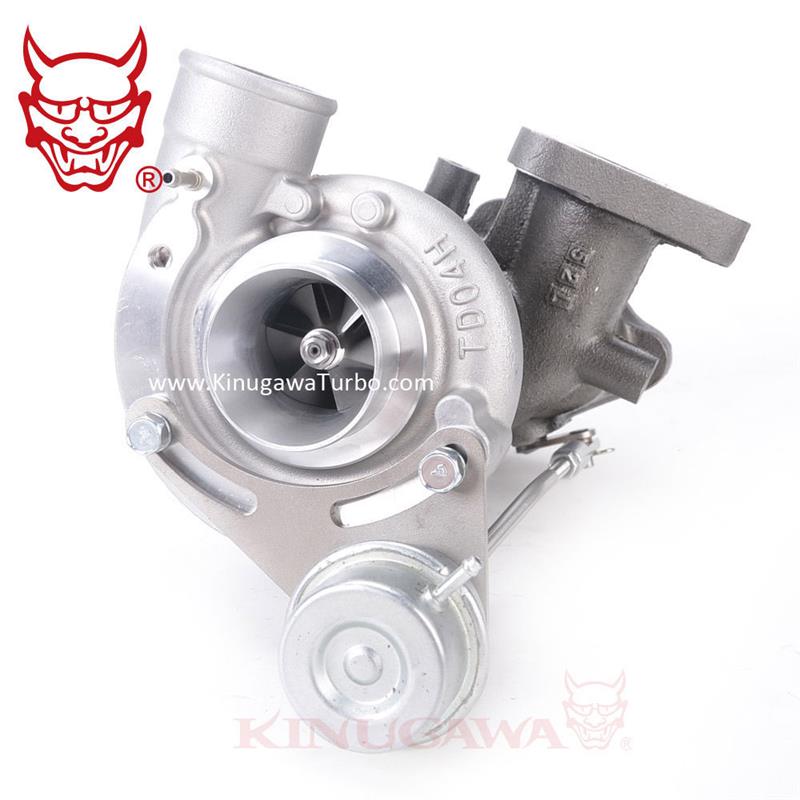

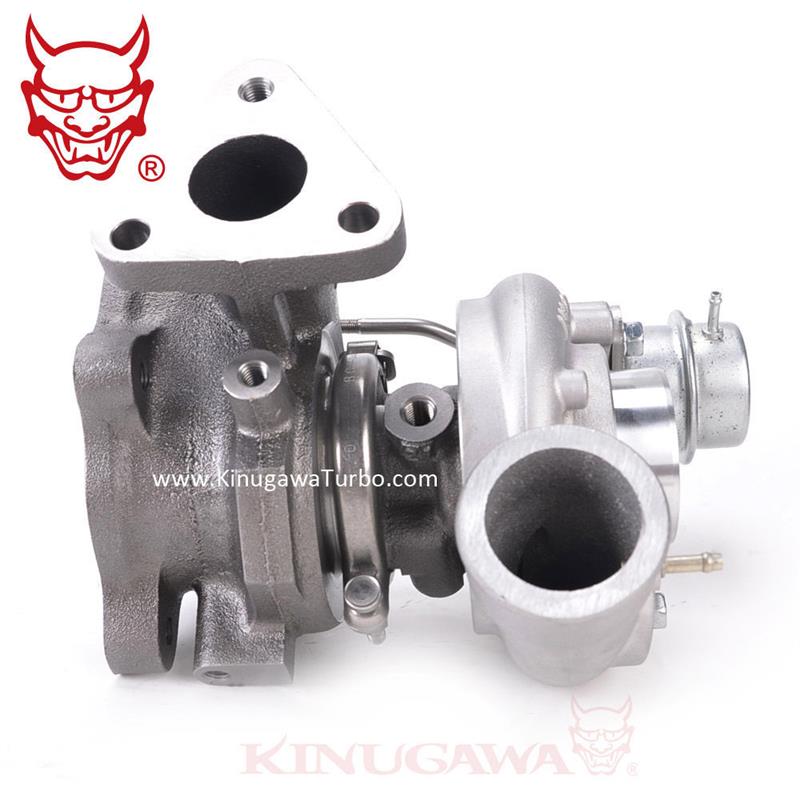

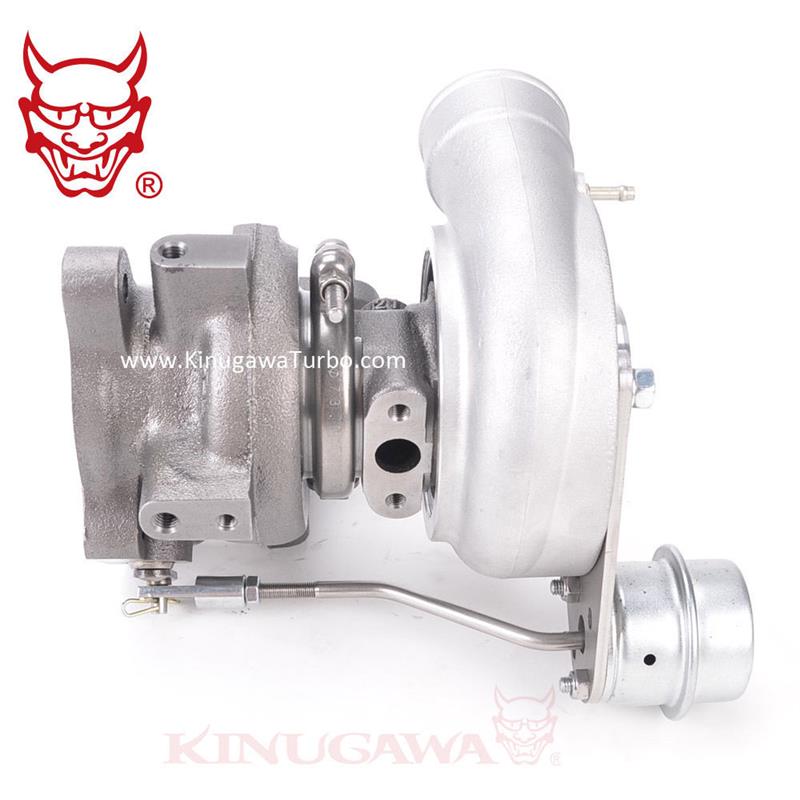

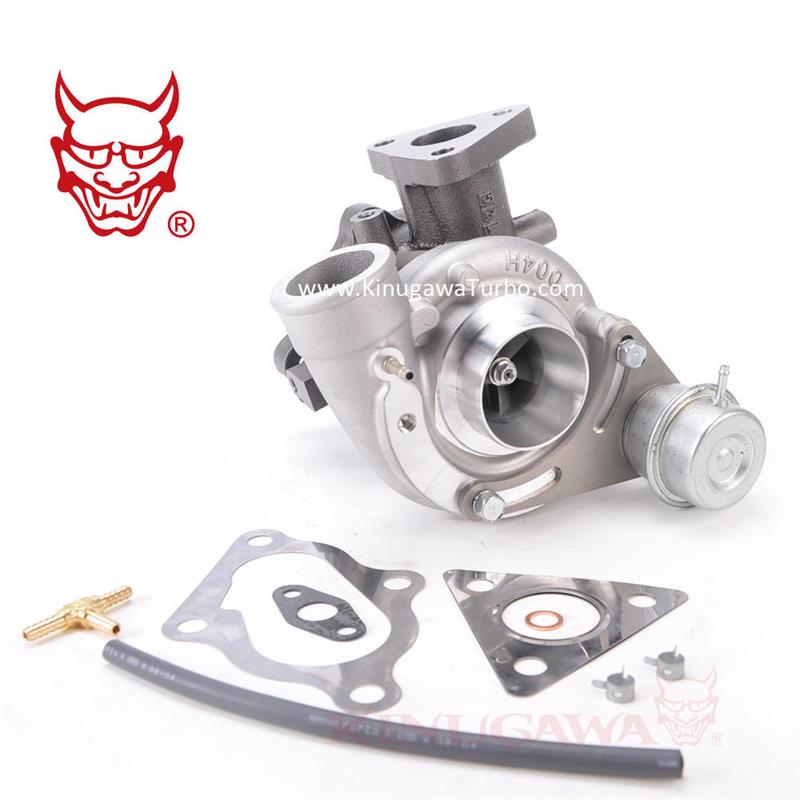

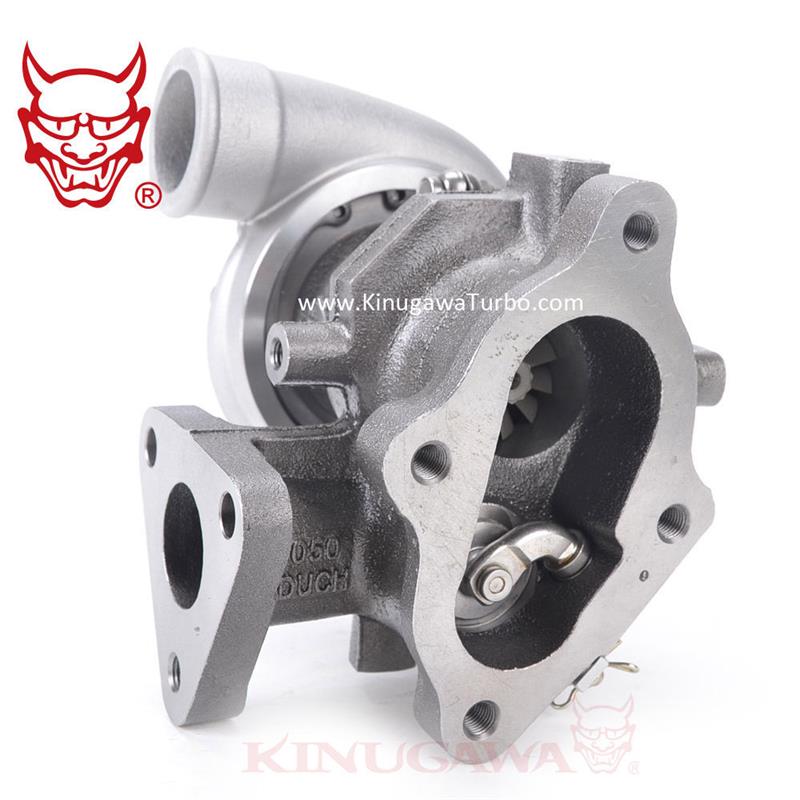

Kinugawa Upgrade Turbocharger 94-97 4M40T Pajero TD04L-15T Oil-Cool & Billet W/G

Kinugawa Mitsubishi 4M40T Pajero / Delica 2.8T

Upgrade TD04L-15T Turbocharger with adjustable actuator

Item Name

Kinugawa TD04L-15T Upgrade 4M40T / 2.8L Delica / Pajero Oil-Cooled Turbo

P/N.

0100-813-151 (301-02034-024)

Application

- 94~97 Mitsubishi 4M40T/2.8L Pajero, Delica, Shogun.

- Upgrade stock TD04-12T to TD04L-15T Monster.

- Get extra 60~70% torque and HP than stock TD04-12T turbocharger.

- Brand new bolt on turbocharger.

Replace Turbo

49377-03033, 49377-03050, 49377-03040. 49377-03033, 49377-03043…

CHRA Size:

- TD04L-15T

- Compressor wheel : 42 / 56 mm ( TD04-15T )

- Turbine wheel : 41.3 / 47 (TD04L Turbine wheel)

Turbine

Housing AR

5cm Turbine Housing ( Upgrade Type)

Bearing Type

Journal Bearing

Cooling Type

Oil-Cooled

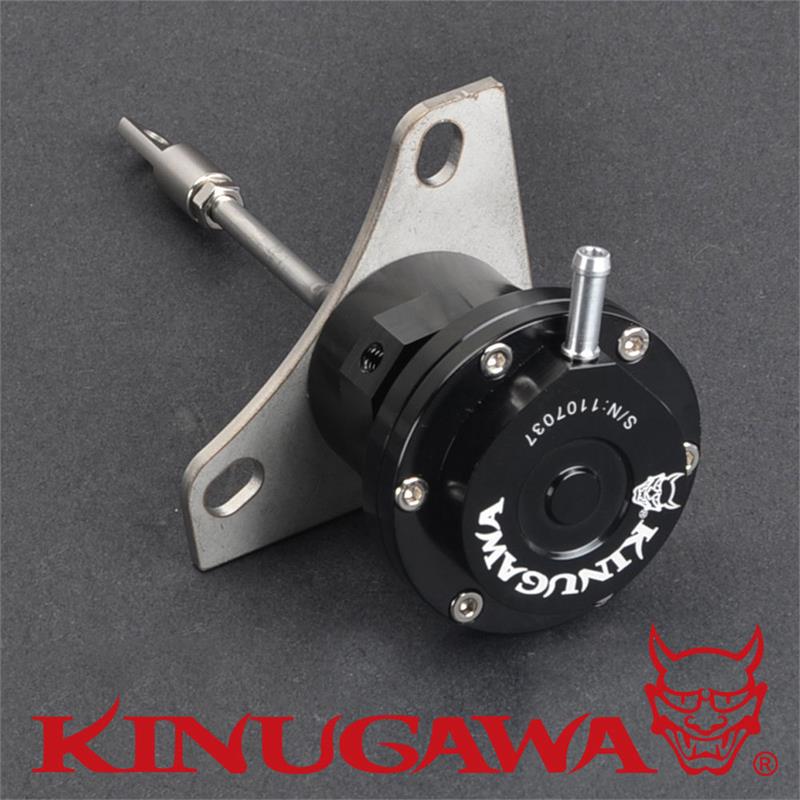

Actuator

Pressure

1Bar / 14~15 psi

We also could offer 0.3,0.5,0.8,1.2,1.5,and 1.7 bar spring, please contact us if you need to change it.

Net Weight

6kg

Warranty

One Year
