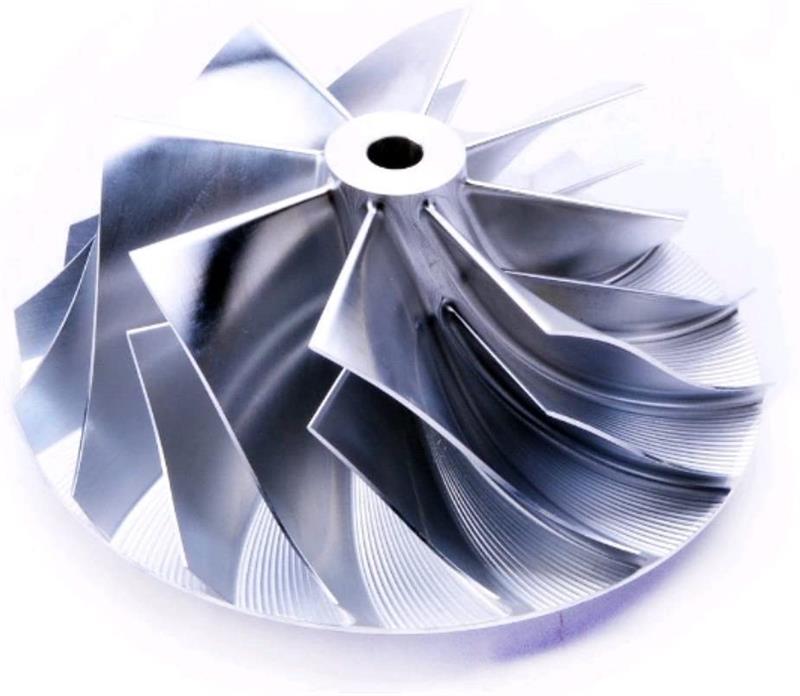

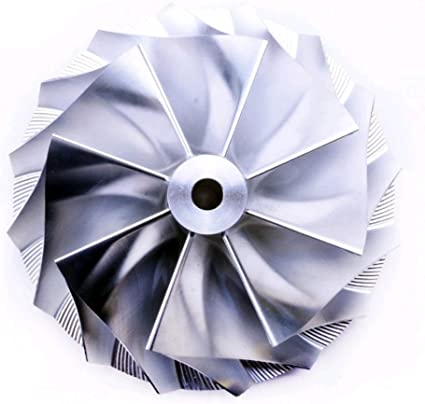

Kinugawa Billet Turbo Compressor Wheel Holset HX82 7075 made (102.75/152.04) 8+8

Product Information

P/N.

405-9901X-892

Item Name

Kinugawa Billet Turbo Compressor Wheel HX82 7075 made (102.75/152.04) 8+8

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

-　Nose Dia: 20 mm，
-　Inducer Dia. : 102.75 mm，
-　Exducer Dia. : 152.04 mm，
-　Extend Tapered Tip Exducer Dia. : 160.24 mm，
-　Tip Height: 8.1 mm，
-　Super Back Height: 12.88 mm，
-　Overall Height: 66.17 mm，
-　Bore Size : 11.12 mm，
-　Racing or Non-racing : Racing，
-　STD or customs size : Customs，
-　Blade : 8+8，
-　Trailing angle : 60

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.

We can combine shipping for all items and will send invoice when we receive all of your order.
