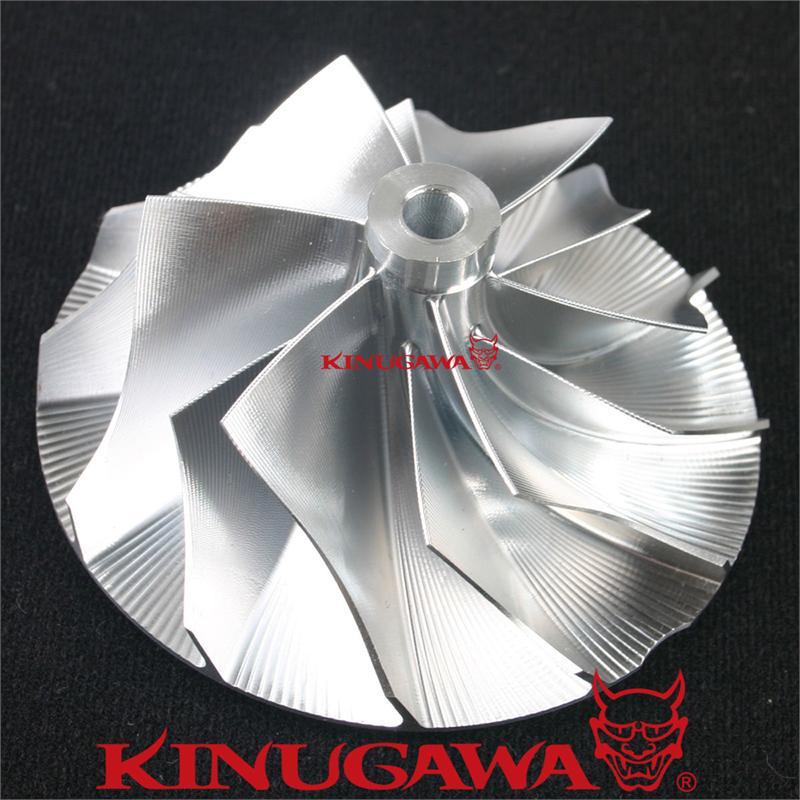

Billet Turbo Compressor Wheel Garrett GT4094R (67.8/94mm) Trim 52 /6+6 Ball Bear

Product Information

P/N.

405-99013-718

Item Name

Kinugawa Garrett GT4094R Ball Bearing Turbo Billet Compressor Wheel 67.77/94 mm, Trim 52 / 6+6 Blade

Application

Replace wheel number: 449521-0007

Fit CHRA: 751450-0016

Fit Turbo # : 751470-0019, 751470-0020, 751470-0021, 751470-0022

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 67.77 mm

Exducer Dia. : 94.00 mm

Trim: 52

Extend Tapered Tip Exducer dia : 100.50 mm

Tip Height: 6.63 mm

Super Back Height: 5.55 mm

Bore: 7.48 mm

Blade : 6+6

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.

We can combine shipping for all items and will send invoice when we receive all of your order.
