Kinugawa Rebuild Kit for Mitsubishi TD025 / TD03 Turbo Super back 1401402753

Turbo Rebuild kit  For MITSUBISHI TD02 TD025 TD03 Turbo Rebuild / Repair Kit

PART No.

411-02011-002

Item Name

Turbo Rebuild kit For Mitsubishi TD02 TD025 TD03 Turbo( super Back)

Product Situation

Brand New

Application

Mitsubishi TD02 TD025 TD03 Turbocharger ( super back)

EX:

-   2000~ DEUTZ 1.7L  TD025L3-08T-3.3 49173-06300 Turbo

-   1999~ Rover 75 2.0 CDT w/ BMW engine TD025L3-08T-3.3

    49173-06100 Turbo

-   VOLVO S80 T6 2.8L TD03 49131-05001 / 49131-05101 Twin Turbo

-   VOLVO XC90 T6 2.9L TD03 49131-05001 / 05101 Twin Turbo

-   BMW E89 E90 E91 E92 E93 135i 335i N54  TD03L4-10TK3

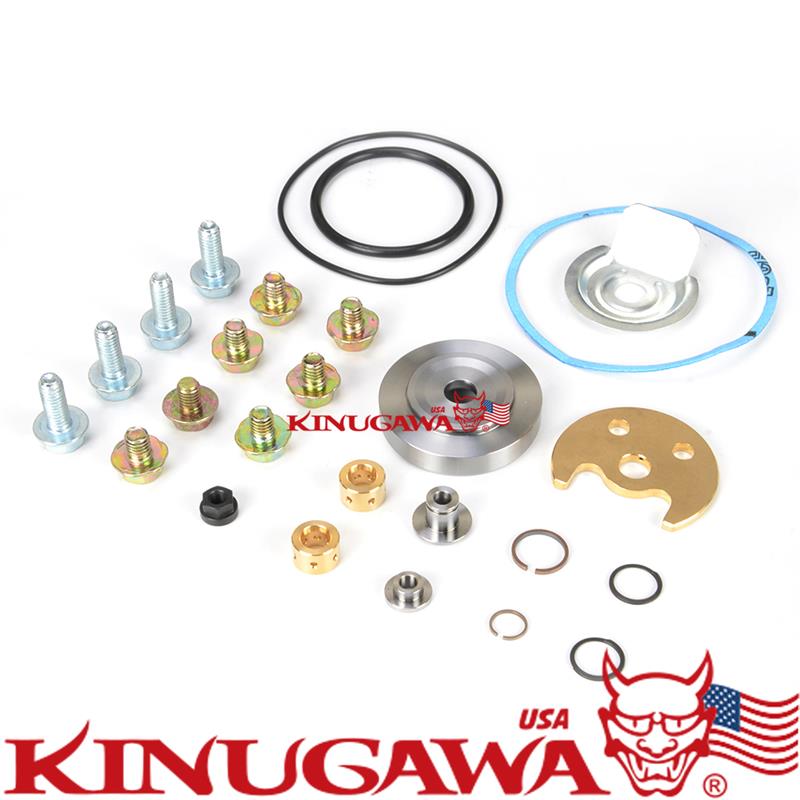

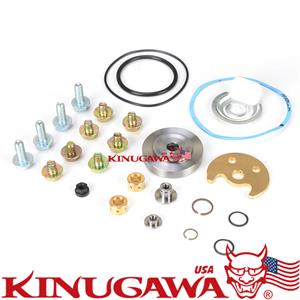

Includes

-   1 x Shaft Nut (Compressor End - Left Direction Rotating)

-   1 x Snap Ring (Insert Retainer)

-   1 x Insert (Seal Plate)

-   1 x Piston Ring (Compressor End)

-   1 x Oil Deflector

-   1 x Thrust Flinger /Sleeve

-   1 x Small "O" Ring (Seal Plate) (Black)

-   1 x Thrust Bearing

-   1 x Thrust Ring / Collar

-   2 x Journal Bearing

-   2 x Retaining Ring (Journal Bearing) (Black)

-   1 x Big "O" Ring (Bearing Hsg to Comp. Hsg)

-   1 x Gasket (Oil Return)

-   1 x Piston Ring (Turbine End)

Made By

Kinugawa Turbo

Instruction

Instruction will be emailed to those who request it.
