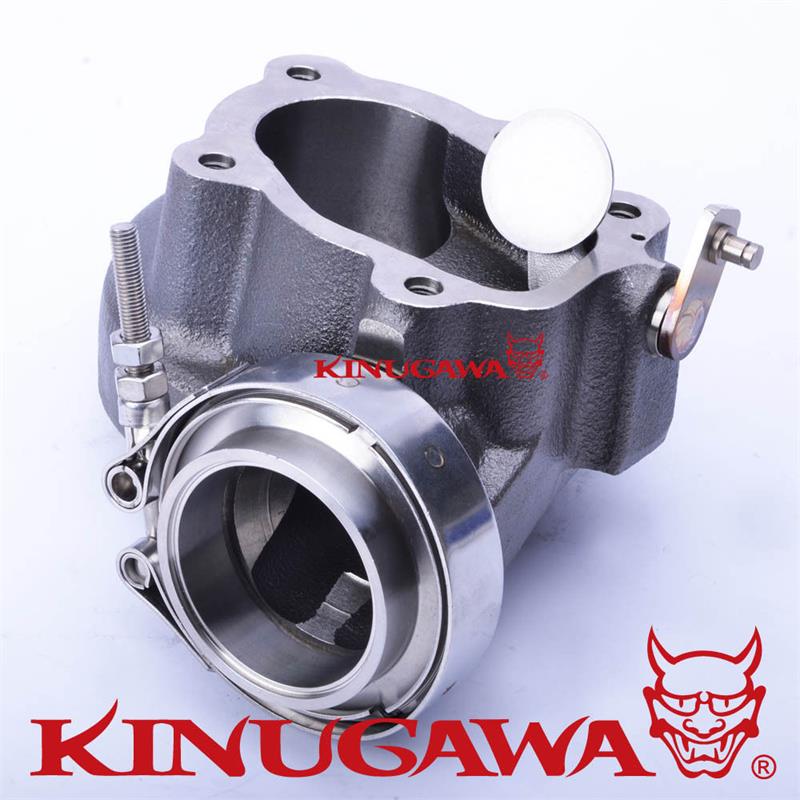

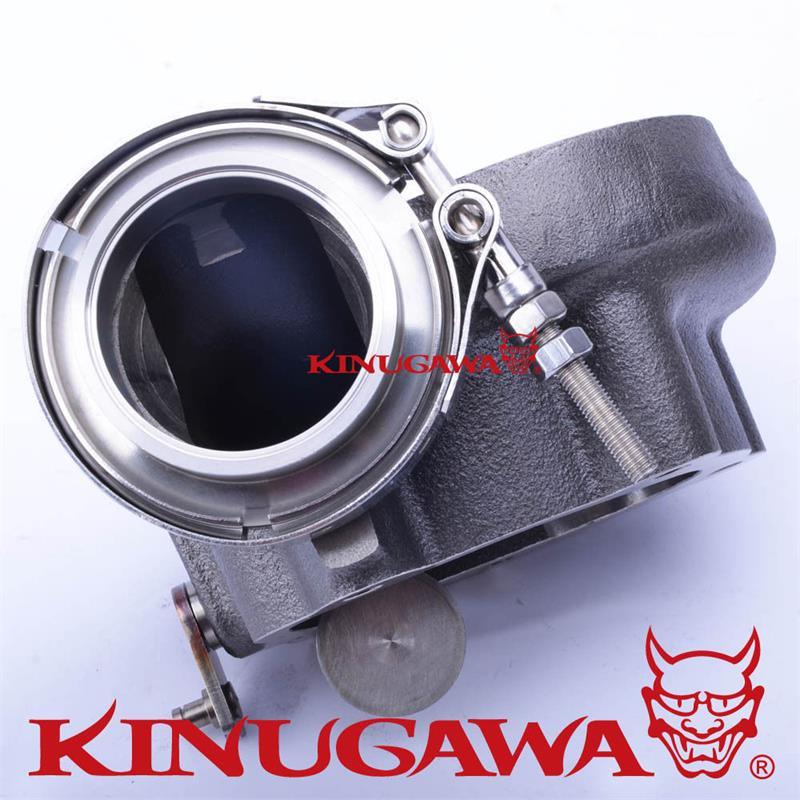

Turbine Housing Kinugawa Garrett GT2554R GT2560R A/R .64 Trim 62 Internal Gated

Kinugawa Garrett GT25R GT2554R GT2560R Turbo Turbine Housing

 (53.0 mm / Trim 62 / AR.64)w/ Install Kit

(V-band Turbine Inlet / 5 Bolt Internal Gated Turbine Outlet)

P/N.

Item Name

Garrett GT25R / GT2554R / GT2560R Turbine Housing w/ Install Kit

Application

-      Garrett GT2554R, GT2560R Turbocharger

-      Turbo P/N : 471171-3, 466541-1, 466541-4

-      CHRA P/N : 446179-12, 446179-24, 446179-38

Wheel Spec

53.0 mm / Trim 62

Turbine A/R

0.64

Turbine Inlet

V-Band Type

Turbine Outlet

5 Bolt / Internal Gated

Product

Situation

Brand New

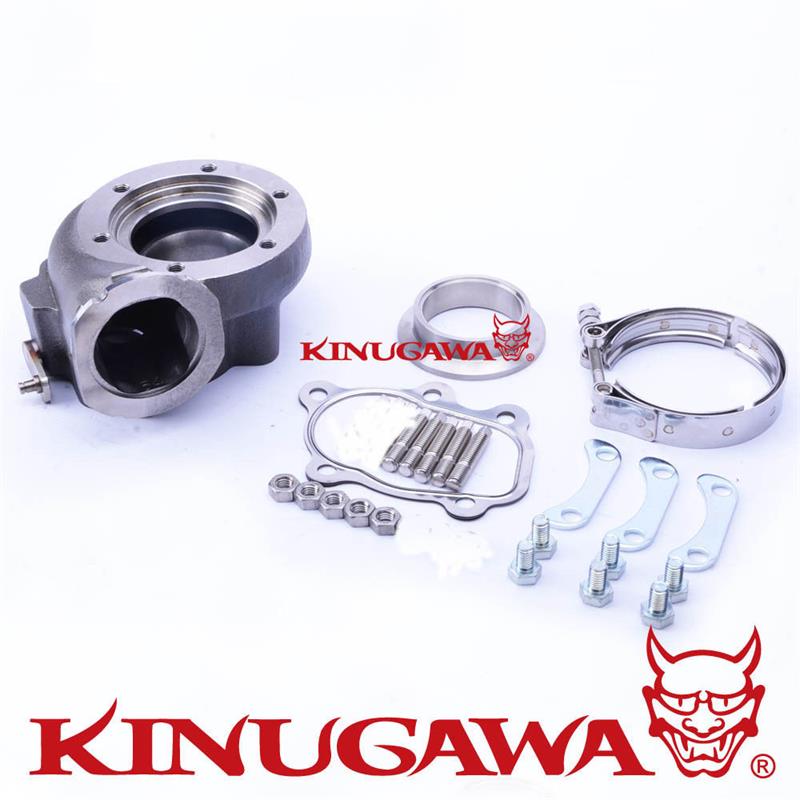

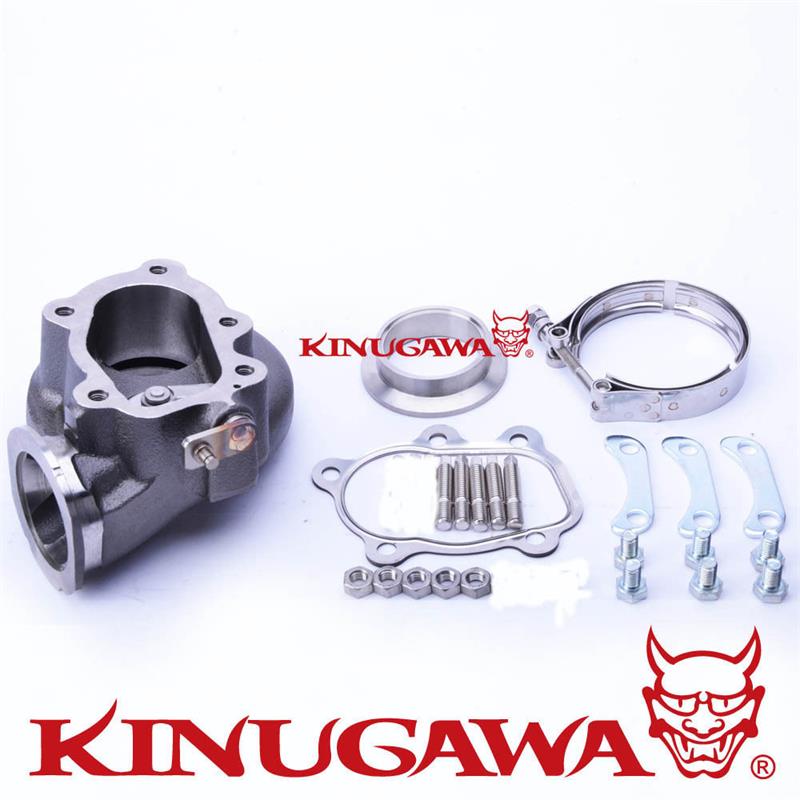

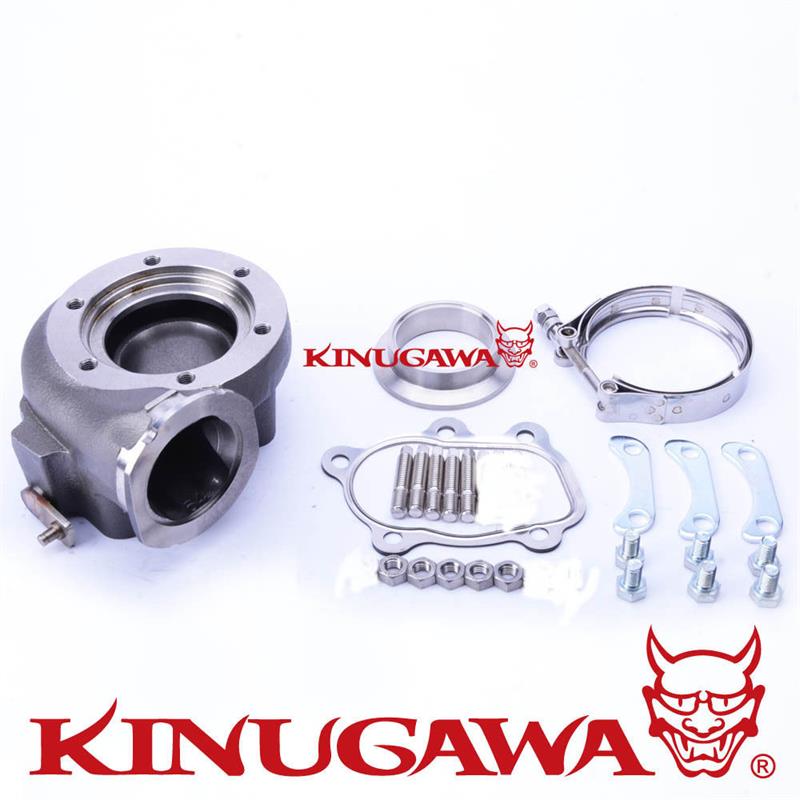

Included

-      1 x Turbine Housing

-      1 x Turbine Inlet Clamp & Adapter Set

-      1 x Turbine Outlet Gasket

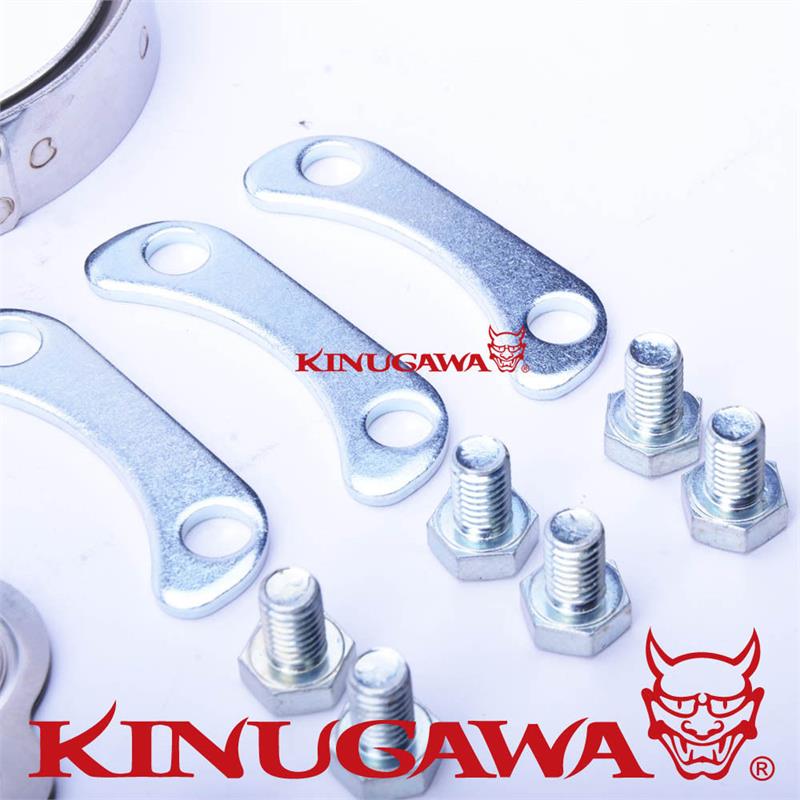

-      3 x Lock Plate

-      6 x Bolt for Lock Plate

-      5 x Stud

-      5 x Nut for Stud

Made By

Kinugawa Turbo
