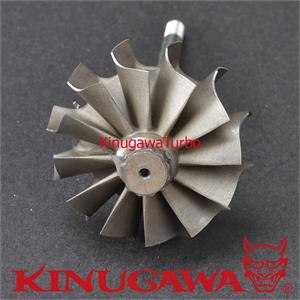

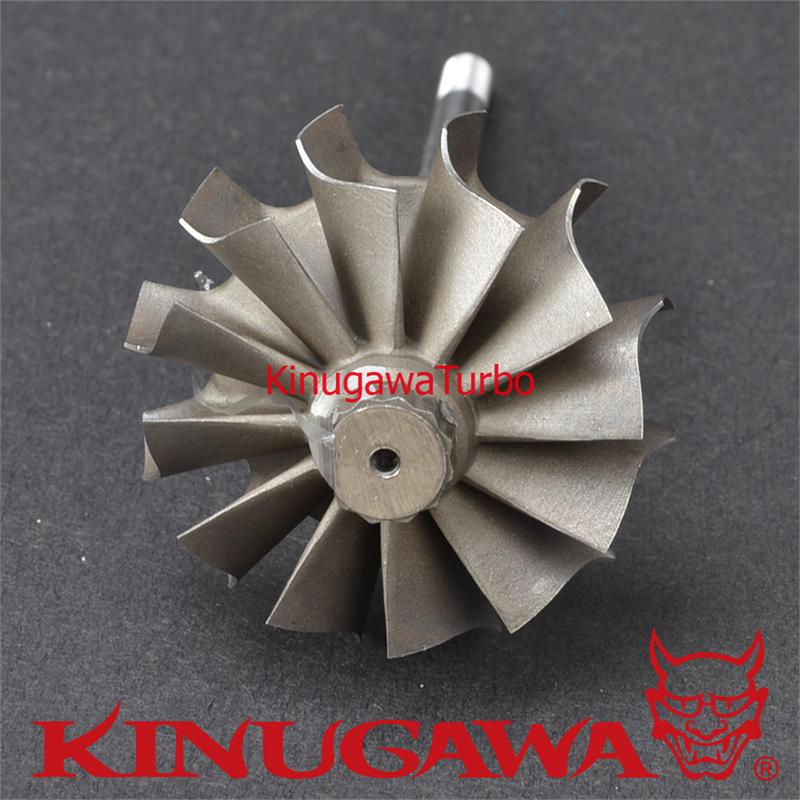

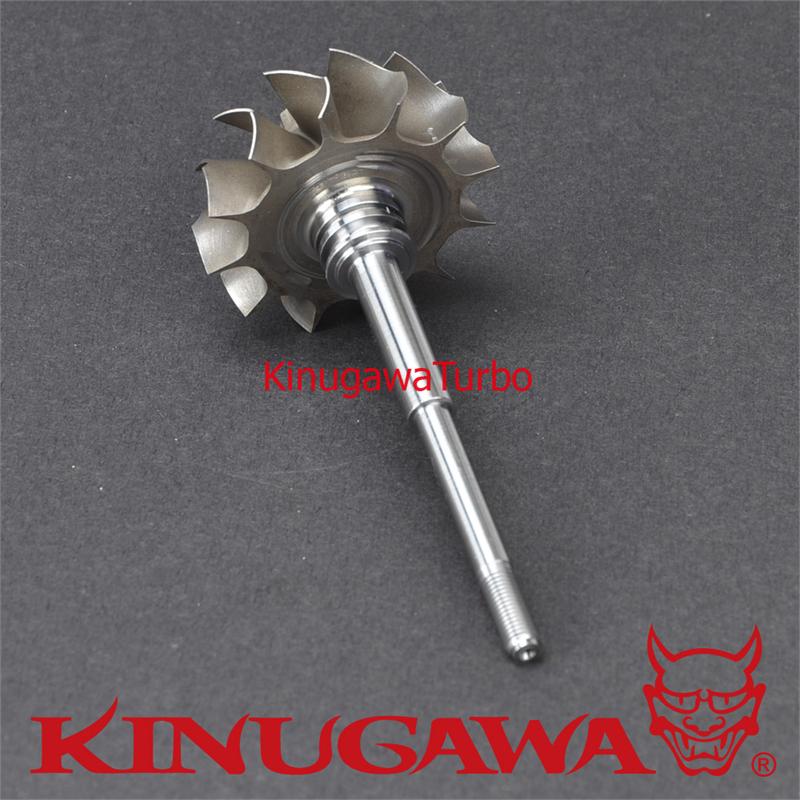

Turbine Wheel Mitsubishi DSM 1G TD05H 14B 16G 18G 20G
|
Item Number: 406-02015-002
* Whole number only
|
|
| Application |
- Mitsubishi 4G63T DSM 1G / EVO 1~3 : 49178-01010, 49178-01030, 49178-01400, 49178-01410, 49178-01420, 48178-01450, 49178-01460, 49178-01470
- Starion: 49178-01750, 49178-01760,
- Mitsubishi Diesel: 49178-02305, 49178-02350, 49178-02385,
- VOLVO : 49178-03000, 49178-03010
- HYUNDAI : 49178-03123
- KUBOTA : 49178-03200, 49178-04000
- SUBARU STI TD05H : 49178-06200, 49178-06290, 49178-06300, 49178-06310
- Alfa Romeo: 49178-07200
- Mitsubishi EVO 10 : 49178-01610, 49378-01620
|
| MHI P/N |
49178-30230 |
| Dimension |
- Inducer: 55.8 mm / 2.19 inch
- Exducer: 49.1 mm / 1.93 inch
- Turbine Shaft OD: 9 mm / 0.35 inch
- No. of Blades : 12
|
| Wheel Material |
Upgrade Inconel 718 for performance ( Not 713 Normal Low Inconel ) |
| Balance |
Balanced on Schenck / Ready to use |
|
|
|
|
|
|
