Turbo Billet Compressor Wheel for Garrett GT15-GT25 46.5/59mm / Point Milling / 7+7

Kinugawa P/N

- 405-99012-5F1

APPLICATION

- Replace wheel number :

- Fit CHRA :

- Fit Turbo # :

WHEEL SPEC

- Nose OD. : 10.14mm

- Inducer OD: 46.50mm

- Exducer OD: 59.00 mm

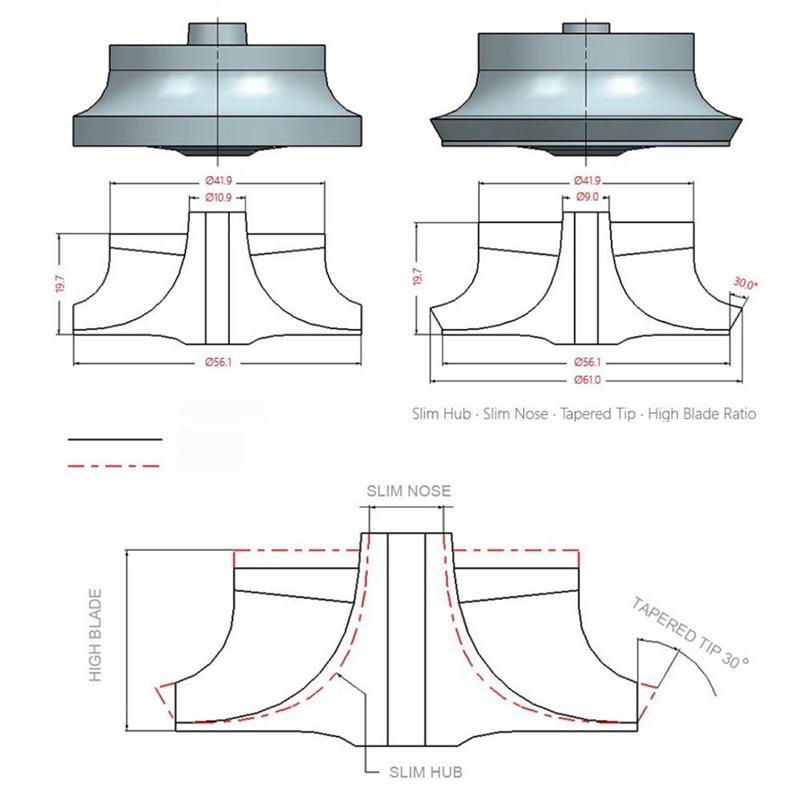

- Extend tapered tip exducer OD: 62.46mm

- Tip height: 4.55mm

- Super back height: 1.70mm

- Overall height: 27.65mm

- Bore size: 5.08mm

- Racing or Non-racing: Racing

- Trailing angle : 60 Degree

- Bore type: Through

- Fit compressor housing : Custom housing

- Cutback: 2.0mm

- Splitter height angle: 0.0

- Rotation: Forward

- Splitter height:

ITEM SITUATION

- Brand New

- Maximum boost 5 bar / 70 Psi

- Point Milling ,Performance Design

BALANCE

- Balanced By SCHENCK Germany

- Ready to competition

MATERIAL

- Forged Aluminum

SUPPLIER

-kinugawa turbo

NOTE

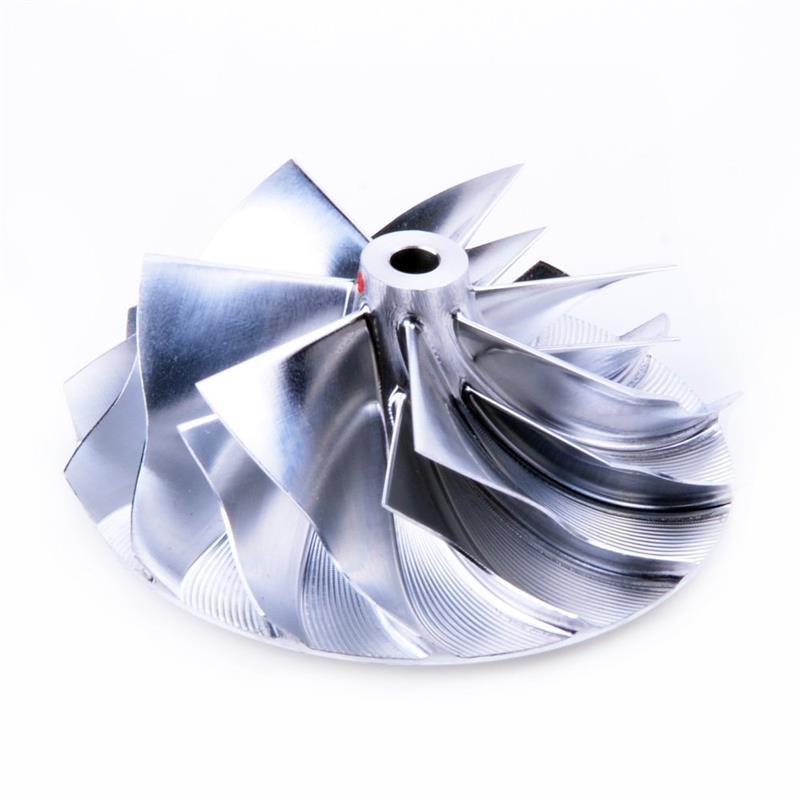

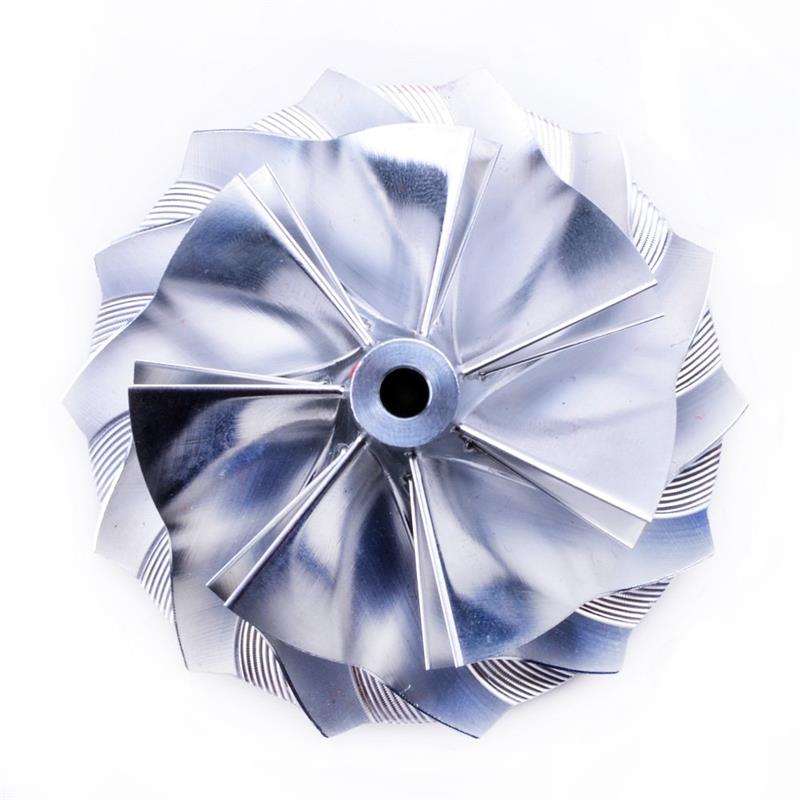

- The point milling wheel has more aerodynamics to it,

  as the tool path is not limited by one pass, the small

  ridges in the blades are the actual tool paths.
