P/N.
- 405-9901D-620
Item Name

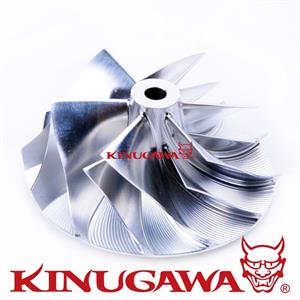

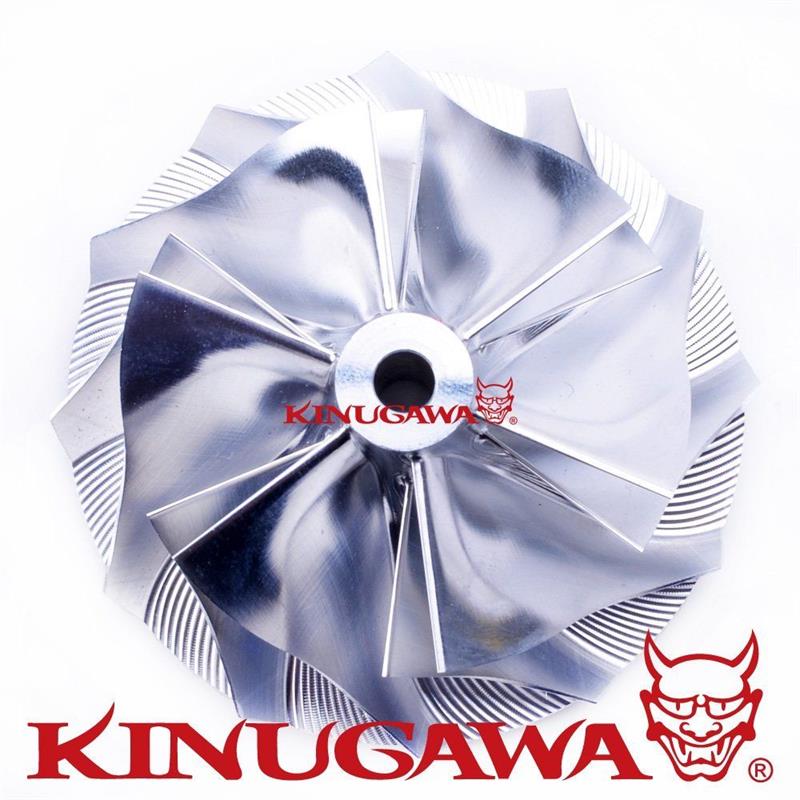

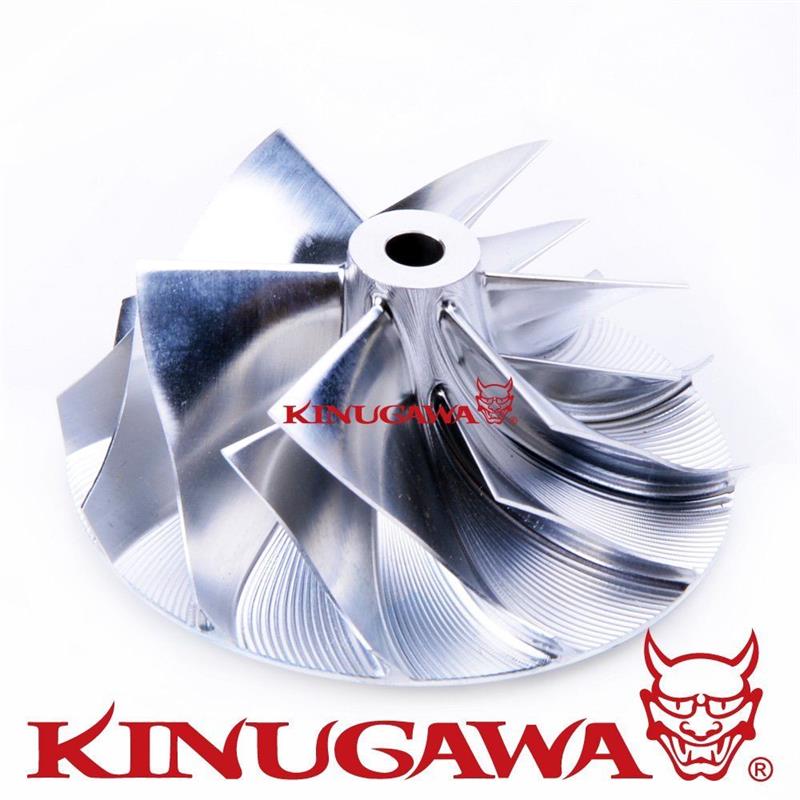

- Kinugawa Turbo Billet Compressor Wheel Mitsubishi TD05H 20G Forward (52.56mm / 68.01mm) 6+6 (Standard Type without Extended Tip)
Situation
- Brand New
- Balanced By SCHENCK MBRS 110 and Ready to competition
- Maximum boost 5 bar / 70 Psi
Application
- Replaces OE CW P/N: 49179-43400 Forward
- Applied to engine/vehicle: Mitsubishi Fuso Truck & Bus
- Suitable for Turbo/Chra or Upgrade for: 49179-00260/EVO

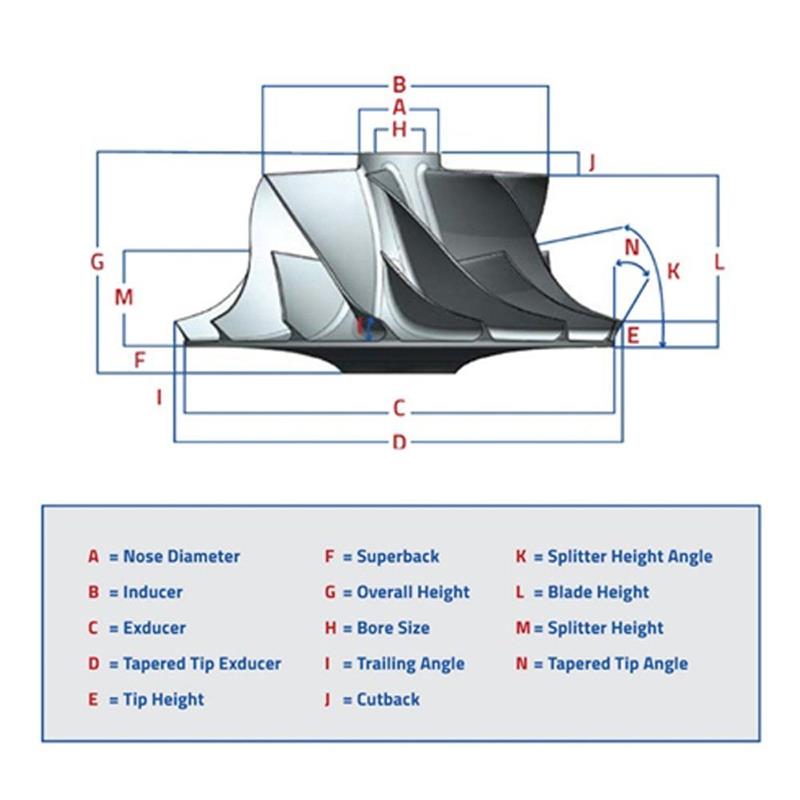

Wheel Spec
- Nose Dia: 13.50 mm
- Inducer Dia. : 52.56 mm
- Exducer Dia. : 68.01 mm
- Extend Tapered Tip Exducer Dia. : No Extend Tip
- Tip Height: 6.03 mm
- Super Back Height: 2.90 mm
- Overall Height: 31.50 mm
- Bore Size : 6.50 mm
- Racing or Non-racing : Racing
- STD or customs size :STD size
- Blade : 6+6
- Trailing angle : 60 Degree
- Bore Type : Through
- Fits OE Comp Hsg : Fit OE Comp Hsg
- Cutback : 0.0
- Rotation : Forward
Material
- Forged Aluminum
Supplier
- kinugawa
Warranty
- One Year
