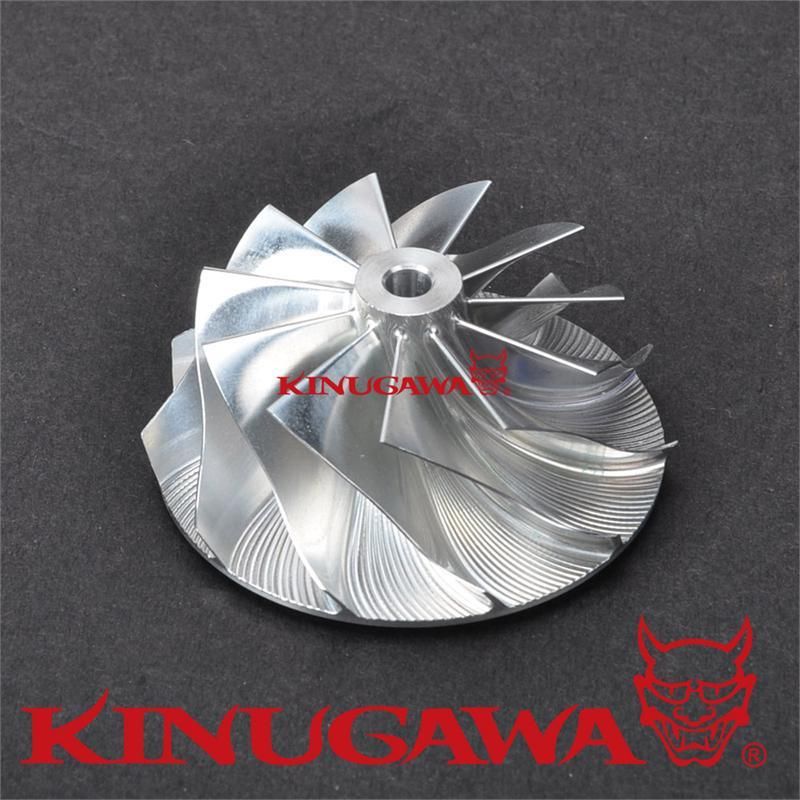

Turbo Billet Compressor Wheel Garrett GT3582R 3540 61.3/82mm/56 Trim/11+0 Blade

Product Information

P/N.

405-99013-561

Item Name

Kinugawa Garrett GT3582R GT3582 Turbo Billet Compressor Wheel 61.33 / 82 mm Trim 56 / 11+0 Blade (HKS GT3540)

Application

Replace wheel number: 451644-0005

Fit CHRA: 706451-0005

Fit Turbo # : 815113-0001, 714568-0001, 714568-0002, 714568-0003, 815113-0002, 714568-0007, 714568-0008, 714568-0009, 714568-0010,  714568-0011, 714568-0012,

Product

Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 61.33 mm

Exducer Dia. : 82.00 mm

Trim: 56

Extend Tapered Tip Exducer dia : 85.61 mm

Tip Height: 6.65 mm

Super Back Height: 2.35 mm

Bore: 6.35 mm

Blade : 11+0

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

- We can customize billet compressor wheel, Please contact us if you need it.

- We can combine shipping for all items and will send invoice when we receive all of your order.
