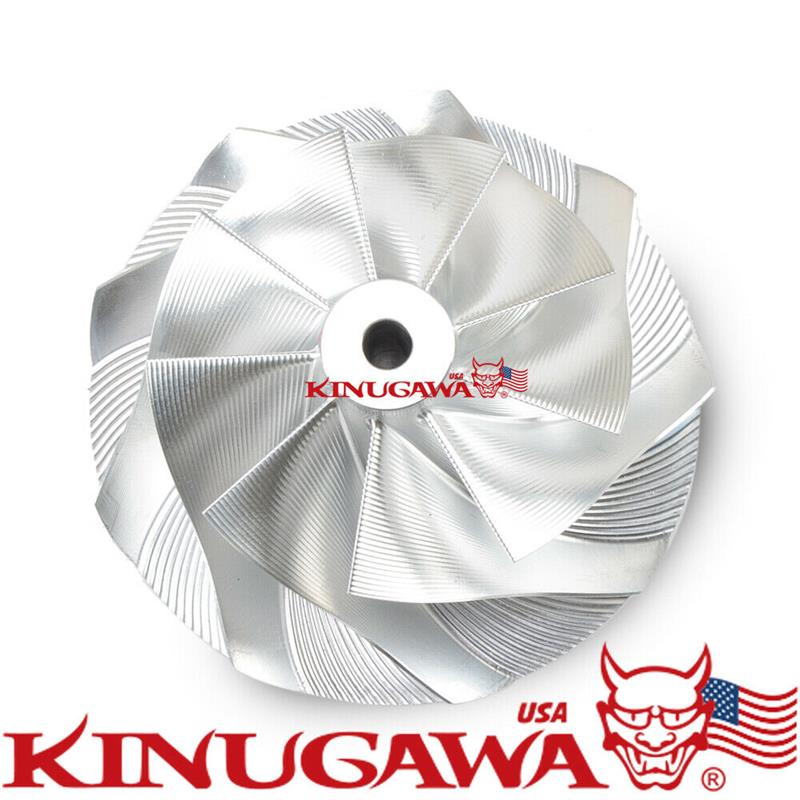

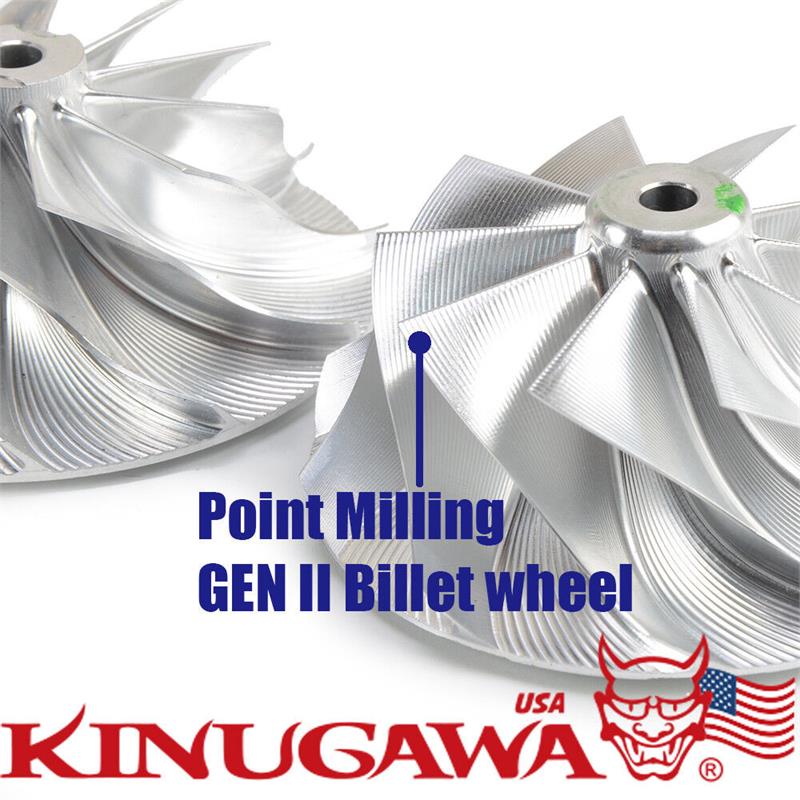

Point Milling Billet GEN2 Compressor Wheel For Garret GT3076R GTX3076R 58/76mm

Product Information

P/N.

405-80022-862

Item Name

Billet Compressor Wheel Garrett GTX3582R GEN2 10Blade Point Milling

Application

- Garrett GEN2 GTX3076R

- 856801-5027S / 851154-5001S / 856801-5026S /

856801-5025S / 856801-5039S / 856801-5038S /

856801-5037S

- It can't fit GEN 1 GTX3076R

Product

Situation

-       Brand New

-       30% lighter than genuine cast wheel.

-       Offer extra 30% airflow than stock cast wheel.

-      Maximum boost 5 bar / 70 Psi

Balance

Balanced on Schenck Germany

Ready to work.

Wheel Size

- Nose Dia : 18.85 mm

- Inducer Dia : 58.23 mm

- Exducer Dia : 76.43 mm

- Extend Tapered Tip Exducer Dia : 81.78 mm

- Tip Height : 5.64 mm

- Super Back Height : 2.18 mm

- Overall Height : 35.6 mm

- Bore Size : 6.00 mm

- Blade : 9+0

- Trailing angle : 45

- Bore Type : Through

- Rotation : Forward

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel,

Contact us if you need it.
