Turbo Billet Compressor Wheel HOLSET HX35 KOMATSU 6BT / 6BTA (53.88/81.3mm) 11+0

Product Information

P/N.

405-99013-633

Item Name

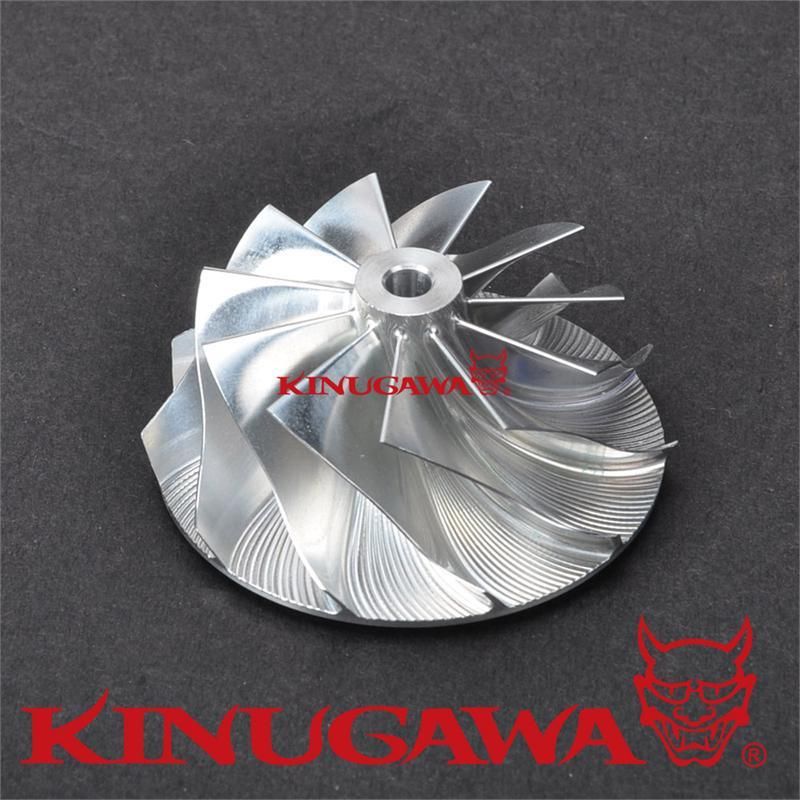

Kinugawa Holset HX35 Turbo Billet Compressor Wheel 53.88 / 81.30 mm Trim 44 / 11+0 Blade

Application

Replace wheel number: 3537168

Fit CHRA:

Fit Turbo # : 3539699, 3539698, 3539700, 3590032, 6735-81-8021, 6735-81-8301, 6735-81-8041, 3804877

Product

Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 53.88mm

Exducer Dia. : 81.30mm

Trim: 44

Extend Tapered Tip Exducer dia : No extend tip

Tip Height: 5.78 mm

Super Back Height: 5.01 mm

Bore: 7.00 mm

Blade : 11+0

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

- We can customize billet compressor wheel, Please contact us if you need it.

- We can combine shipping for all items and will send invoice when we receive all of your order.
