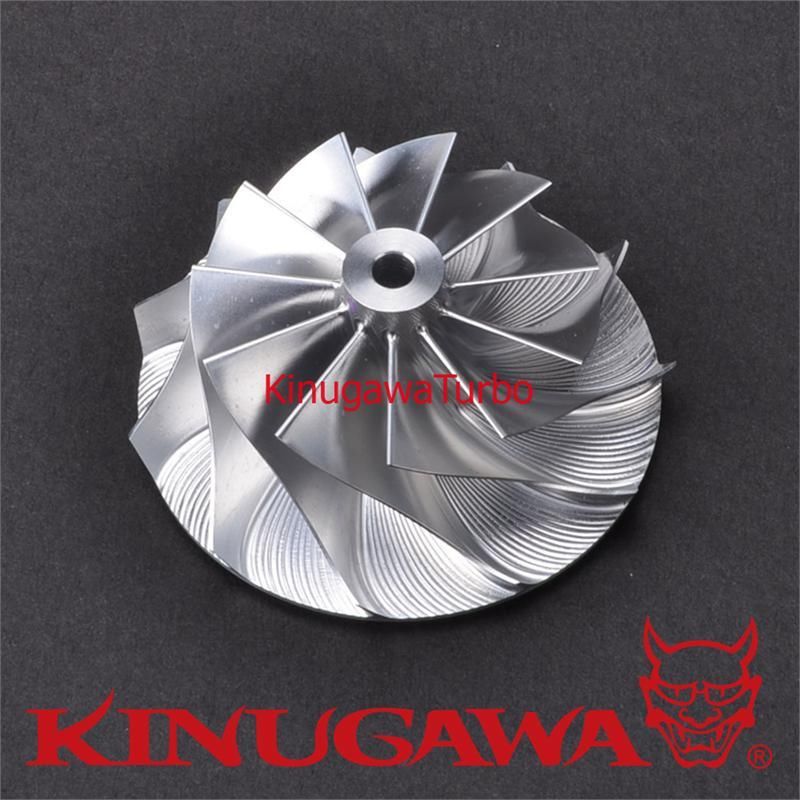

Turbo Billet Compressor Wheel TOYOTA 1HD-FTE CT12B HDJ100 (45.9/64.9 mm) 11+0

Product Information

P/N.

405-99012-613

Item Name

Kinugawa TOYOTA 1HD-FTE 4.2L HDJ100 CT12B Land Cruiser Turbo Billet Compressor Wheel 45.90 / 64.89 mm Trim 50 / 11+0 Blade

Application

Replace wheel number: 17291-17040

Fit CHRA: 17202-17040

Fit Turbo # : 17201-17040

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 45.90 mm

Exducer Dia. : 64.89 mm

Trim: 50

Extend Tapered Tip Exducer dia : 68.74 mm (Upgrade Type)

Tip Height: 4.78 mm

Super Back Height: 1.85 mm

Bore: 5.70 mm

Blade : 11+0

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

Please check the wheel spec you need before ordering this wheel.

We can customize billet compressor wheel, Please contact us if you need it.

We can combine shipping for all items and will send invoice when we receive all of your order.
