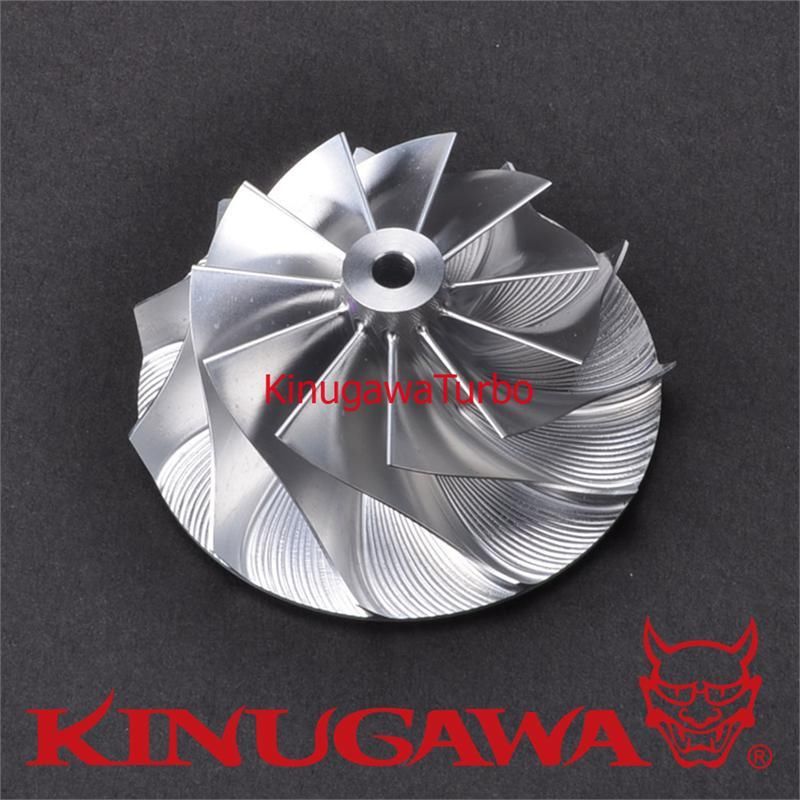

Turbo Billet Compressor Wheel TOYOTA 7M-GTE Supra CT26 (45.8/64.9 mm) 11+0 Blade

Product Information

P/N.

405-99012-612

Item Name

Kinugawa TOYOTA 7M-GTE / 7MGTE 3L MA70 SUPRA 17201-42020 CT26 Turbo Billet Compressor Wheel 45.82 / 64.89 mm Trim 50 / 11+0 Blade

Application

Replace wheel number: 17291-42020

Fit CHRA: 17202-42060

Fit Turbo # : 17201-42020, 17201-74010, 17201-74030, 17201-74040, 17201-74060

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 45.82 mm

Exducer Dia. : 64.89 mm

Trim: 50

Extend Tapered Tip Exducer dia : 68.66 mm (Upgrade Wheel)

Tip Height: 4.70 mm

Super Back Height: 1.37 mm (Recessed Super Back)

Bore: 6.50 mm

Blade : 11+0 (Stock 6+6 Blade)

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.

We can combine shipping for all items and will send invoice when we receive all of your order.
