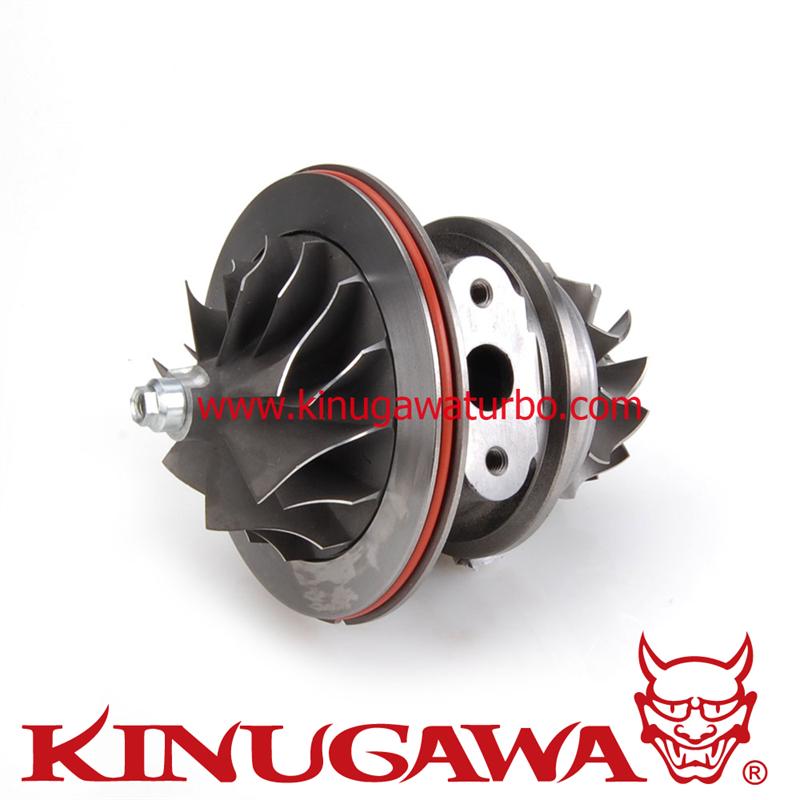

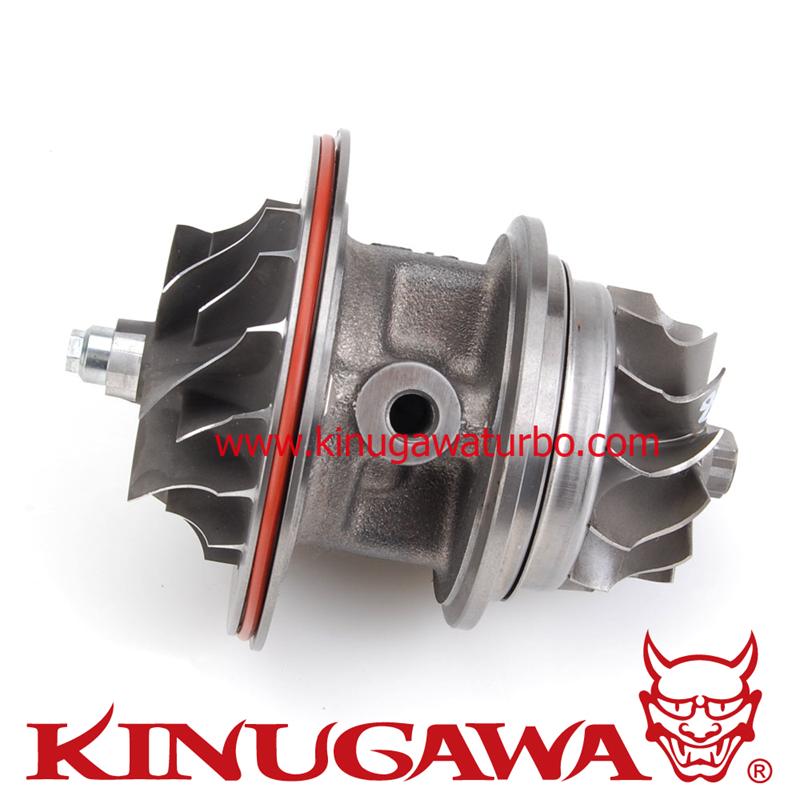

Turbo Cartridge CHRA Oil-Cooled TD06H-16M CAT S6K E320 upgrade billet wheel
|
Item Number: 333-02102-117
* Whole number only
|
|
| Application |
- TE06H-16M / TD06H-16M turbo / For 49179-xxxxx Turbo
- This CHRA can NOT fit 49185-0xxxx Turbo
- CAT S6K CAT E320B Turbo / 49179-02230 / 49179-02340 …
|
| Wheel dimension |
Compressor Wheel : 48 / 68 mm ( 7 x 2 Blades)
Turbine Wheel : 58.8 / 67.2 mm ( TD06H / 11 Blades ) |
| Thrust bearing kit |
360 Deg Kamak Performance Thrust Bearing Kit |
| Cooling system |
Oil Cooling System |
| Note |
- This CHRA was balanced and ran 180,000 on Schenck 110 VSR machine to make sure it is in good condition.
- CHRA is ready to work.
- This turbo can NOT fit 49185-xxxxx turbo.
|
|
|
|
|
