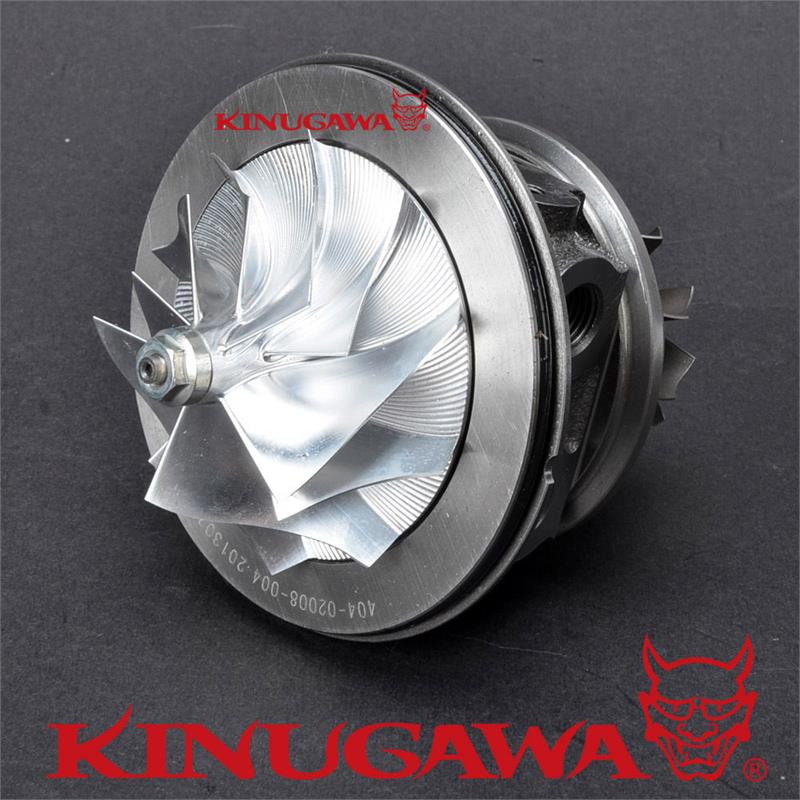

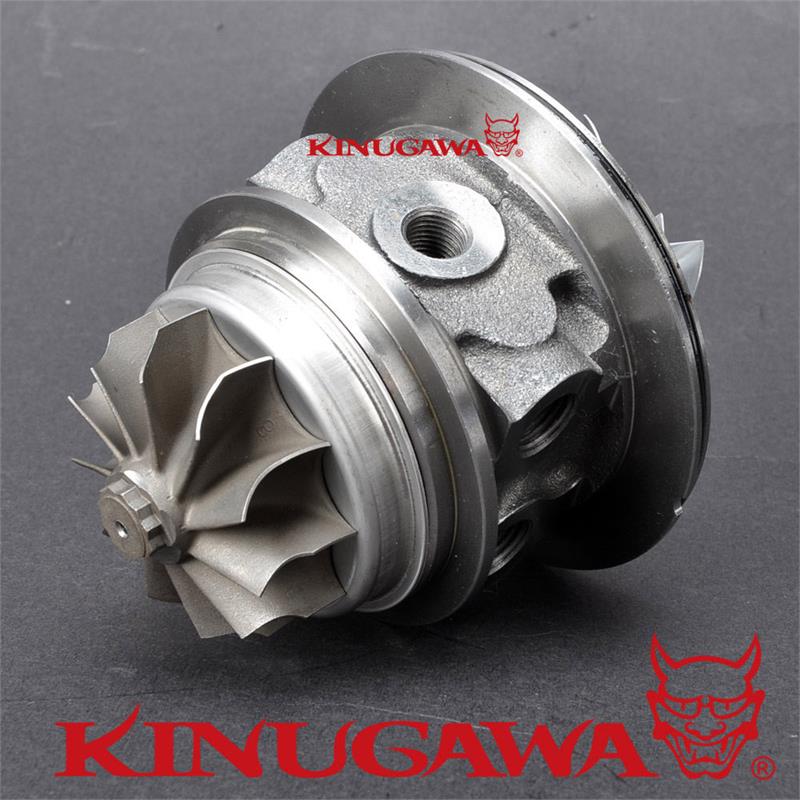

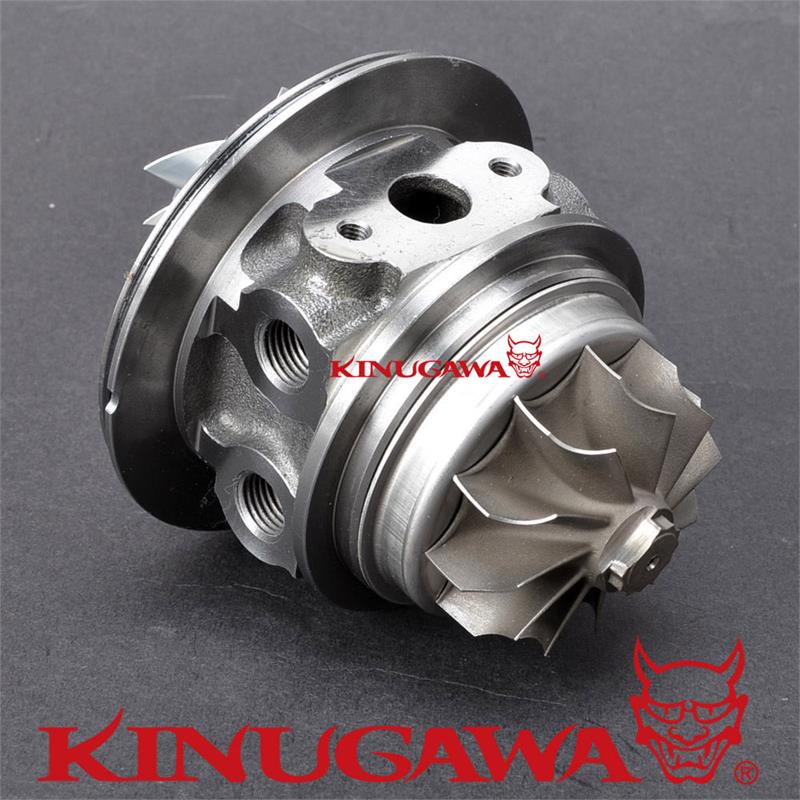

Kinugawa Turbo Cartridge CHRA TD06H-25G w/ Billet Wheel Oil & Water-Cooled
Product Options
| Turbine wheel: |
|
* Whole number only
|
|
|
Kinugawa TD06H-25G Oil Water-Cooled Turbo Cartridge CHRA
with Billet Wheel
|
|
P/N
|
333-02102-124
|
|
Item Name
|
Kinugawa TD06H-25G Turbo Cartridge CHRA
|
|
Application
|
- Kinugawa TD06H-25G Turbo
|
|
Compressor
Wheel Spec
|
60.5 / 78 mm (Inducer / Exducer Diameter /25G Billet Wheel)
|
|
Turbine Wheel
Spec
|
58.8 / 67.2 mm ( Inconel / 11 blades / Inducer / Exducer Diameter
|
|
Product Situation
|
- Brand New in Box.
- Balanced on SCHENCK MBRS 110 and ready to work.
|
|
Thrust Bearing
System
|
KAMAK Performance Thrust Bearing system
|
|
Cooling System
|
Oil and Water-cooled system
|
|
Qty
|
1 x CHRA as picture.
|
|
Oil & Water
Hole Spec
|
- Oil Feed : M12x1.25mm
- Water Hole : M14x1.5mm (Four holes threaded)
|
|
Made By
|
Kinugawa Turbo
|
|
Warranty
|
One Year
|
|
|
|
|
