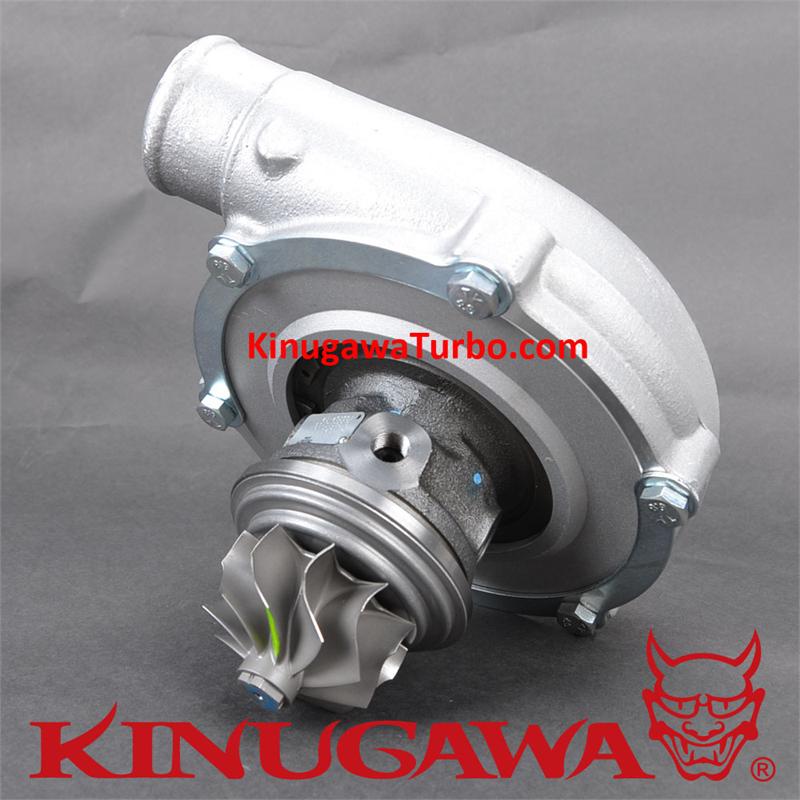

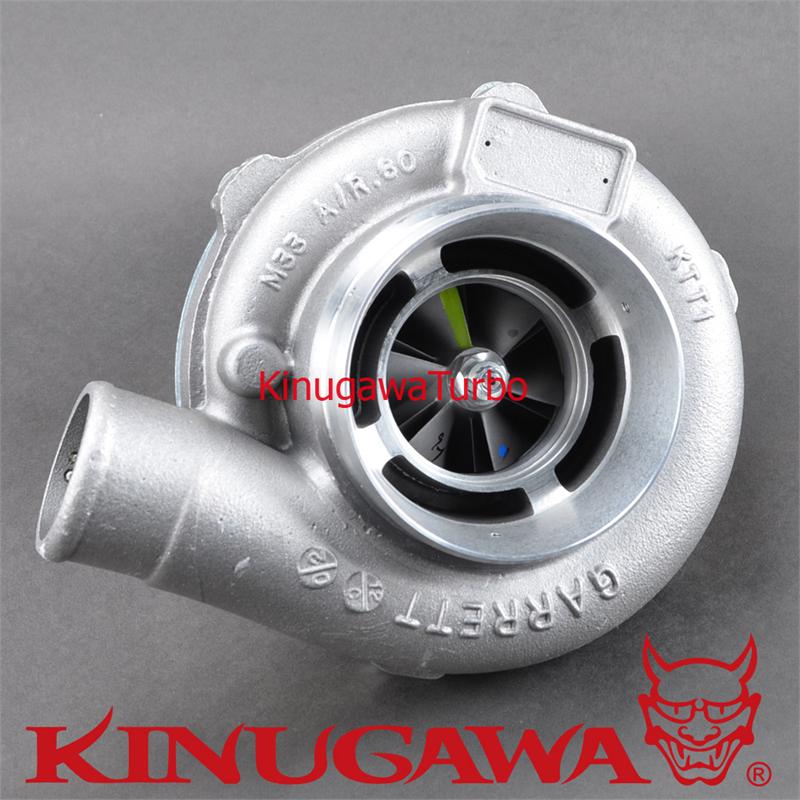

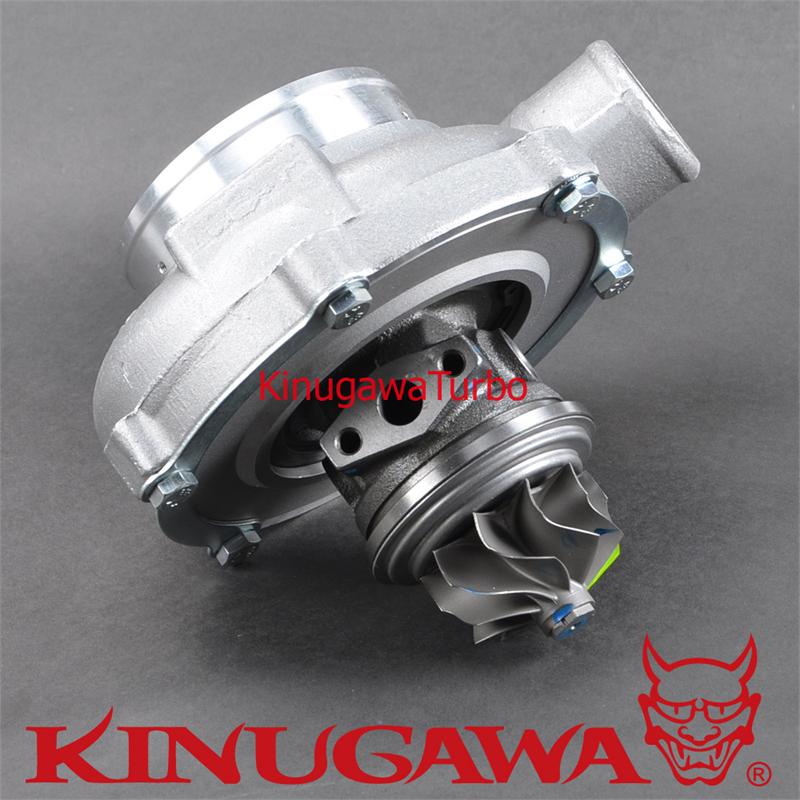

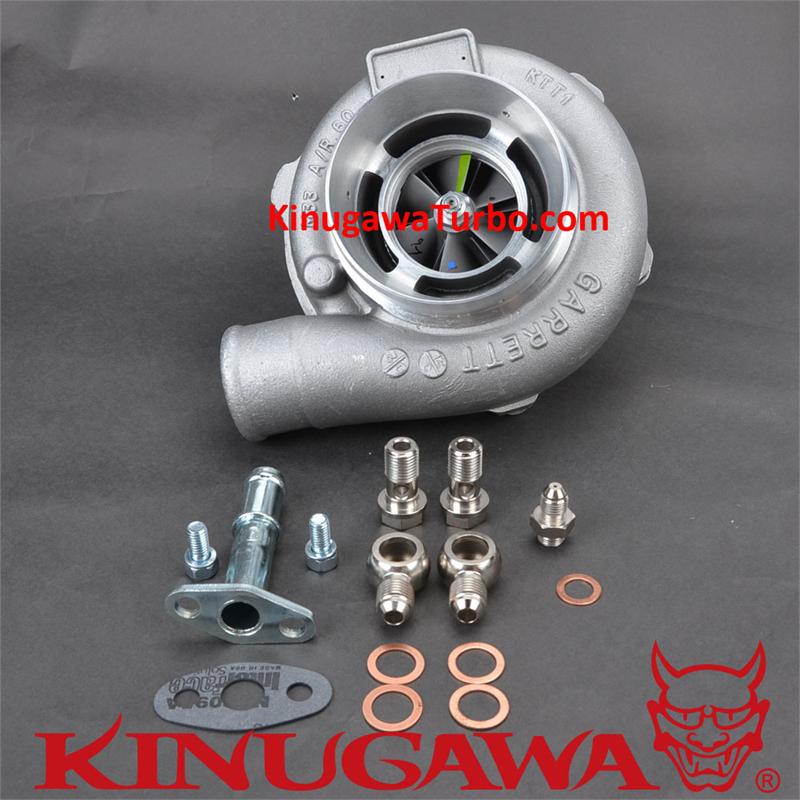

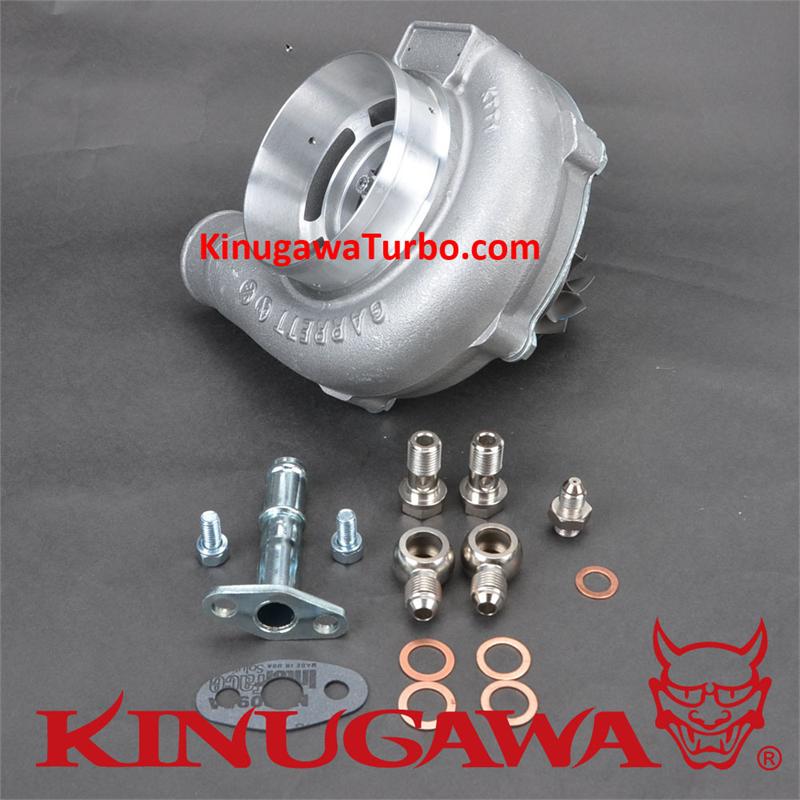

Turbo Cartridge CHRA w/ Cover Garrett GT3076R GT3037 GT3037S-56T / 700382-0012
|
Item Number: 403-03001-005
Manufacturer: Garrett
Manufacturer Part No: 700382-0012
* Whole number only
|
|
| Application |
- Replace all Garrett GT3076R / GT3037S Turbo
- Upgrade turbocharger for GT3071R non-wastegated ball-bearing turbocharger; turbine housing flanges are outline interchangeable.
- T3 turbine inlet flange.
- Ideal for medium displacement engines making up to 525 hp
- Turbine housing option available
- Note: The 700382-0012 GT3076R is a customizable Garrett ball bearing GT turbo that is packaged without the turbine housing.
(It includes a CHRA and compressor housing.)
|
| Garrett P/N |
700382-0012 |
| Wheel dimension |
- Compressor wheel : 57 / 76.2 mm / Trim 56
- Turbine Wheel: 60mm / Trim 84 |
| Compressor housing |
- A/R 60
- Cover Inlet OD: 4”
- Cover Outlet OD: 2” |
| Cooling system |
Ball bearing / Water Cooled |
| Note |
|
|
|
|
|
