Turbocharger Kinugawa 4" TD06H-25G 12cm T3 Flange / Garrett GT3582R Killer 550HP

Kinugawa TD06H-25G Turbocharger with 12cm T3 Turbine Housing

Item Name

Kinugawa TD06H-25G Turbocharger with 4” TD07 Cover and T3 / 12cm Turbine Housing

P/N.

Application

-       Universal Type

-       2500~3000cc

Wheel spec

 -       Compressor wheel: 60.5/78 mm

 -       Turbine wheel: 58.8/67.2 mm (TD06H / 11 Blades Inconel Wheel (TD06H4)

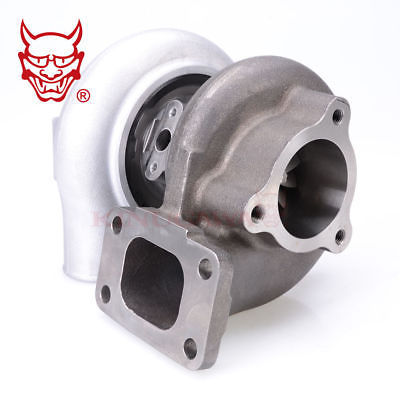

Turbine Housing

AR

-       12cm / AR89 T3 Flanged turbine housing

Bearing Type

-       Journal Bearing

-       360 Deg Performance Thrust Bearing Kit

Cooling Type

-       Water-Cooled

Max Hp

-       450~650 BHP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

Kit Includes

1 x 4AN Oil feed line kit ( 70cm Braided Line )

1 x Oil Return Pipe Kit

2 x 24cm 6AN Water Line Kit

1 x Turbine Inlet Gasket

1 x Turbine Outlet Gasket

1 x V-Band dump pipe adapter.

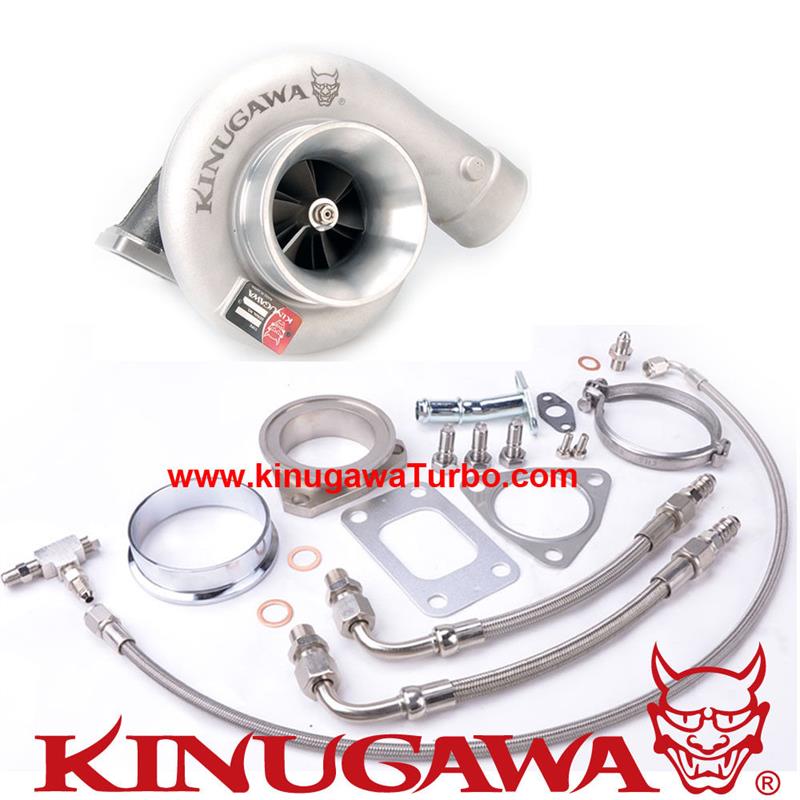

( Everything shown on picture is included)

Made By

Kinugawa Turbo

Warranty

One Year
