Turbocharger Kinugawa T04S T04R 84mm AR70/AR1.0 750HP T4 Twin Scroll Flange

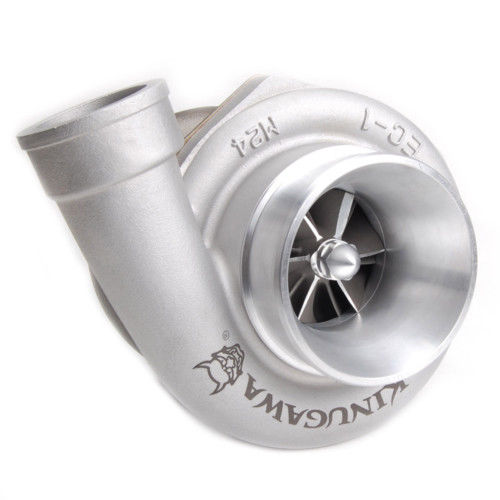

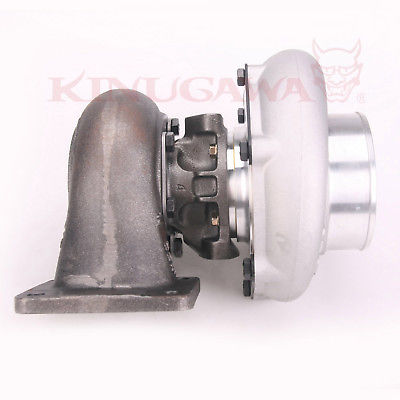

Kinugawa T04S / T04R Turbocharger

(w/ 84mm compressor wheel and AR1.00 Turbine Housing)

Item Name

Kinugawa T04S/T04R Turbocharger with 84mm compressor wheel and AR1.0Turbine Housing

P/N.

 0100-704-001 (301-02001-145)

Application

Universal Type

2500~3500cc

Wheel spec

Compressor wheel: 66.5/84 mm

Turbine wheel:  64.6/74.2mm (T4 P trim Wheel)

Turbine Housing

AR

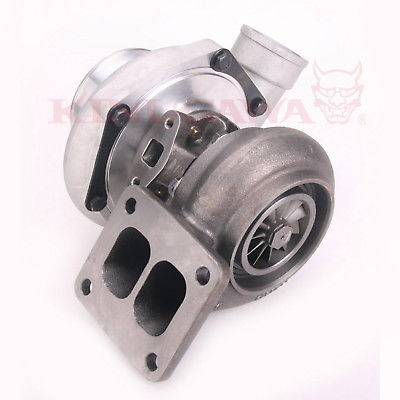

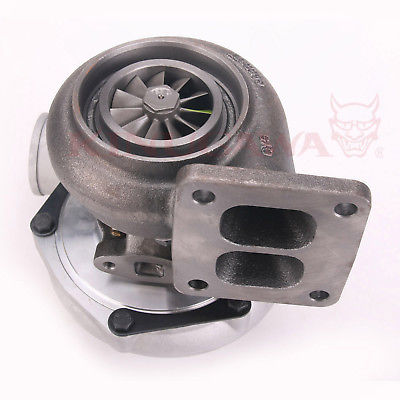

 A/R 1.0 T4 Flange

Bearing Type

Journal Bearing

KAMAK Performance Thrust Bearing Kit

Cooling Type

Oil-Cooled

Max Hp

550~750 BHP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

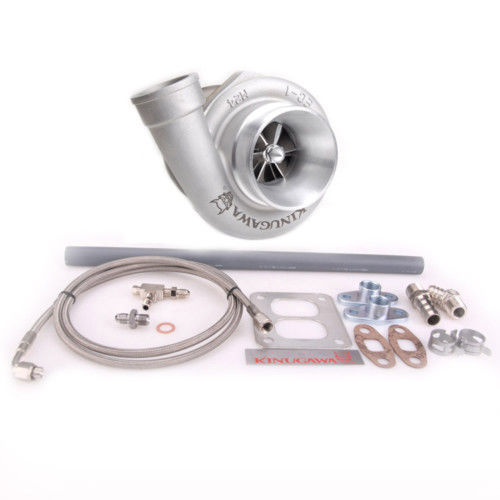

Kit Includes

1 x Kinugawa T04R Turbocharger

1 x Oil feed line kit ( 100cm Braided Line )

1 x Oil Return Hose Kit ( 45cm)

1 x T4 Turbine Inlet Gasket

Made By

Kinugawa Turbo

Warranty

One Year
