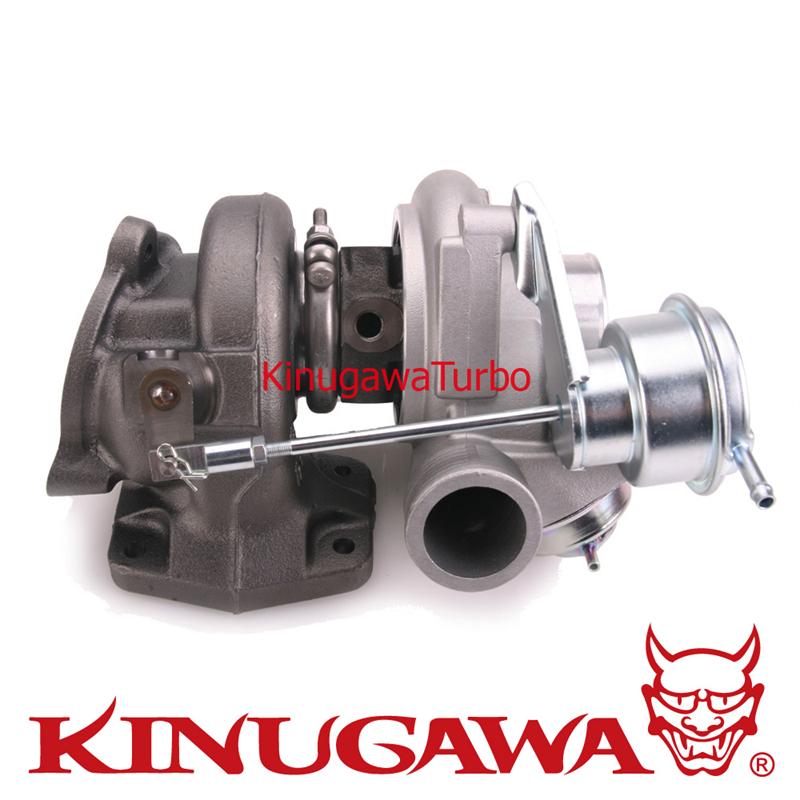

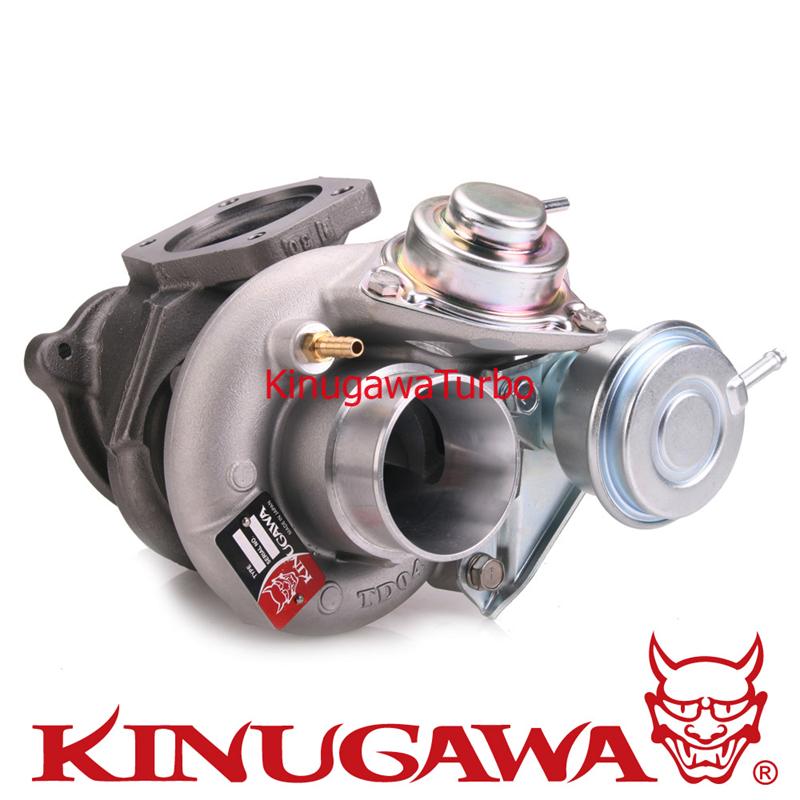

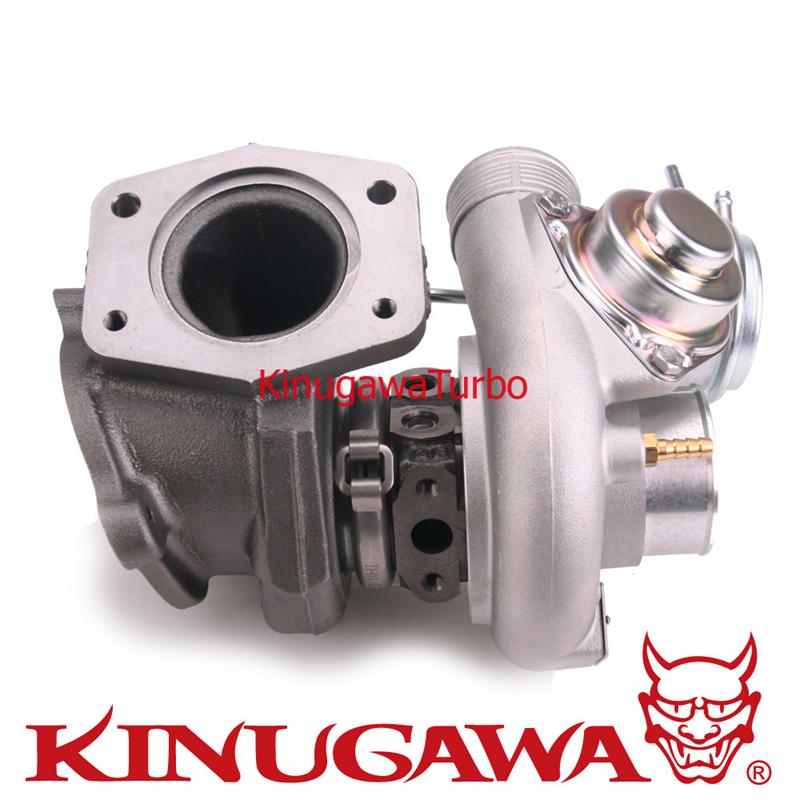

Kinugawa Billet Turbocharger VOLVO S60 S70 V70R TD04HL-20T w/ 7cm angle Hsg / 350HP
|
MSRP: $799.00
Price: $779.00
You Save: $20.00
Item Number: 321-02054-009
* Whole number only
|
|
| Application |
Upgrade VOLVO 850 / S70 TD04HL-20T-7 with 7cm Angle Turbine Housing |
| Bearing Type |
Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger. |
| Cooling System |
Water cooled |
| Compressor Wheel |
47.04mm / 58mm(20T Wheel) |
| Turbine Wheel |
45.6mm / 52mm(TD04HL 11 Blades High Flow) |
| Turbine Housing |
- Nozzle Area : 7 cm^2 Angle Turbine Outlet
- Turbine Inlet : T3
|
| Wastegate Actuator |
- 1.0 bar / 14.7 Psi actuator will go with this turbo.
- 0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available, please contact us if you need it. |
| Condition |
- CHRA was upgraded with larger 20T compressor wheel and Complete CHRA was balanced on Schenck 110
VSR by Kinugawa Turbo and ready to boost.
- Upgraded turbo comes with Kinugawa 7cm angled turbine housing.
- Brand New and ready to work.
|
| Warranty |
1 year warranty |
|
