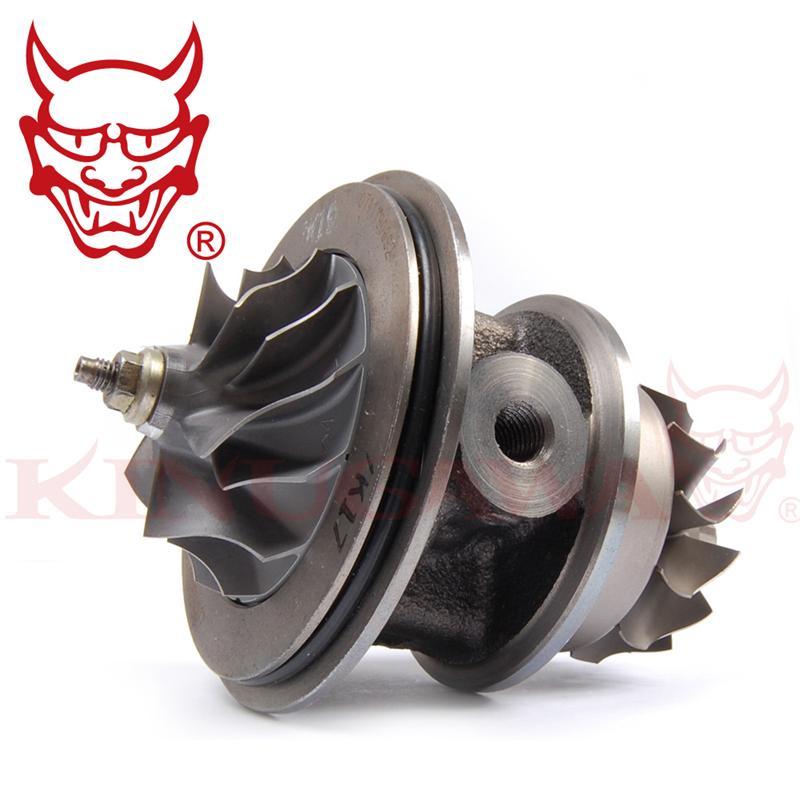

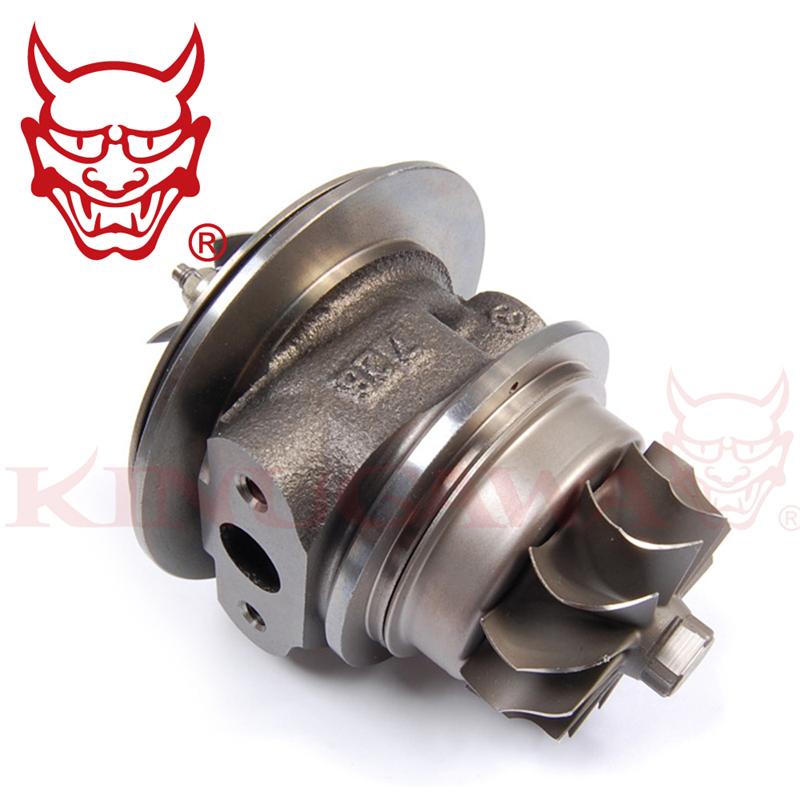

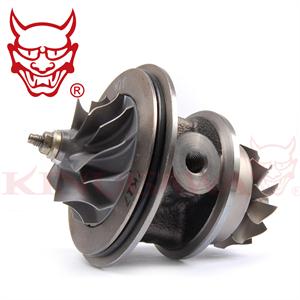

Turbo Cartridge CHRA Oil Cooled TD04 12T 4M40T Pajero

Price: From $549.00 to $599.00

Manufacturer: Kinugawa

Cast / Billet Wheel:

Quantity:

Application	- 4M40T Pajero / Delica 2.8T - Mitsubishi 4M40T / 2.8L Pajero, Delica, Shogun - replace 49377-03033, 49377-03050, 49377-03040. 49377-03033, 49135-03110, 49135-03112 chra
Bearing Type	Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger.
Cooling System	Oil cooled
Compressor Wheel	37.8 mm / 49 mm (Inducer / Exducer)
Turbine Wheel	40.0 mm/ 47.1 mm (Inducer / Exducer)
Turbo Boost Limit	2.8 Bar (Based on Performance bearing kit with larger thrust bearing )
Condition	Brand New / 150,000 RPM Balanced on Schenck 110 MBRS
Warranty	1 year
