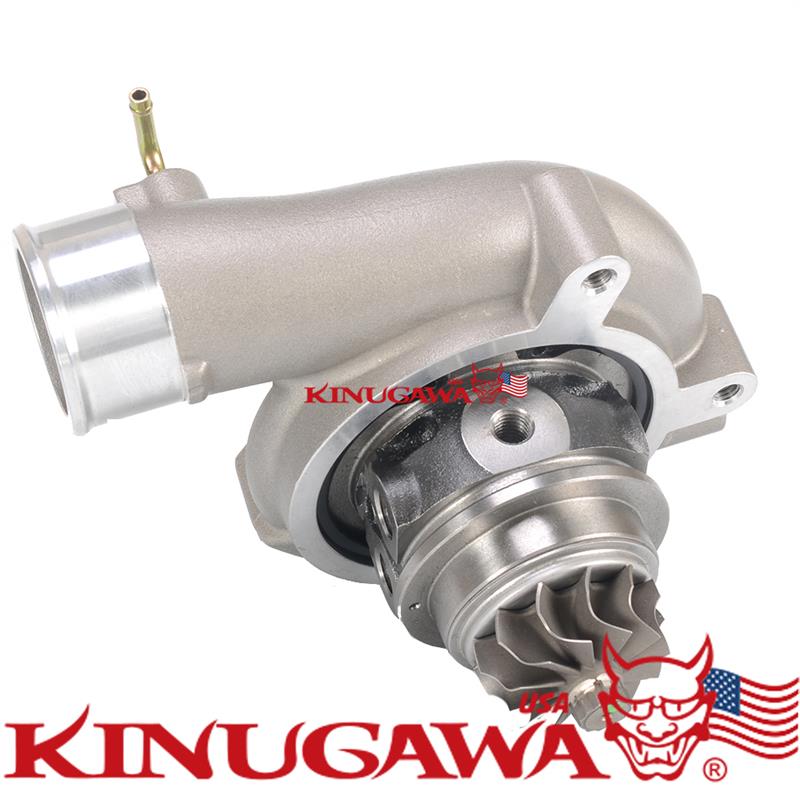

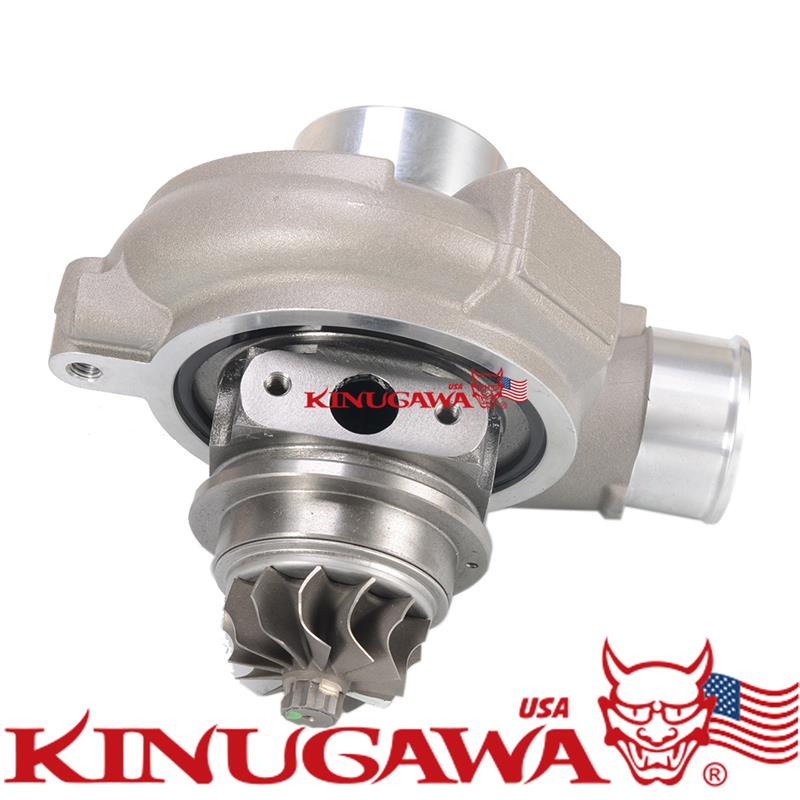

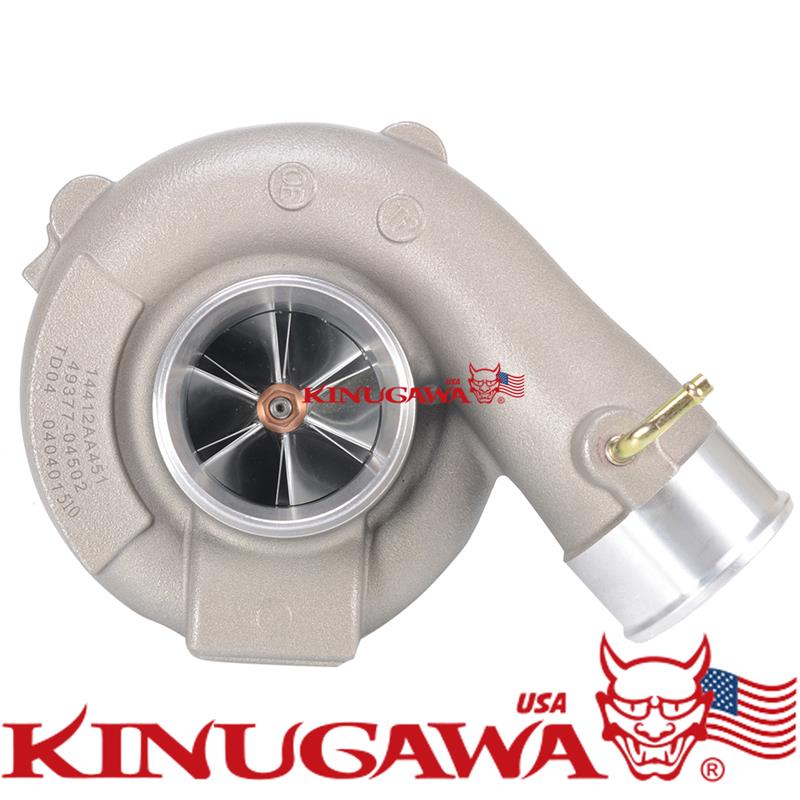

Turbo Upgraded Cartridge Kit CHRA SUBARU WRX Forester TD04L-19T
Product Options
| Turbine wheel: |
|
* Whole number only
|
|
| Application |
SUBARU IMPREZA WRX TD04L Turbo
49377-04100, 49377-04180, 49377-04190, 49377-04200, 49377-04280, 49377-04290, 49377-04300, 49377-04302, 49377-04363, 49377-04370, 49377-04372 |
| MHI P/N |
49377-08120 |
| Bearing Type |
Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger. |
| Cooling System |
Water cooled (Two coolant hole on same side as picture) |
| Compressor Wheel |
46 mm / 58 mm (Inducer / Exducer) 19T 6+6 Billet wheel |
| Turbine Wheel |
47 mm/ 41.3 mm (Inducer / Exducer) |
| Turbo Boost Limit |
2.8 Bar (Based on Performance bearing kit with larger thrust bearing ) |
| Condition |
Brand New / 150,000 RPM Balanced on Schenck 110 MBRS |
| Warranty |
1 year |
|
|
|
|
|
|
